IDEC SmartRelay Manual
97
Programming IDEC SmartRelay
3.8 Configuring additional functions for IDEC SmartRelay

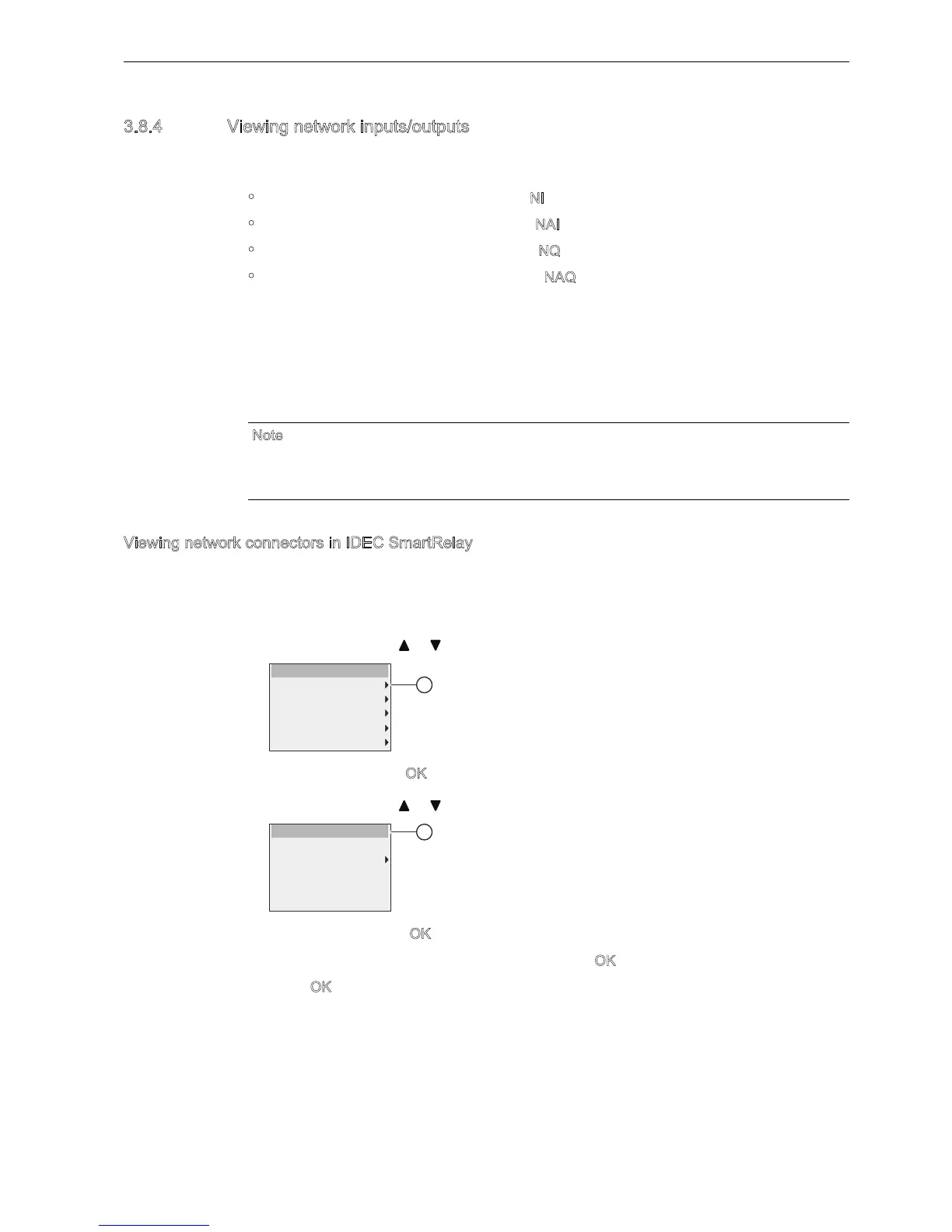

3.8.4 Viewing network inputs/outputs
indLGC provides you with the following connectors representing network input/output
blocks:
Network digital inputs (identified with an NI in IDEC SmartRelay)
Network analog inputs (identified with an NAI in IDEC SmartRelay)
Network digital outputs (identified with an N in IDEC SmartRelay)
Network analog outputs (identified with an NA in IDEC SmartRelay)
Network digital or analog inputs can connect with the inputs of function blocks. Network digital
or analog outputs can connect with the outputs of function blocks.
If your circuit program contains a network digital/analog input, IDEC SmartRelay can read a
digital/analog value from another circuit program in a networked device. If your circuit
program contains a network digital/analog output, IDEC SmartRelay can write its digital/
analog output value to another networked IDEC SmartRelay in slave mode.
Viewing network connectors in IDEC SmartRelay
Consider a circuit program where a network digital input NI1 connects to the function block
B5. B5 is connected to 4. To view this network input, follow these steps:
1. Switch IDEC SmartRelay to programming mode.
2. Select
: Press or
3. Confirm
: Press O
4. Select
: Press or
5. Confirm
: Press O
(If reuired, enter your password and confirm with O.)
6. Press O
in the circuit program window, and the cursor now appears as a solid suare.
N
ote
ou can only configure these network connectors for your circuit program from indLGC. If
your circuit program in IDEC SmartRelay contains a network connector, you can not make
any edits to the circuit program from the IDEC SmartRelay onboard display.
1HWZRUN
'LDJQRVWLFV
