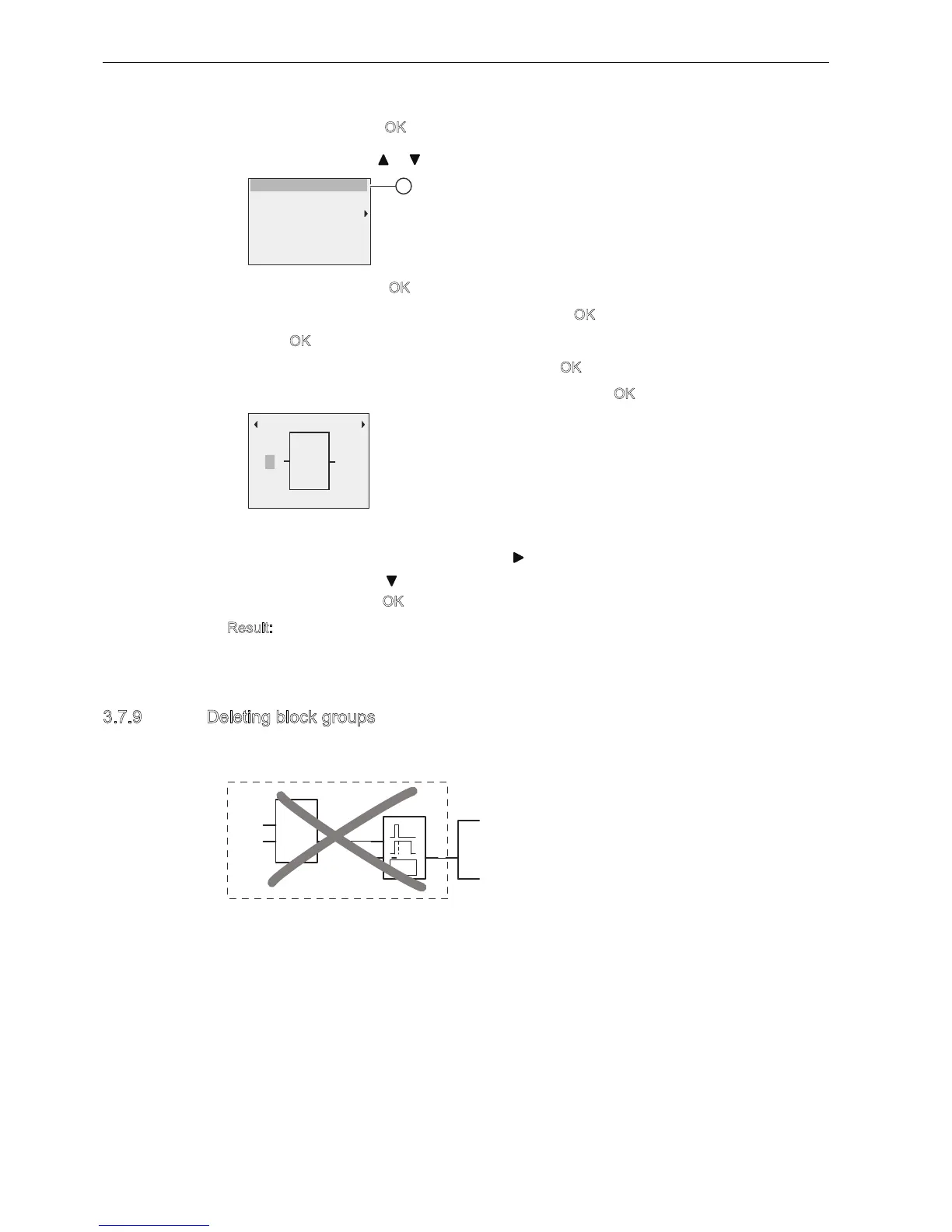

Programming IDEC SmartRelay
3.7 riting and starting the circuit program
IDEC SmartRelay Manual
84
3. Confirm : Press O
4. Select
: Press or
5. Confirm
: Press O
(If reuired, enter your password and confirm with O.)
6. Press O
in the circuit program window, and the cursor now appears as a solid suare.
7. Move the cursor to the 1 block and then press O
.
8. Move the cursor to B2, the input of 1, and confirm with O
.
9. Now replace block B2 with block B1 at output 1.
Move the cursor to the 2 in B2: Press
Select B1: Press
Apply B1: Press O
Result: IDEC SmartRelay deletes block B2 from the circuit and connects the output of B1
directly to output 1.
3.7.9 Deleting block groups
Consider the case where you want to delete blocks B1 and B2 from the second circuit
program example (refer to the Second circuit program (Page 78) topic).
To delete these two blocks from that program, follow these steps:
