IDEC SmartRelay Manual
57
Programming IDEC SmartRelay
3.4 The four golden rules for operating IDEC SmartRelay

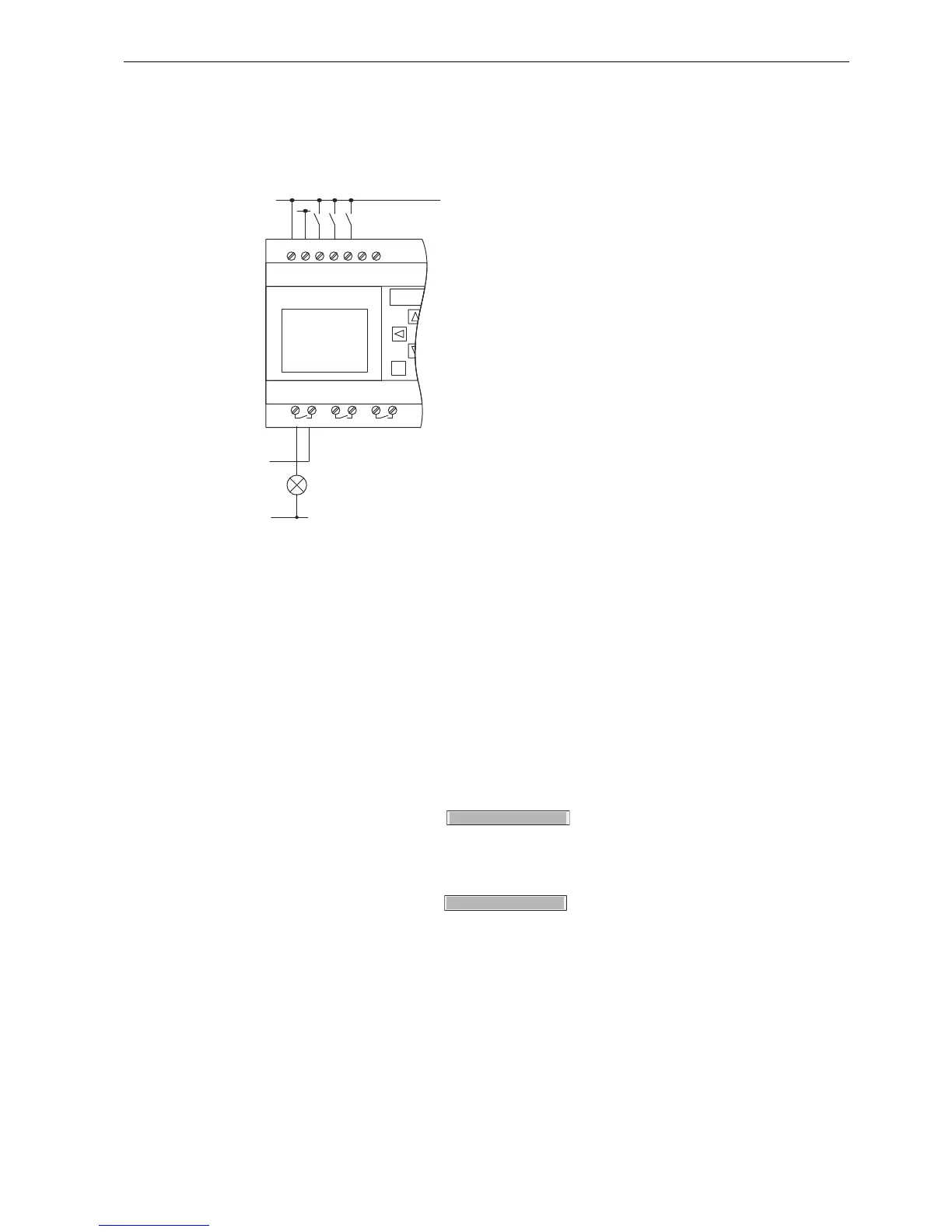

Wiring example
The following figure shows you the wiring, based on a 100-240 VAC/VDC version of IDEC
SmartRelay.
3.4 The four golden rules for operating IDEC SmartRelay
Rule 1: Changing the operating mode
• You create the circuit program in programming mode. After power is on, and when the
program is empty in IDEC SmartRelay, IDEC SmartRelay selects the programming mode
by default.
• You can edit timer and parameter values of an existing circuit program in both parameter
assignment mode and programming mode. During parameter assignment IDEC
SmartRelay is in RUN mode; that is, it continues executing the circuit program (see the
topic "Configuring IDEC SmartRelay (Page 253)"). To work in programming mode, you
need to terminate the circuit program.
• Select the menu command on the main menu to set RUN mode.
• When the system is in RUN mode, you can return to parameter assignment mode by
pressing the ESC key.
• When parameter assignment mode is open and you want to return to programming mode,
select the menu command from the parameter assignment menu to
set STOP mode.
For more details on operating modes, refer to the Appendix topic "IDEC SmartRelay menu
structure (Page 307)".
/ 1 , , , ,
4 4 4
/
1
6
6
6
/
1
2XWSXWZLULQJ
/RDG
,QSXWZLULQJ
