IDEC SmartRelay functions
4.4 Special functions list - SF
IDEC SmartRelay Manual
168
View in parameter assignment mode (example):

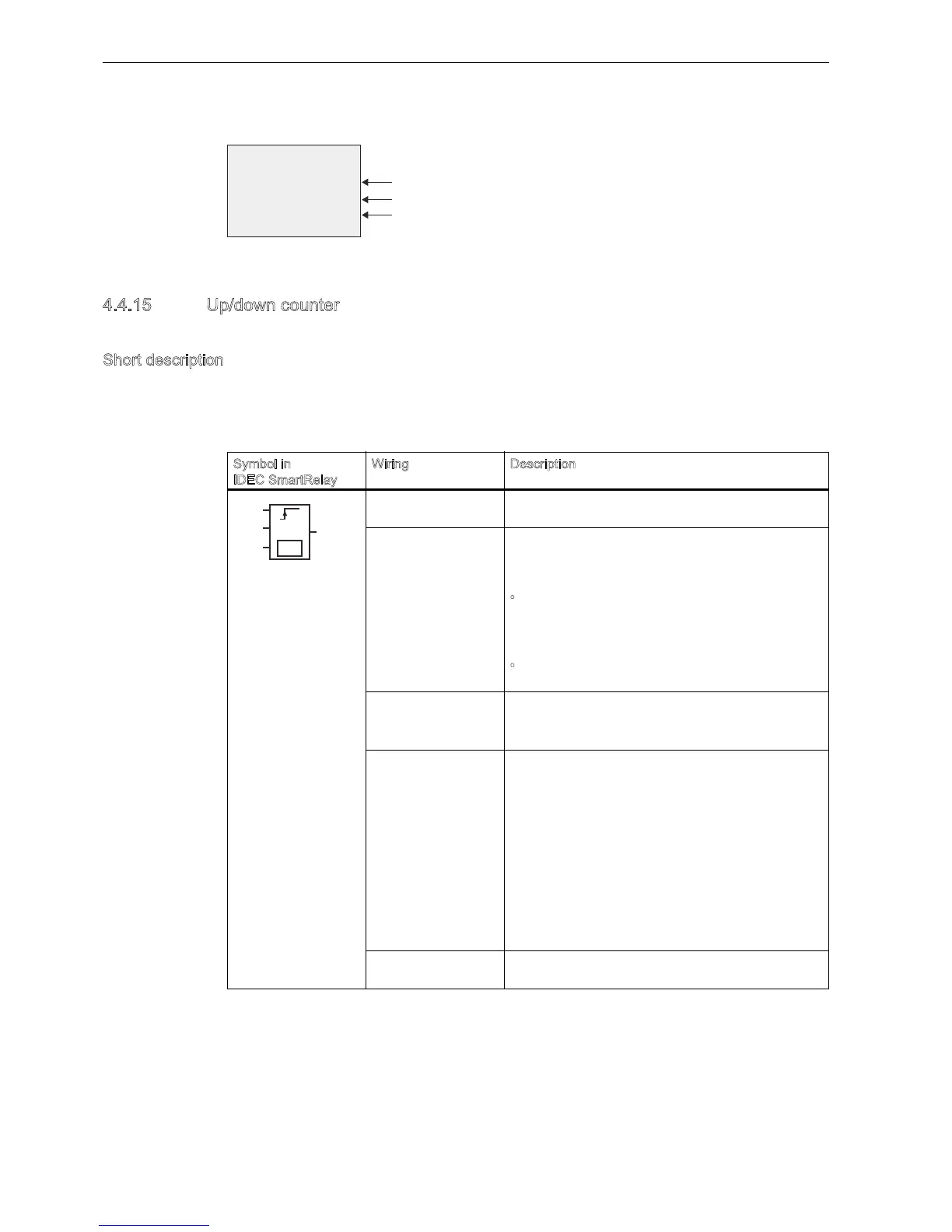

4.4.15 Up/down counter
Short description
An input pulse increments or decrements an internal value, depending on the parameter
setting. The output is set or reset when a configured threshold is reached. The direction of
count can be changed with a signal at input Dir.
Symbol in
IDEC SmartRelay
iring Description
Input R A signal at input R resets the internal count value to
zero.
Input Cnt The function counts the 0 to 1 transitions at input Cnt.
1 to 0 transitions are not counted.
ou can use the following as the input:
inputs I3, I4, I5, and I6 for fast counting (only
FL1F-H12RCE/B12RCE and FL1F-H12SCD):
max. 5kHz, if the fast input is directly connected to
the up/down counter function block
any other input or circuit component for counting
low freuency signals (typically 4Hz)
Input Dir ou set the direction of count at input Dir:
Dir 0: Count up
Dir 1: Count down
Parameter On: on threshold
Range of values:
0...999999
Off: off threshold
Range of values:
0...999999
StartVal: initial value from which to begin counting
either down or up.
Retentivity for internal counter value Cnt:
/ No retentivity
R The status is retentive.
Output is set or reset, depending on the current value at
Cnt and the set thresholds.
&XUUHQWHODSVHGWLPHUHFRUGHG
6WRSZDWFKSDXVHWLPH
$4YDOXH
%
7%
&XU
7
/DS7
2XW7
PV
4
5
&QW
'LU
3DU
8S'RZQ&RXQWHU
