Programming IDEC SmartRelay
3.7 riting and starting the circuit program
IDEC SmartRelay Manual
78

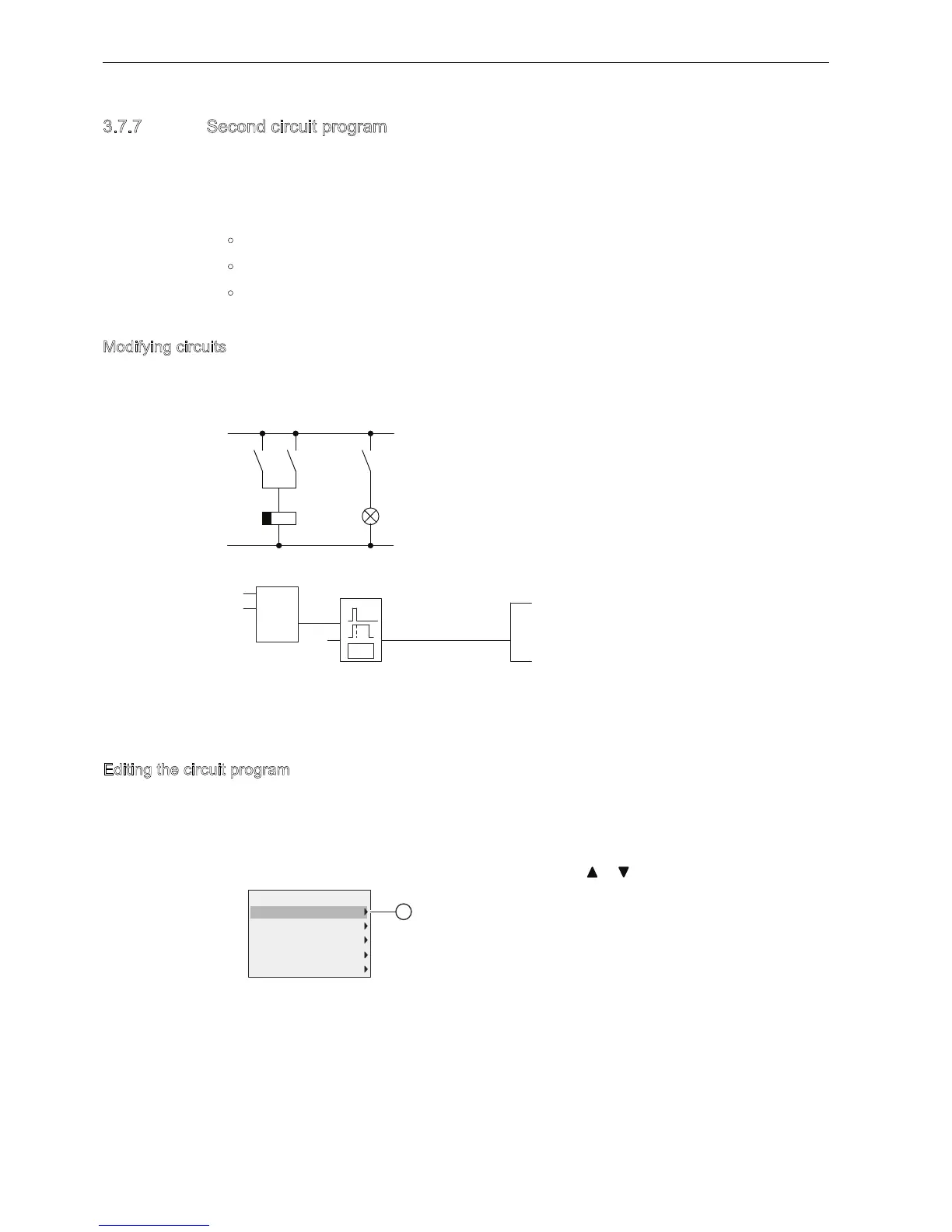

3.7.7 Second circuit program
Up to this point, you have successfully created your first circuit program, assigned it a name,
and optionally a program password. In this section you will learn how to modify existing circuit
programs and how to use the special functions.
Using this second circuit program, you will learn how to perform the following tasks:
Add a block to an existing circuit program
Select a block for a special function
Assign parameters
Modifying circuits
ou will use the first circuit program as a basis for the second, with some slight modifications.
First of all take a look at the circuit diagram for the second circuit program:
This is the circuit program layout in IDEC SmartRelay:
ou can see the OR block and the output relay 1 that you used in the first circuit program.
The only difference is the new off-delay block.
Editing the circuit program
Follow these steps to edit the circuit program:
1. Switch IDEC SmartRelay to programming mode. For additional details, see the topic The
four golden rules for operating IDEC SmartRelay (Page 57).
2. On the main menu, move the cursor to
: Press or
/
(
.66
1
.
<RXDOUHDG\NQRZWKHILUVWSDUWRIWKH
FLUFXLW6DQG6VZLWFKDUHOD\ZKLFK
LVWREHXVHGWRVZLWFKRQWKHORDG(
DQGWRVZLWFKRIIWKHORDGZLWKDGHOD\
RIPLQXWHV
25
