IDEC SmartRelay Manual
39
IDEC SmartRelay installation and wiring
2.3 Wiring IDEC SmartRelay
2.3.4 Connecting outputs
FL1F-H12RCA/B12RCA/H12RCC/B12RCC/H12RCE/B12RCE
The FL1F-H12RCA/B12RCA/H12RCC/B12RCC/H12RCE/B12RCE version includes relay
outputs. The potential of the relay contacts is isolated from the power supply and the inputs.
Requirements for relay outputs
You can connect various loads to the outputs; e.g., lamps, fluorescent lamps, motors,
contactor relays, etc. For information on the properties required for the loads connected to
FL1F-H12RCA/B12RCA/H12RCC/B12RCC/H12RCE/B12RCE, refer to the General technical
data (Page 283).
Connecting

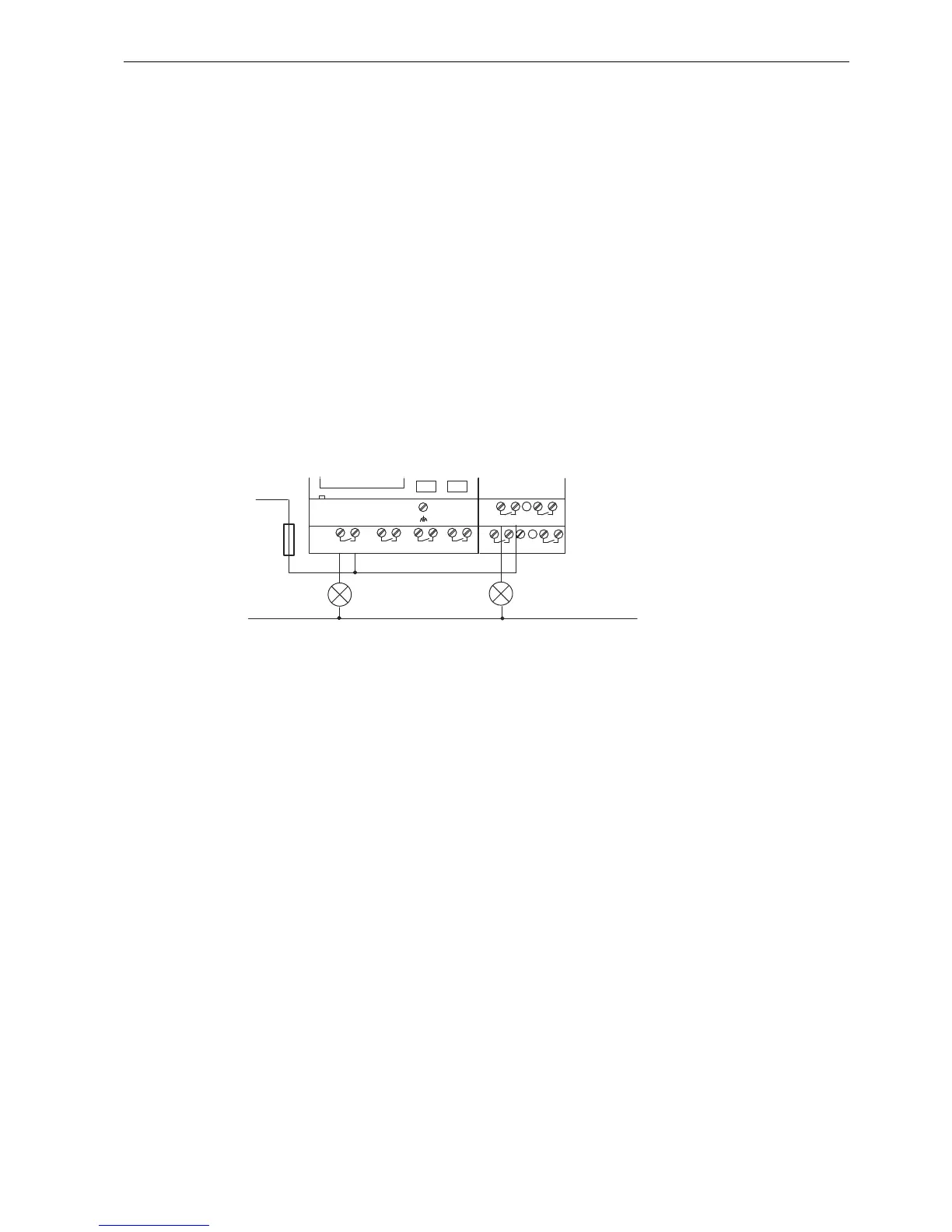

Connect the load to FL1F-H12RCA/B12RCA/H12RCC/B12RCC/H12RCE/B12RCE as shown
below:
