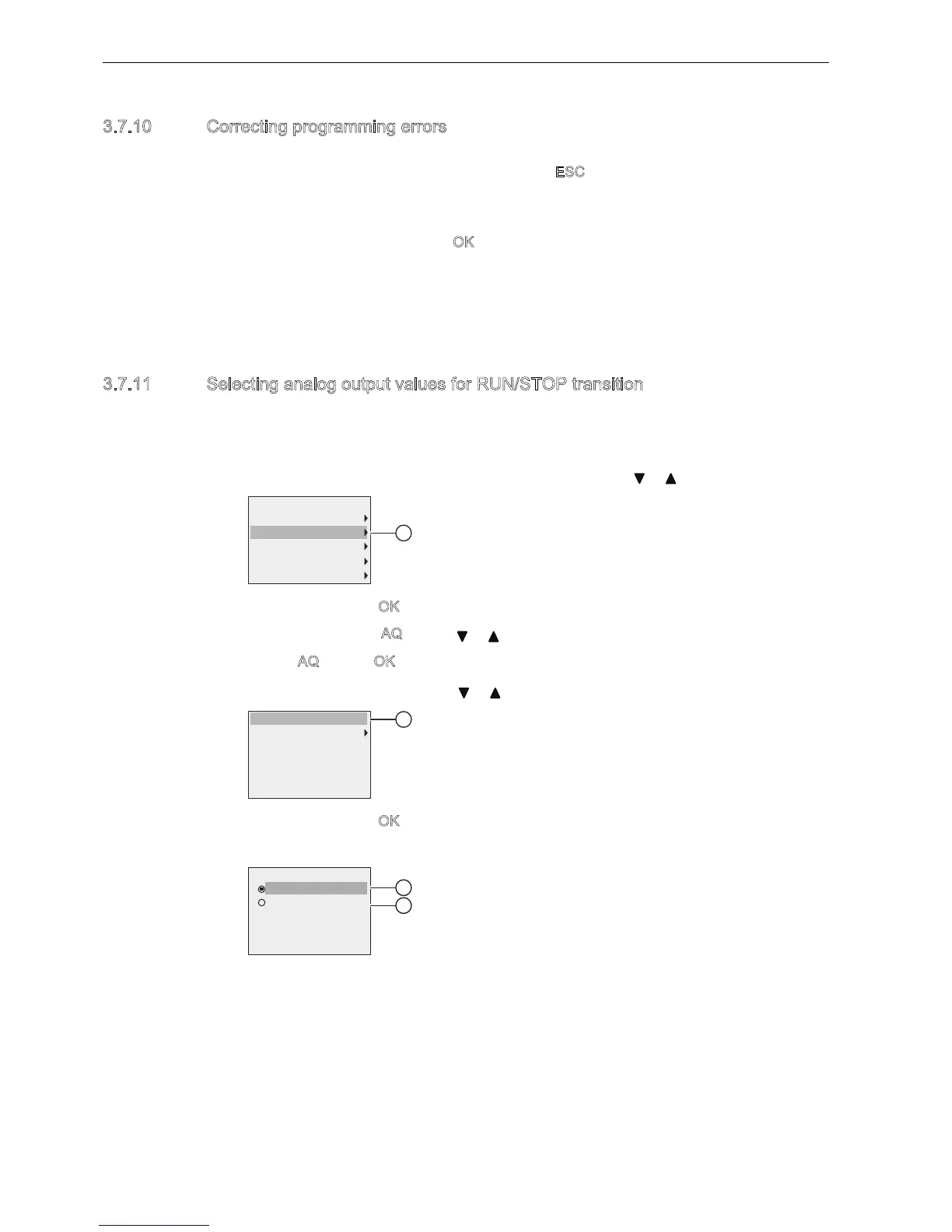

3.7.10 Correcting programming errors
ou can easily correct programming errors in IDEC SmartRelay. Providing that you are still in
editing mode, you can revert one step by pressing ESC. If you have already configured all
inputs, simply reconfigure the faulty input:
1. Move the cursor to the faulty position.
2. Change to editing mode: Press O
.
3. Enter the correct input circuit.
ou can only replace a block with a block that has exactly the same number of inputs. However,
you can delete the old block and then insert a new one. ou can choose any new block.
3.7.11 Selecting analog output values for RUN/STOP transition
ou can set the behavior of up to eight analog outputs when IDEC SmartRelay changes from
RUN mode to STOP mode. To set the behavior for analog outputs for a RUN-to-STOP transition,
follow these steps:
1. In the programming menu, move the cursor to
: Press or
2. Select
: Press O
3. Move the cursor to A: Press or
4. Select A: Press O
5. Move the cursor to
: Press or
6. Select
: Press O
IDEC SmartRelay shows the following display:
The circle with a dot before
above indicates the current setting for the analog output
channels.
1HWZRUN
'LDJQRVWLFV
