IDEC SmartRelay functions
4.4 Special functions list - SF
IDEC SmartRelay Manual
212

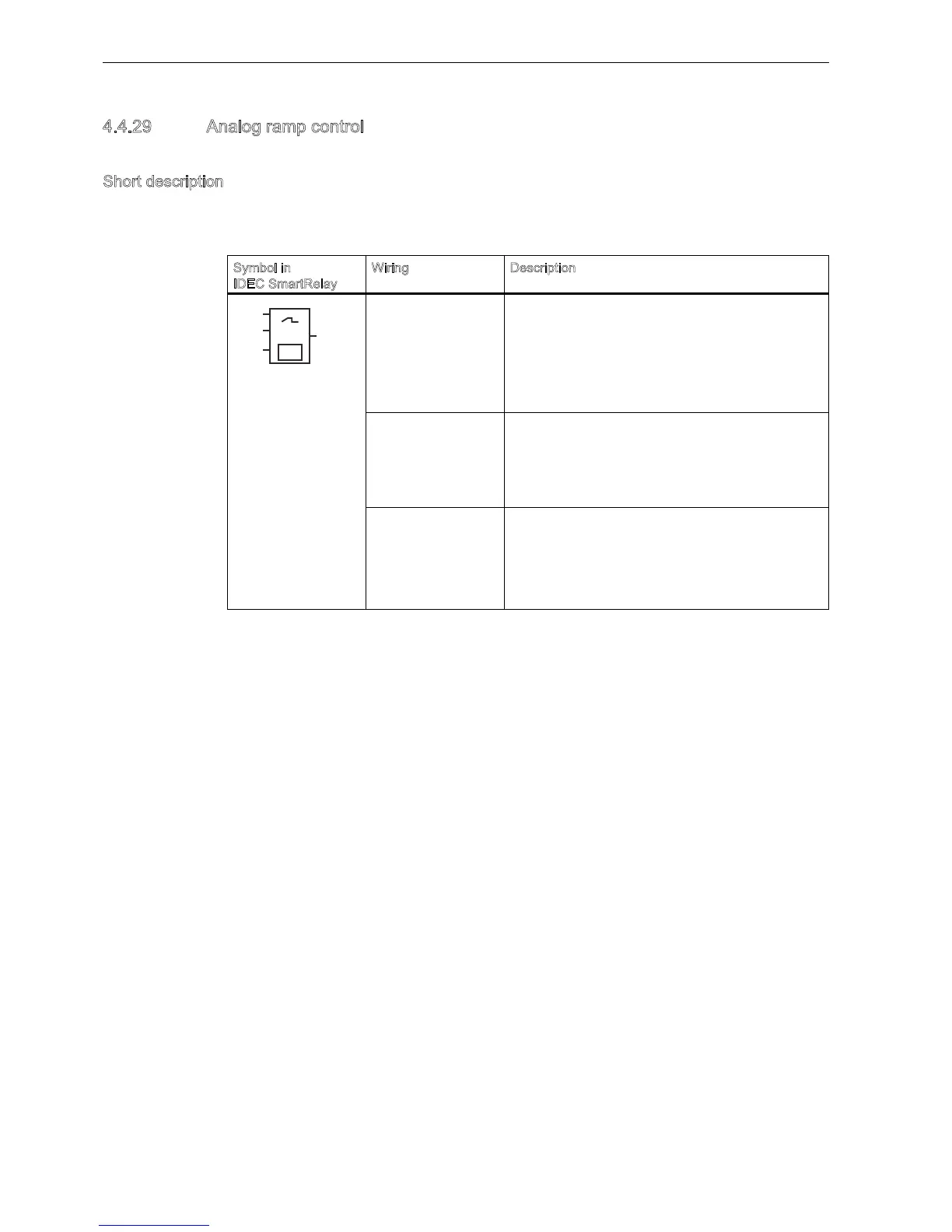

4.4.29 Analog ramp control
Short description
This function allows the output to be changed from the current level to the selected level at a
specified rate.
Symbol in
IDEC SmartRelay
iring Description
Input En A change in the status from 0 to 1 at input En (Enable)
applies the start/stop level (Offset B StSp) to the
output for 100 ms and starts the ramp operation to the
selected level.
A change in the status from 1 to 0 immediately sets
the current level to Offset B, which makes output A
eual to 0.
Input Sel SeI 0: level 1 is selected.
SeI 1: level 2 is selected.
A change in status of Sel causes the current level to
start changing to the selected level at the specified
rate.
Input St A change in the status from 0 to 1 at input St
(Decelerated Stop) causes the current level to
decrease at a constant rate until the start/stop level
(Offset B StSp) is reached. The start/stop level is
maintained for 100ms and then the current level is set
to Offset B, which makes output A eual to 0.
