IDEC SmartRelay Manual
169
IDEC SmartRelay functions
4.4 Special functions list - SF
Parameters On and Off
The actual value of another already-programmed function can provide the on threshold On
and the off threshold Off. You can use the actual values of the following functions:
• Analog comparator (Page 183)(actual value Ax – Ay)
• Analog trigger (Page 178) (actual value Ax)
• Analog amplifier (Page 191) (actual value Ax)
• Analog multiplexer (Page 209) (actual value AQ)
• Analog ramp control (Page 212) (actual value AQ)
• Analog Math (Page 224) (actual value AQ)
• PI controller (Page 216) (actual value AQ)
• Up/down counter (actual value Cnt)
• Analog filter (Page 229) (actual value AQ)
• Average value (Page 235) (actual value AQ)
• Max/Min (Page 231) (actual value AQ)
• On-delay (Page 132) (current time Ta)
• Off-delay (Page 136) (current time Ta)
• On-/off-delay (Page 138) (current time Ta)
• Retentive on-delay (Page 140) (current time Ta)
• Interval time-delay relay/Pulse output (Page 142) (current time Ta)
• Edge-triggered interval time-delay relay (Page 144) (current time Ta)
• Asynchronous pulse generator (Page 146) (current time Ta)
• Stairwell light switch (Page 150) (current time Ta)
• Dual-function switch (Page 152) (current time Ta)
• Stopwatch (Page 166) (actual value AQ)
• Frequency trigger (Page 175) (actual value Fre)
Select the required function by the block number.

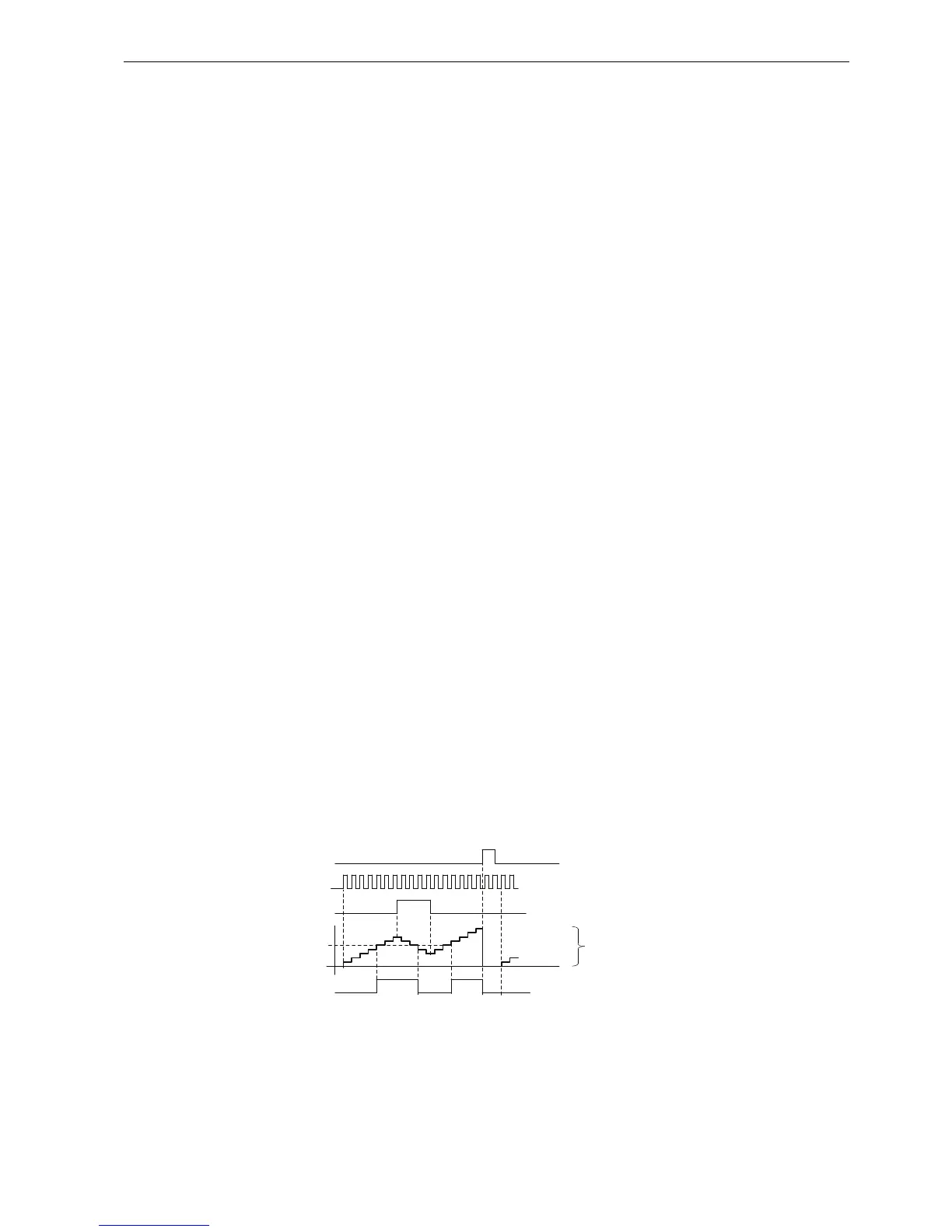

Timing diagram
4
5
,QWHUQDO
FRXQWYDOXH
&QW
6WDUW9DO
&QW
2Q 2II
'LU
