IDEC SmartRelay installation and wiring
2.2 Installing/removing IDEC SmartRelay
IDEC SmartRelay Manual
22
Removal
To remove IDEC SmartRelay if you have installed only one Base Module, follow these steps:
1. Insert a screwdriver into the eyelet at the bottom of the slide interlock and move the latch
downward.
2. Swing the Base Module off the DIN rail.

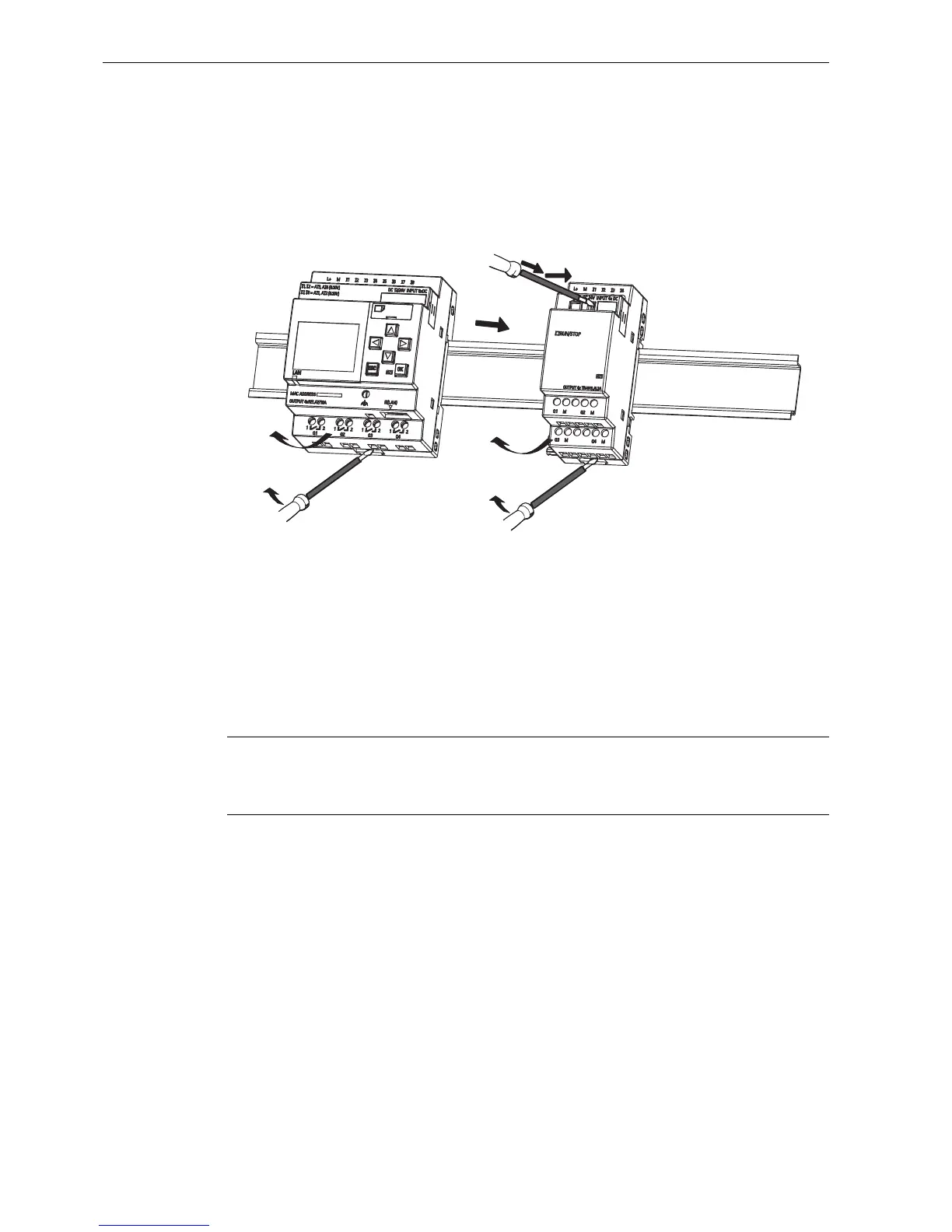

To remove IDEC SmartRelay if you have connected at least one expansion module to the
Base Module, follow these steps:
1. Using a screwdriver, push the integrated slide interlock to the right.
2. Slide the expansion module off towards the right.
3. Insert a screwdriver into the eyelet at the bottom of the slide interlock and lever it downward.
4. Swing the expansion module off the profile rail.
Repeat steps 1 to 4 for all other expansion modules.
5. After removing all expansion modules, remove the base module.
Note
When removing modules, be sure to disengage the slide interlock of the module that
connects it to the next module. When removing multiple modules, it is easier to start with the
last module on the right side.
$
%
