IDEC SmartRelay installation and wiring
2.2 Installing/removing IDEC SmartRelay
IDEC SmartRelay Manual
24

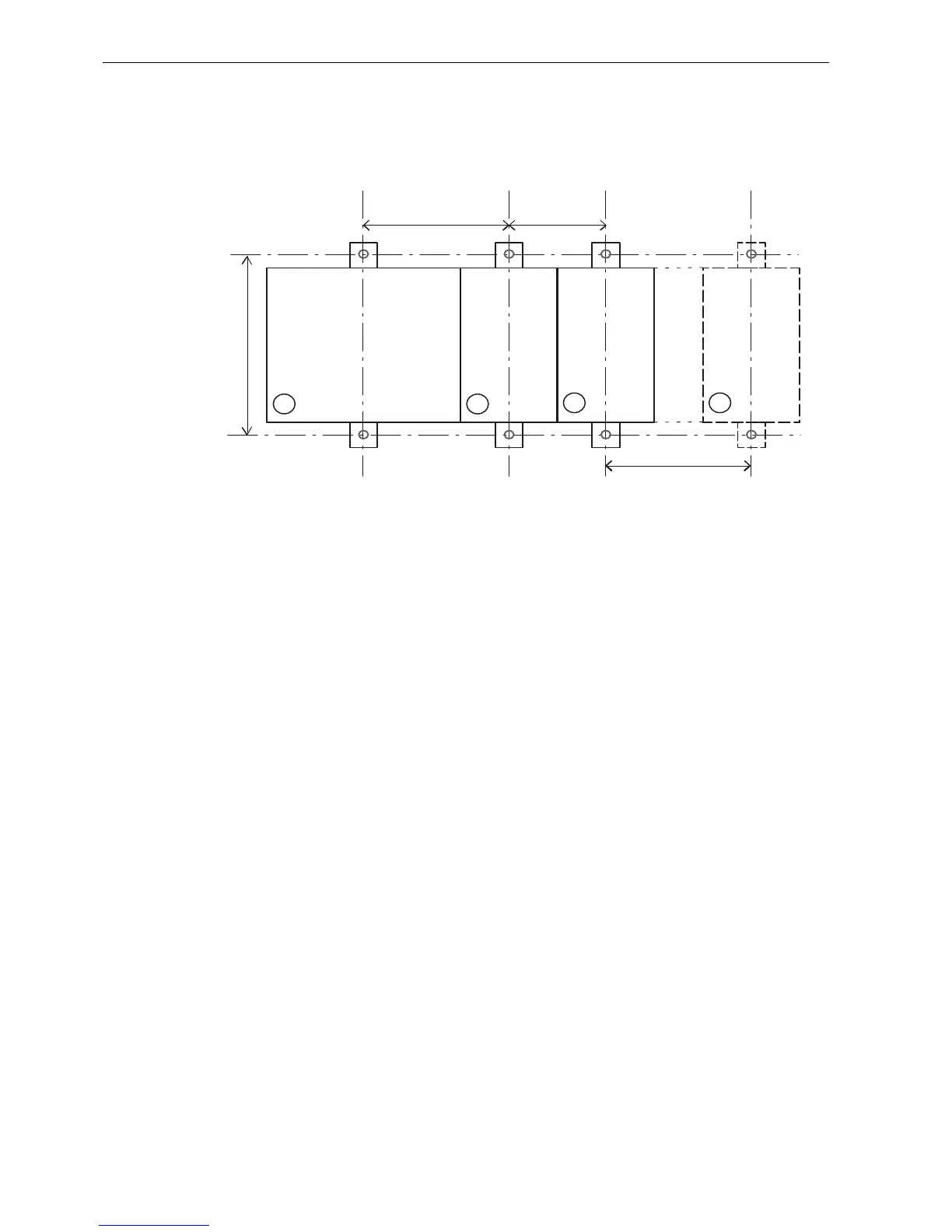

Drilling template for wall-mounting
Before you can wall-mount IDEC SmartRelay, you need to drill holes using the template
shown below:
All dimensions in mm
Bore hole for M4 screw, tightening torque 0.8Nm to 1.2Nm
① Base Module
② Expansion Modules
98 +/– 0.3
1
2
2 2
+0.2
53.5–0.0
+0.2
35.5–0.0
+0.2
n x 35.5–0.0
,'(&
6PDUW5HOD\
)/)
