JFS-A1 INSTALLATION, OPERATION, AND INSTRUCTION MANUAL
Document #: DOC230
Issued: August 27, 2012
Revised: N/A
Wiring Types
Wiring specications must be followed to prevent damage or other consequences.
Refer to table below for a breakout of the dierent wiring requirements shown by circuittype:
Table 5: Main Board Circuit Wiring Types
Wiring Type
Type of Circuit
Voltage
Power
AC Connection High Voltage Non-Power Limited
Battery Connection Low Voltage Non-Power Limited
Trouble Relay Low Voltage Non-Power Limited
Supervisory Relay Low Voltage Non-Power Limited
Alarm Relay Low Voltage Non-Power Limited
I/OCircuits Low Voltage Power Limited
NoticationDeviceCircuits(NACs) Low Voltage Power Limited
P-Link RS-485 Connections Low Voltage Power Limited
Signaling Line Circuit Low Voltage Power Limited
Phone Line – DACT High Voltage Non-Power Limited
Cabinet Dimensions

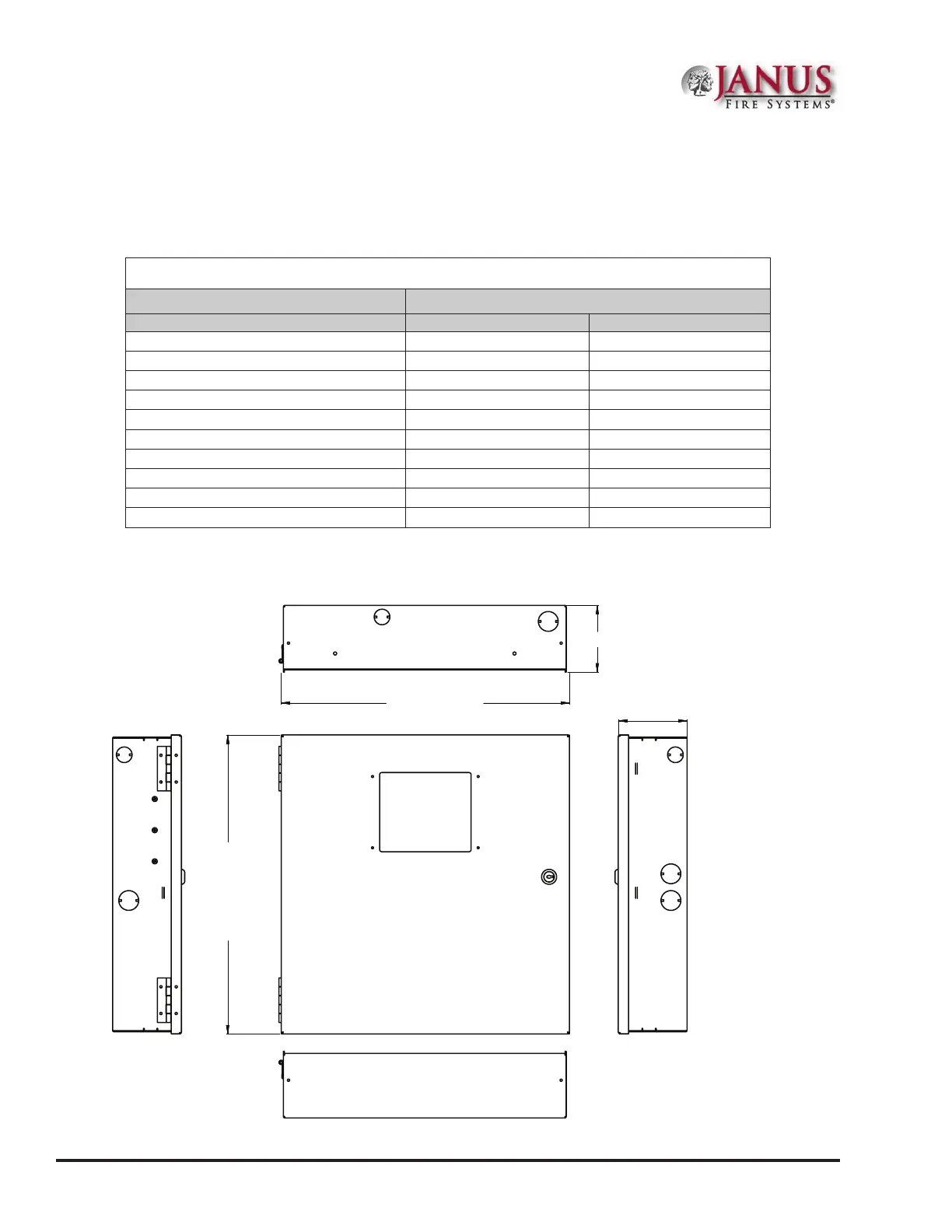

Figure 1. JFS-A1 Cabinet Dimensions
DOOR =
16.78
"
BACKBOX = 16.56"
DOOR = 16.07 "
BACKBOX = 15.77"
3.75 "
DEPTH =
DEPTH =
3.84 "
TOP
LEFT SIDE
RIGHT SIDE
BOTTOM
DWG #593-1
