Wiring Types
Wiring specications must be followed to prevent damage and/or other consequences.

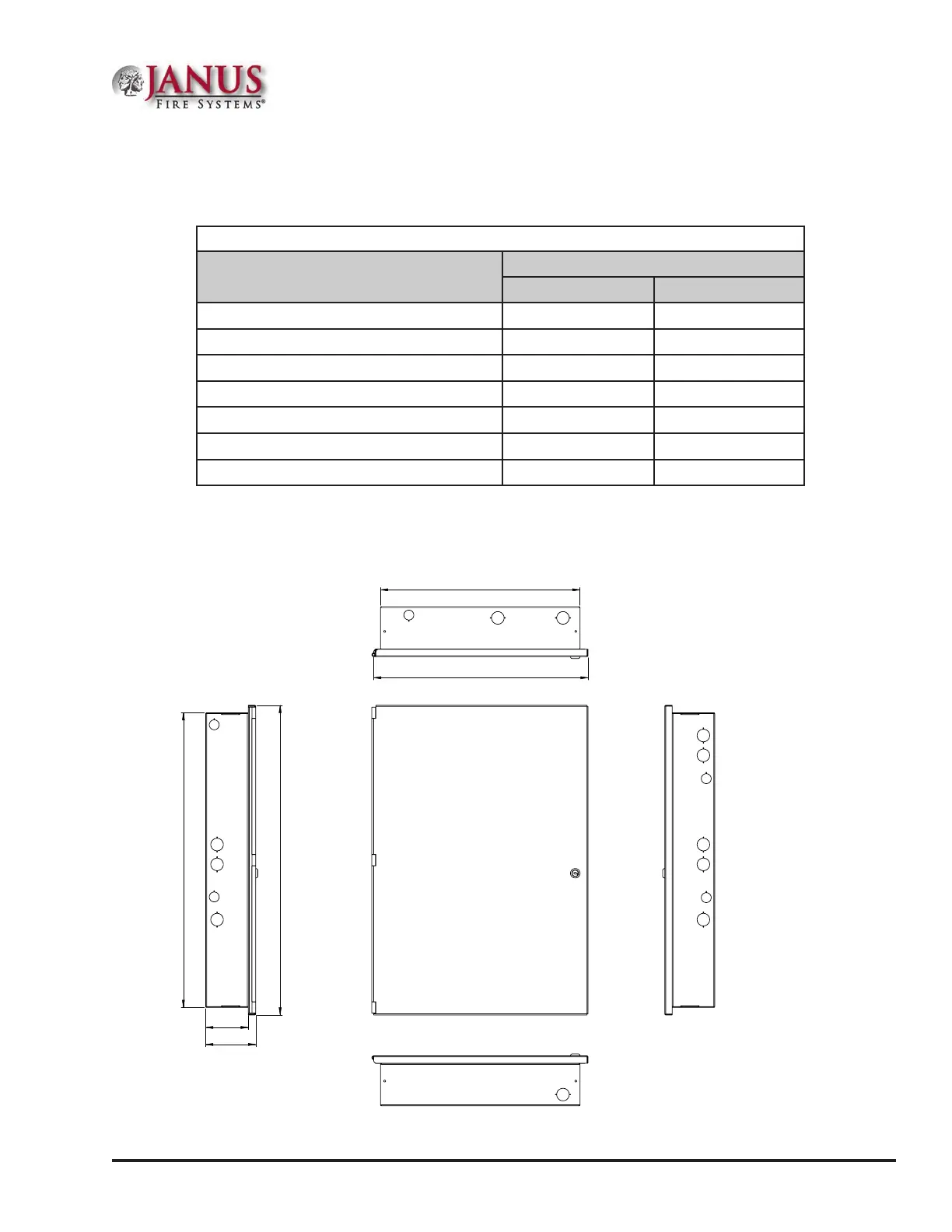

Table 23: PSN-1000/PSN-1000(E)BoardCircuitWiringTypes
Type of Circuit
Wiring Type
Voltage Power
AC Connection High Voltage Non-Power Limited
Battery Connection Low Voltage Non-Power Limited
Trouble Relay Low Voltage Non-Power Limited
Low AC Relay Low Voltage Non-Power Limited
Notication Device Circuits (NACs) Low Voltage Power Limited
Input Circuits Low Voltage Power Limited
P-Link RS-485 Connections Low Voltage Power Limited
Cabinet Dimensions
Figure 116. PSN-1000(E) Cabinet Dimensions
18.91”
17.60”
26.00 “ 27.32 “
4.41
3.75
TOP
RIGHT SIDE
DEPTH
LEFT SIDE
DWG #602-21
