InstallingRemoteAnnunciators(RA-6500RandRA-6075R)
Up to 31 annunciators in any combination may be connected to the main re control panel. e RA-6500R
provides a 4 x 40 character LCD display and the same control capabilities as the main panel. Whereas,
the RA-6075R provides a 2 x 16 character LCD display, along with standard function and numeric keys. All
annunciator models listed are designed to be mounted on a at non-condensing surface or electrical box.
Setting Addresses
An annunciator's address is set by dip switch S1, which is located on the back of the annunciator. e address must
be set in the range of one to thirty-one (1–31) to be recognized by the panel. (Refer to chart on the previous page for
P-Link DIP switch programming.)

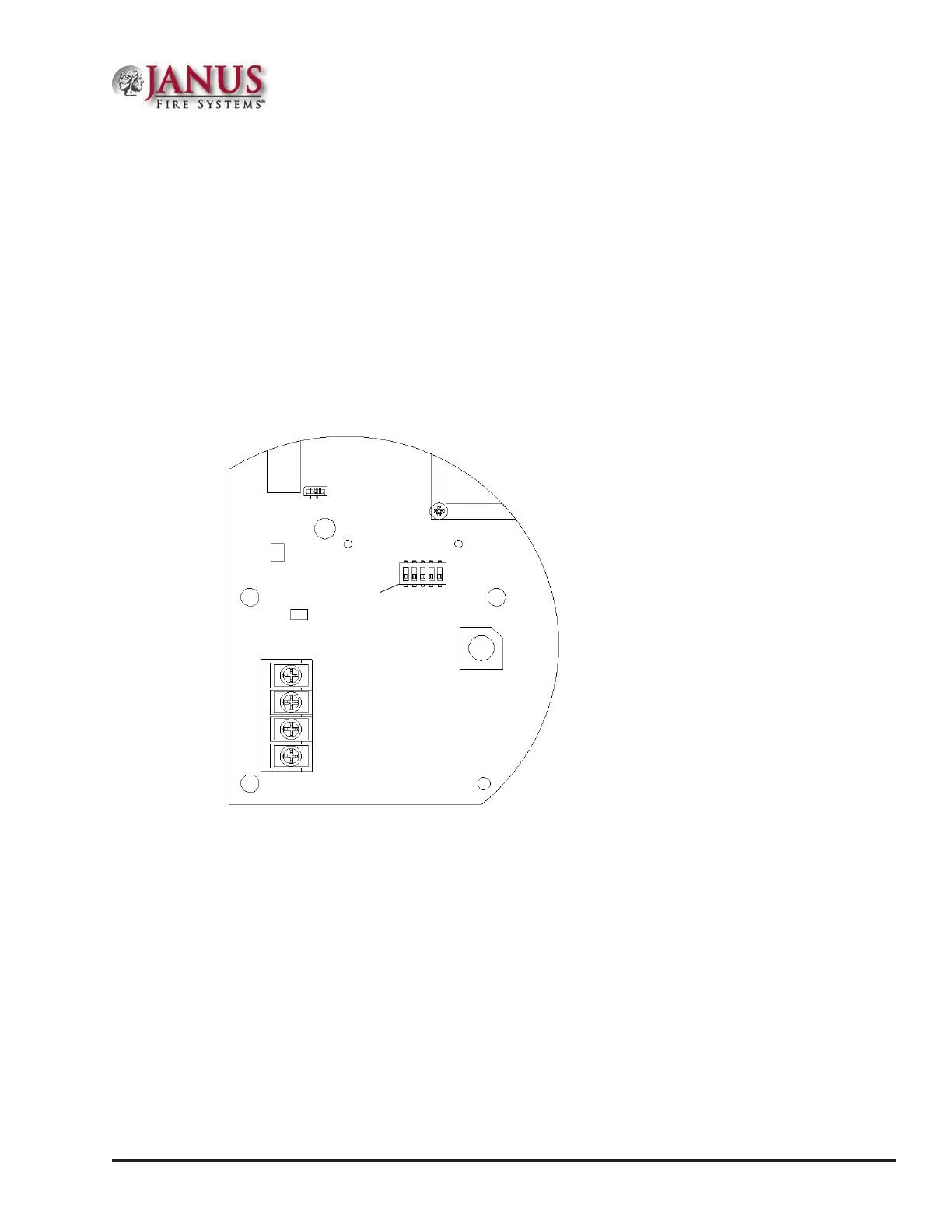

Figure 33. Annunciator Back Panel View
DIP SWITCH
A
B
+
-
DWG #593-31
