Page: 43
JFS-A1 INSTALLATION, OPERATION, AND INSTRUCTION MANUAL
Document # : DOC230
Issued: August 27, 2012
Revised: N/A

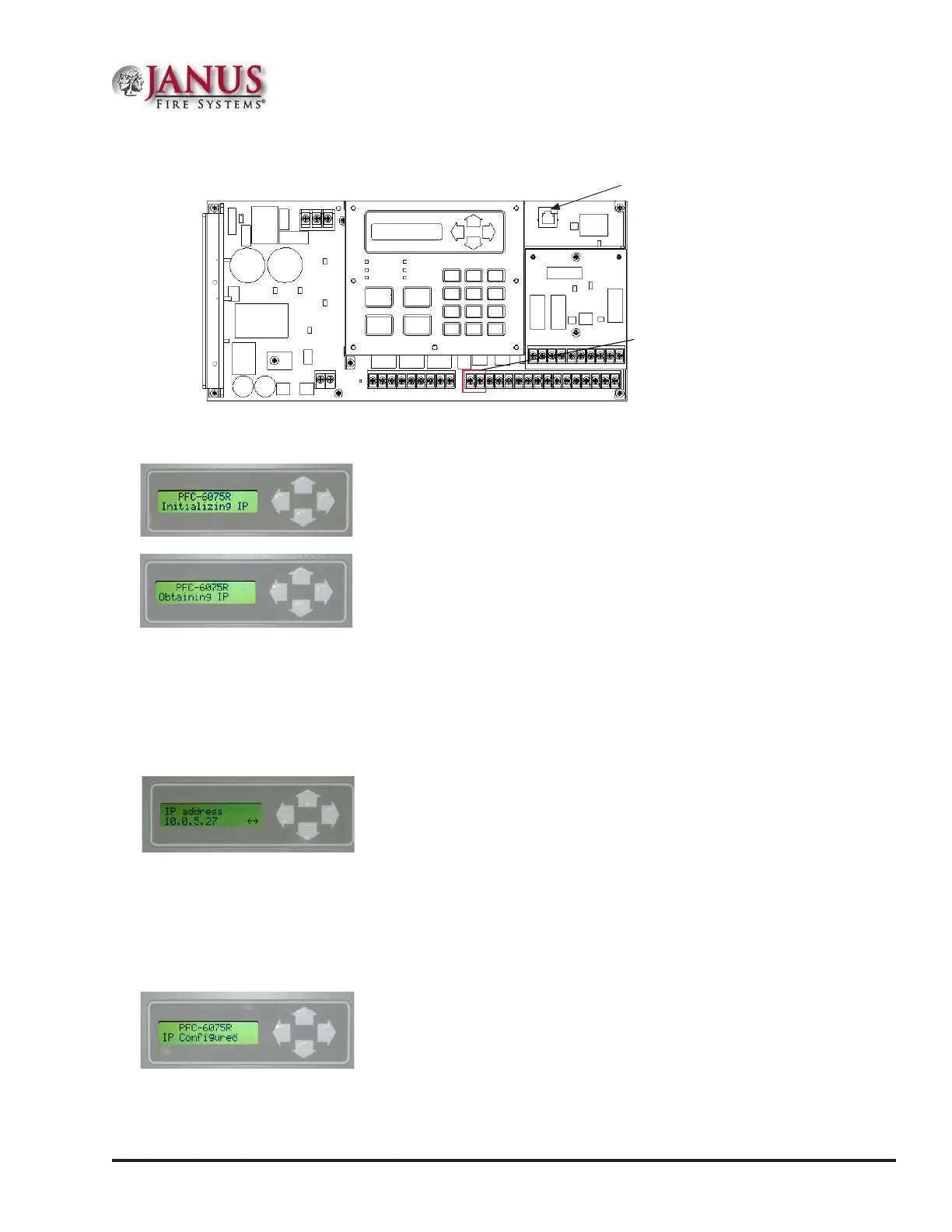

Figure 42. Control Panel Ethernet Port
e following series of messages display on the LCD:
Notes:
• If the Ethernet cable is connected to PC, you will see the "Initializing IP" message prior to the
"Obtaining IP" message.
• If your PC is connected directly to the panel, the "Obtaining IP" message displays for approximately 45
seconds, followed by the "Private IP" message (the "Private IP" message is not shown here).
Note: e number “10.0.5.27” shown above represents an example of a panel’s IP or identier used for
illustration purposes only. e panel’s IP is unique to each computer / network. Write down the IP
address; it is required to transfer programming data between the panel and the computer.
3. e “IP congured” and “IP address” prompts alternatively display until conguration is completed.
Note: If Ethernet connectivity is lost, the message “Ethernet Lost” displays on panel. is indicates that
the Ethernet cable is disconnected at the panel or network (computer) port.
POWER
EARTH FAULT
SILENCED
ALARM
SUPERVISORY
TROUBLE
SILENCE
ACK
RESET
DRILL
1
2
3
4
5
6
7
8
9
0
ENTER
ESC
DWG #593-21
SLC Program
Terminals
Ethernet port
