123

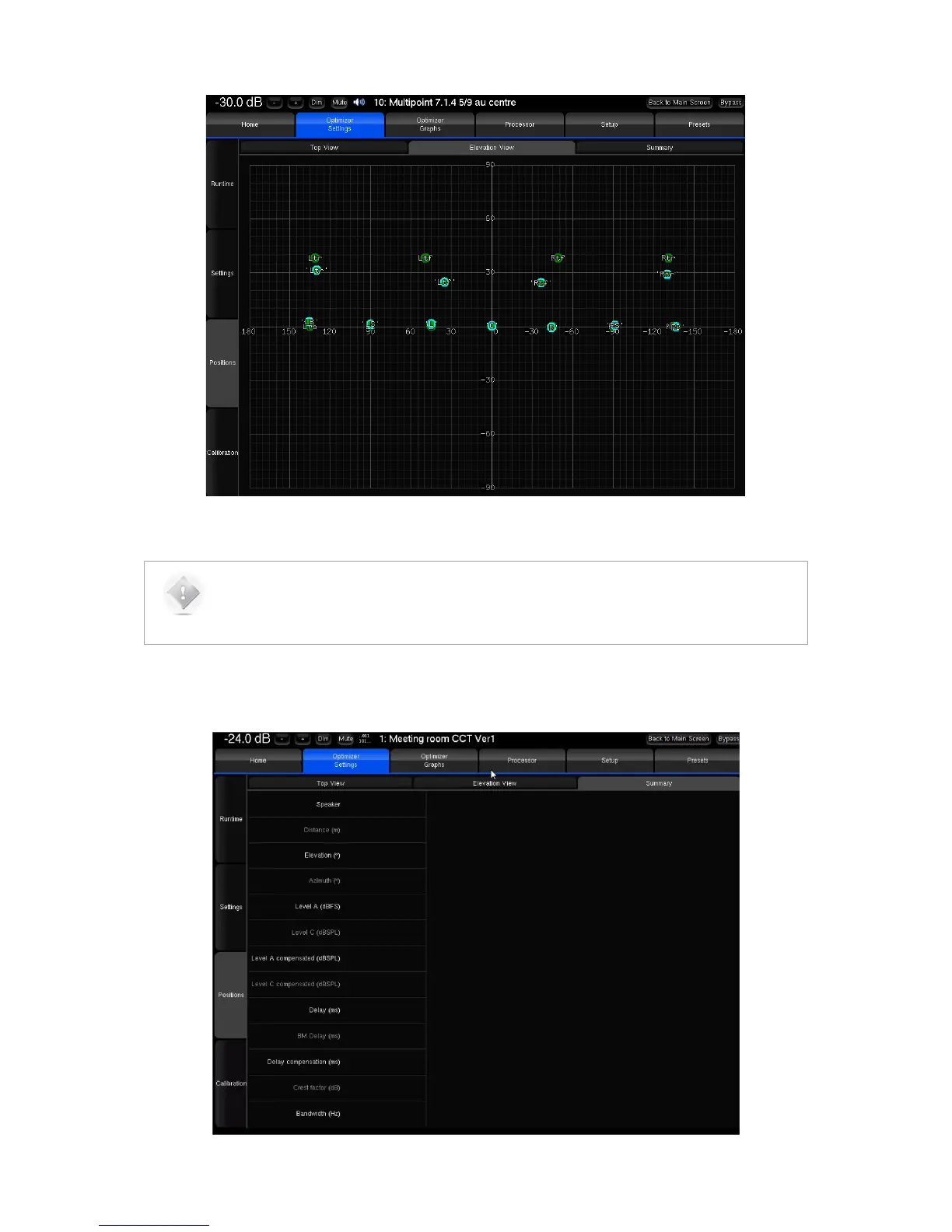

Figure'90:'Elevation'view'of'a'7.1.4'system'after'calibration'

NOTE:

• If one speaker cannot be located during calibration, it will be displayed in the center of the circle.

The Summary page provides additional measurements for each speaker:

Figure'91:'Speaker'measurements'summary'
