Johnson Controls VS3 Series User Manual

147
Appendix A—Description of parameters
VARIABLE SPEED DRIVE SERIES III LIT-12012999—June 2018 www.johnsoncontrols.com
Code Modbus ID Parameter Application RO/RW

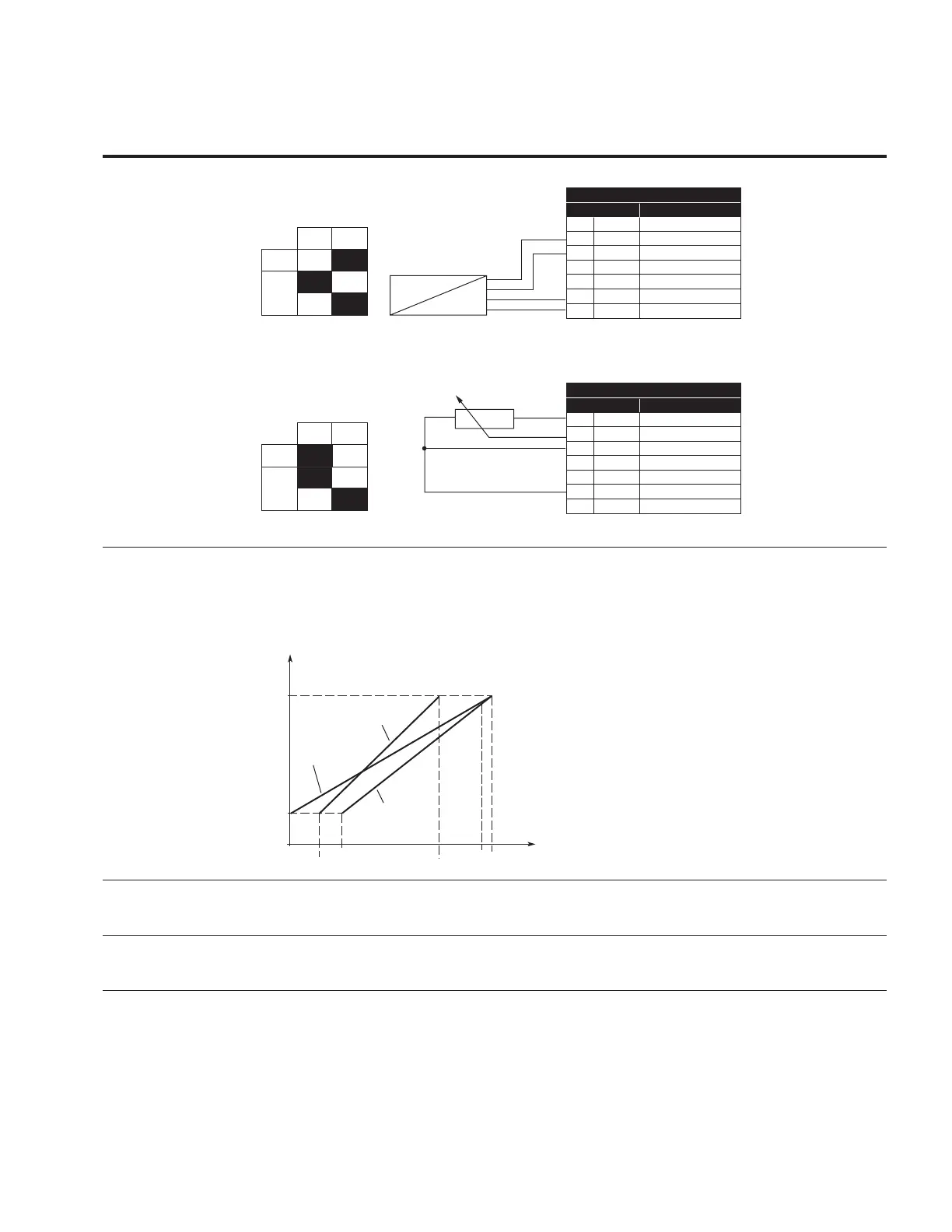

Figure 39. AI1 4wire-current
OFF
1 10V+ 10V supply
2 AI1+ Analog input 1+
3 AI1- Analog input 1-
4 AI2+ Analog input 2+
5 AI2- Analog input 2-
6 GND I/O Ground
13 24Vo 24V auxillary voltage
4-wire transducer
Actual
Value
I = (0)4...20mA
POW
GND
−
+
ON
AI
AI2
Standard I/O Board
Terminal
Signal
Figure 40. AI1 reference potentiometer 10V
OFF
1 10V+ 10V supply
2 AI1+ Analog input 1+
3 AI1- Analog input 1-
4 AI2+ Analog input 2+
5 AI2- Analog input 2-
6 GND I/O Ground
13 24Vo 24V auxillary voltage
ON
AI
AI2
Standard I/O Board
Terminal
Signal
P2.4.2 175 AI1 Signal Range 1,2,3 RW
Configures the Analog input 1 signal source scaling.
0 = 0-100%/0-20mA/0-10V - 0-100% is equal to 0 to 10V, 0-20mA.
1 = 20-100%/4-20mA/2-10V - 20-100% is equal to 2 to 10V, 4-20mA.
2 = “Customized,” see parameter Para ID 176 and 177, this defines the customized signal range.
Figure 41. Analog input AI scaling
Output
Frequency
P2.21
P2.22
0
20 mA
AI2
(Term. 3,4)
P2.4
P2.3
4 mA
P2.1 = Custom
P2.2 = 0
AI2 = 0 – 100%
P2.2 = 1
AI2 = 20 – 100%
P2.4.3 176 AI1 Custom Min 1,2,3 RW
Defines the custom minimum range of the analog input scale when the signal range is set for custom.
AI1 Custom Min < = AI1 Custom Max.
P2.4.4 177 AI1 Custom Max 1,2,3 RW
Defines the custom maximum range of the analog input scale when the signal range is set for custom.
AI1 Custom Min < = AI1 Custom Max.
