Chapter 3—Menu overview
F — Fault
There are three fault pages. The first one is F1 active faults;
the second one will pop-up automatically when fault occurs;
the third one is F2 fault history.
If there is no active fault/history fault, then “No fault” shall
be shown.
Active fault

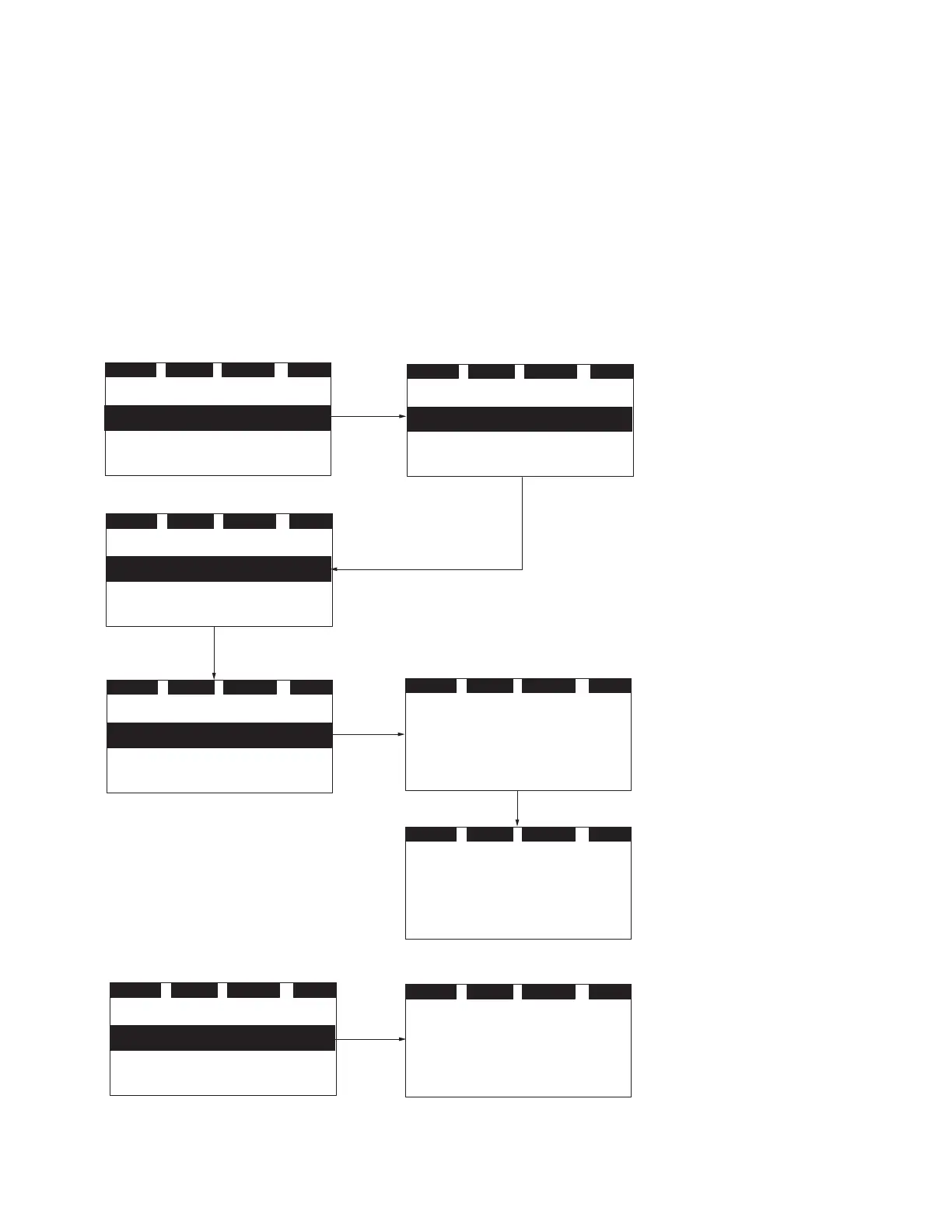

The navigation for active faults is as Figure 18.
Figure 19. Active faults
After the DETAIL soft key is pressed, the following detail
information about the fault shall be shown: fault code,
type, power day count, power hour count, frequency,
current, voltage, power, torque, DC voltage, unit
temperature, run status, direction, warning, zero speed,
Mwh count, at reference.
STP FWD KEY TPM
BYPASS JOG13:53
B: Optional Boards
F: Fault
P: Parameters–
STP FWD KEY FLT
BYPASS REVERSE13:53
F1.2: System Fault
F1.1: Over Voltage
F1.3: Over Current–
STP FWD KEY FLT
BYPASS DETAILS13:53
04:08:12 13:53:45
Over Voltage
F1.1: Fault–
STP FWD KEY FLT
BYPASS REVERSE13:53
F2: History Fault
F1: Active Fault
F3: Fault Log–
STP FWD KEY FLT
MENU13:53
Operation Days: 0
Type: Fault
Code: 2
STP FWD KEY FLT
MENU13:53
Operation hours: 13
Operation Days: 0
Type: Fault
STP FWD KEY FLT
REVERSE
BYPASS
13:53
No Fault
STP FWD KEY FLT
BYPASS REVERSE13:53
F2: History Fault
F1: Active Fault
F3: Fault Log
Right / OK key
Has Active Faults
Right/OK key
Right/OK Key
Soft Key 2
Down Key
Right/OK Key
No Active Fault
