9VARIABLE SPEED DRIVE SERIES III LIT-12012999—June 2018 www.johnsoncontrols.com
Chapter 2—Keypad overview
Keypad buttons
Buttons description

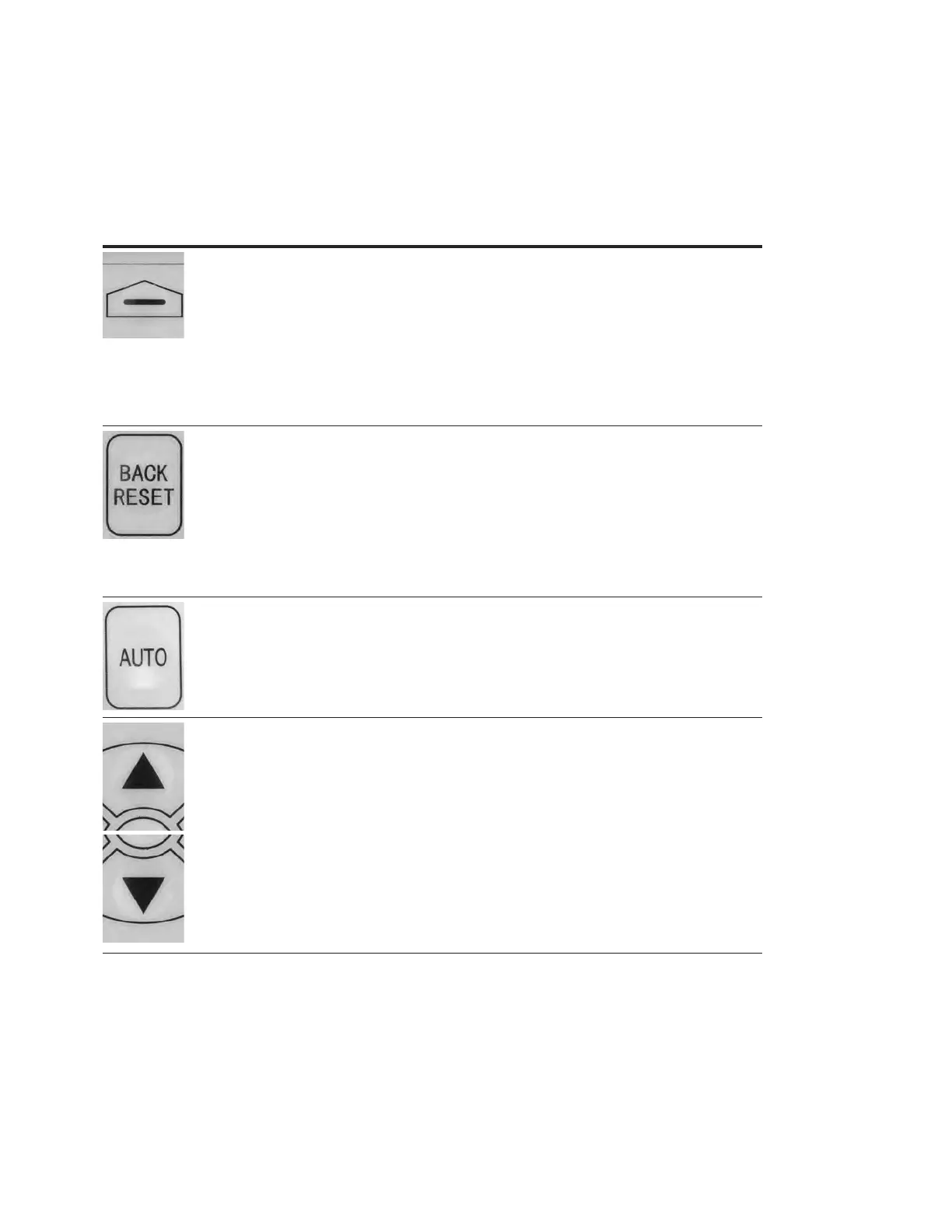

Table 10. Keypad buttons
Icon Button Description
Soft key 1,
Soft key 2
Soft key 1, soft key 2:
The functions of these two buttons shall be the following:
•
Forward/Reverse, this shall change motor’s run direction.
•
Menu, this shall return to main menu.
•
Details, this shall display the details of the fault.
•
Bypass, this shall make drive go into bypass.
•
Jog, this shall activate jog. Jog can enabled via press OK Key and Soft2 Key(When the
Soft2Key is Jog) and disabled via release any one of the two keys.
•
Favorite, this shall add this parameter to the Favorite menu.
•
Delete, this shall delete this parameter from the Favorite menu.
Back/Reset
Back/Reset:
This button has three integrated functions. The button operates as backward button
during normal mode. In edit mode, it is used as cancel operate. It is also used to reset
faults when faults occur.
•
Backs up one step.
•
Cancels Modify in edit mode.
•
Resets the active faults (all the active faults shall be reset by pressing this button more
than 2 seconds in any page).
•
Hold Stop and Back Reset for 5 seconds to return drive to factory default
•
At Main Menu page by hitting Back/Reset takes to Default Page.
Auto
Auto:
This button switches the drive into the auto control place.
Up
Down
Up and down arrows:
•
Move either up or down a menu list to select the desired menu item.
•
Editing a parameter bit by bit, while the active digit is scrolled.
•
Increase/decrease the reference value of the selected parameter.
•
In parameter comparison mode, scroll through the parameters of which current value is
different from comparison parameter value.
•
In parameter page when in read mode, move to the previous or next brother parameter of
this parameter.
