Kinco FD5P Series User Manual

Chapter 2 Servo system installation
requirements and notes
Kinco FD5P AC series servo driver
manual
6

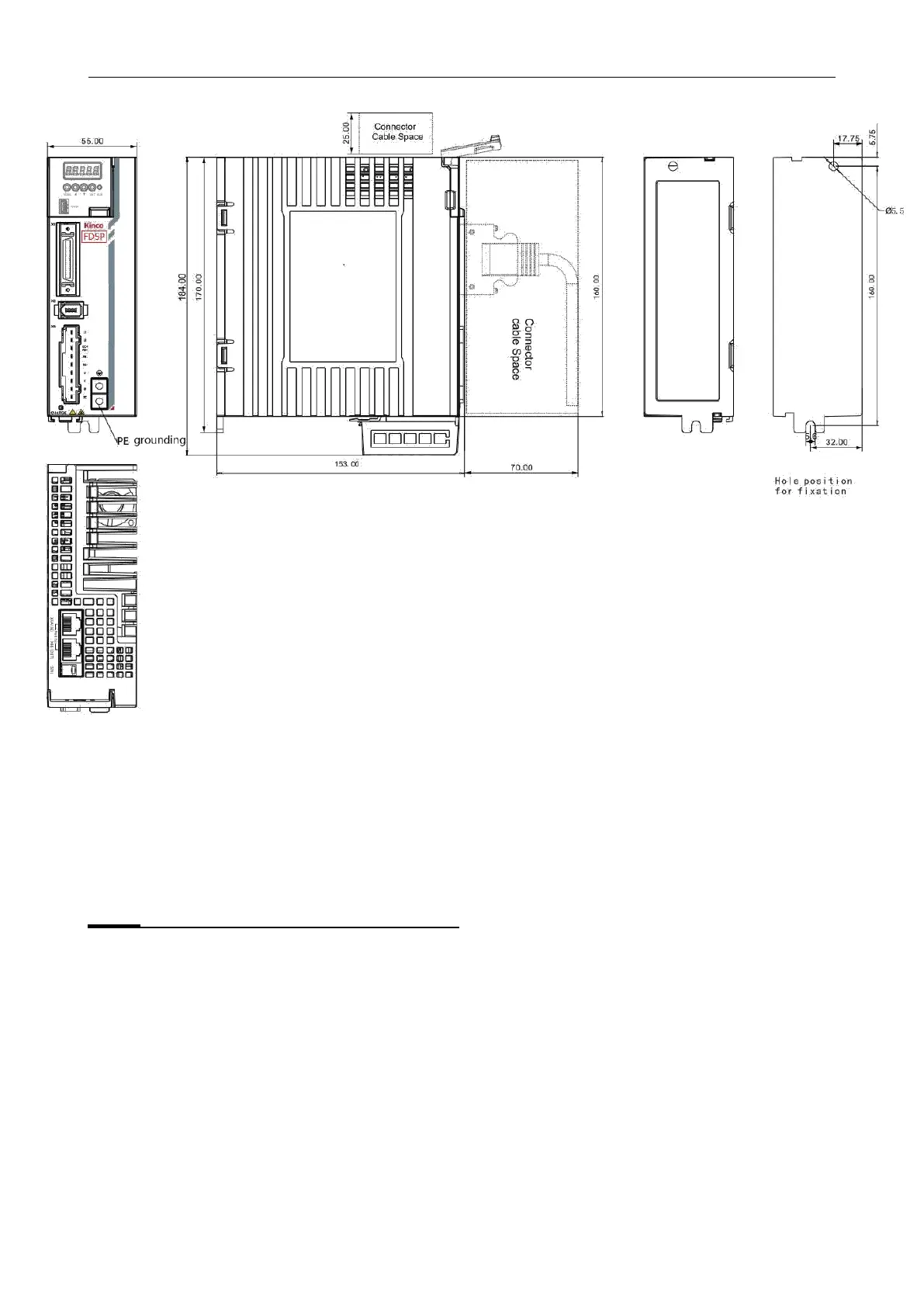

Figure 2-2 FD425P-□A Product installation drawing
2.1.2 Installation distance and direction
Please install the servo drive vertically and drill holes according to the Hole Position for Fixation，
There should be an installation gap of more than 20mm between two drives. There should be a
gap of more than 20mm between the first and last two drives and the wall or cabinet.
There is no fan in FD415P/FD425P driver, use natural cooling, pay attention to retain enough cooling space
when installing.
