Kinco FD5P Series User Manual

Kinco FD5P AC series servo driver
Chapter 3 Installation and wiring
27

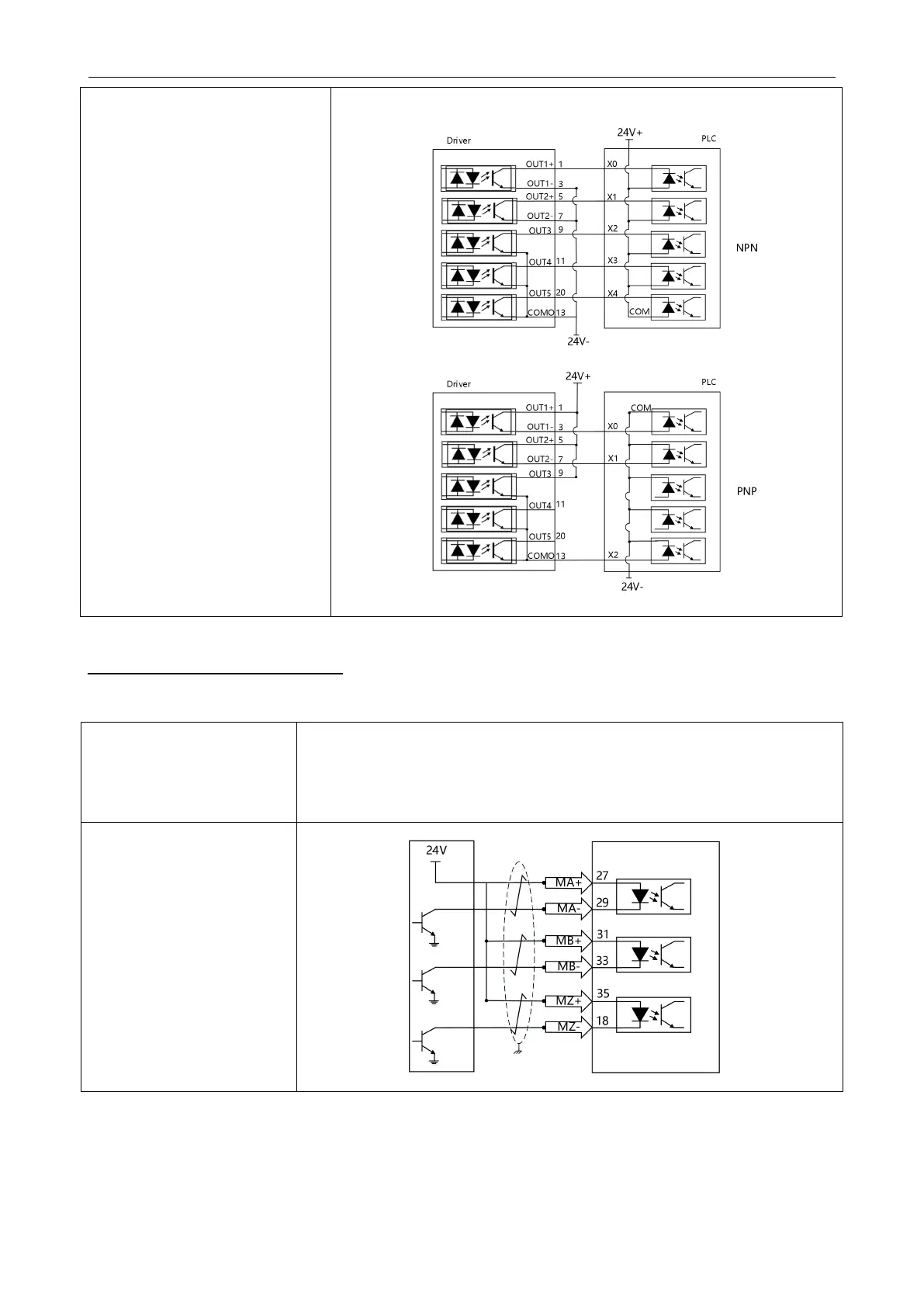

Digital output wiring example②
When the host computer is
optocoupler input
3.4.3 Pulse command input
Table 3-11 Pulse input wiring example
Instruction
Pulse input is divided into ordinary pulse input channel and high-speed pulse input channel
High-speed pulse input channel supports RS422 differential signal, voltage range DC3.3-5V, MAX
pulse frequency 4MHz
Ordinary pulse input channel supports TTL/differential signal, voltage range DC 3.3-30V,
maximum frequency 500KHz
Ordinary pulse input wiring
example①
NPN Wiring method
Servo driver
