Kinco FD5P AC series servo driver
Chapter 3 Installation and wiring
30

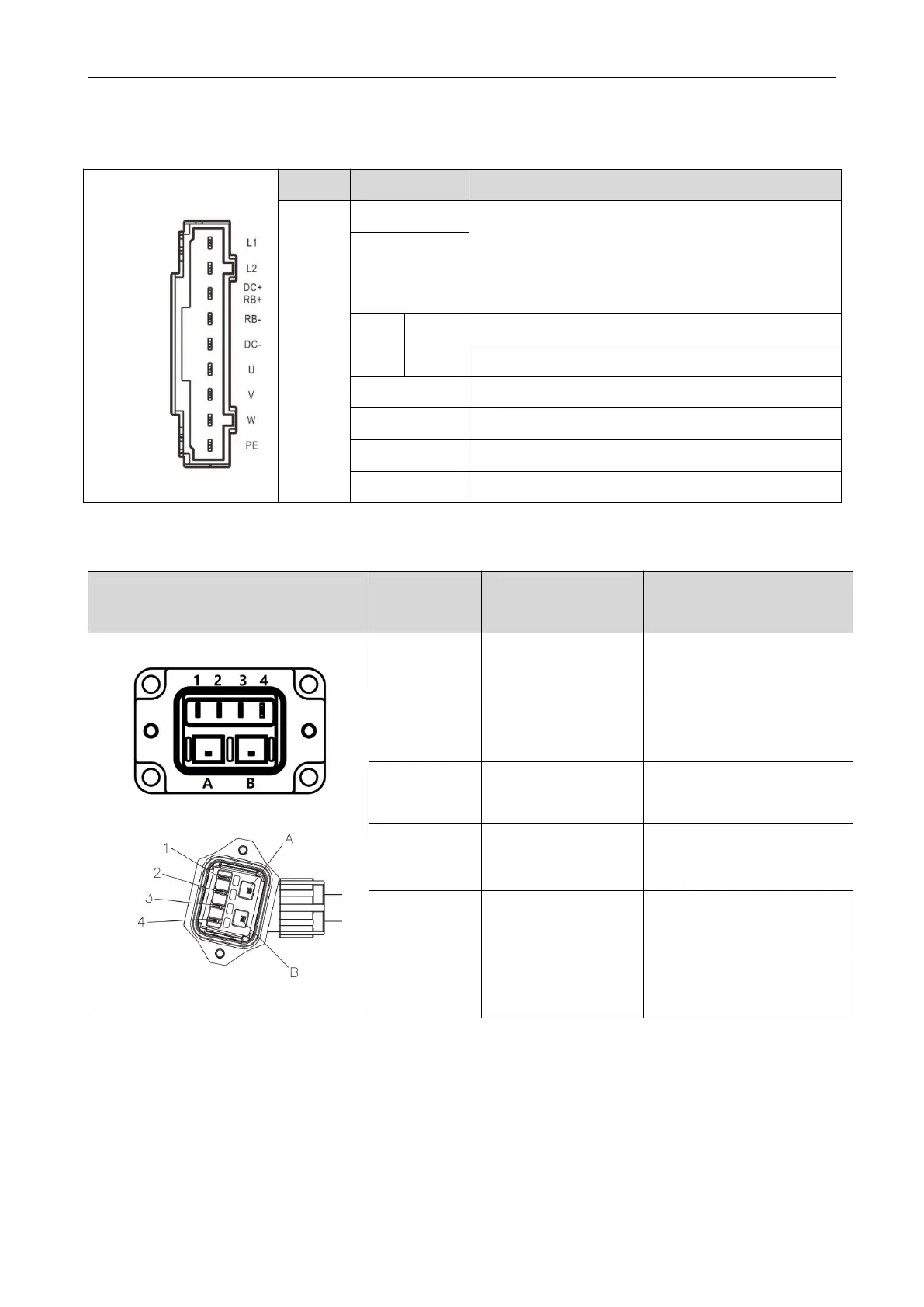

3.6Power portX3
Table
3-16 FD425P
Power port instruction
Port
Pin name
Pin function
X3
L1
Drive mains power input
Unidirectional line voltage 200
240VAC ±10% 50
60Hz
±3Hz
(750W 7A)
(200W 3A)
L2
DC+
/RB+
DC+
DC bus input positive terminal
RB+
External braking resistor terminal
RB-
External braking resistor terminal
DC-
DC bus input negative terminal
U/V/W
Servo motor UVW phase line connection
PE
Motor ground
Table 3-17 Power cable connector pin definition
Connector shape
Serial number
Signal name
color
Motor power wire connector
Power cable connector
1
U
White
2
W
Black
3
V
Red
4
PE
Yellow and green
A
BRAKE+
Brown
B
BRAKE-
Blue
