Kinco FD5P Series User Manual

Kinco FD5P AC series servo driver
Chapter 3 Installation and wiring
26

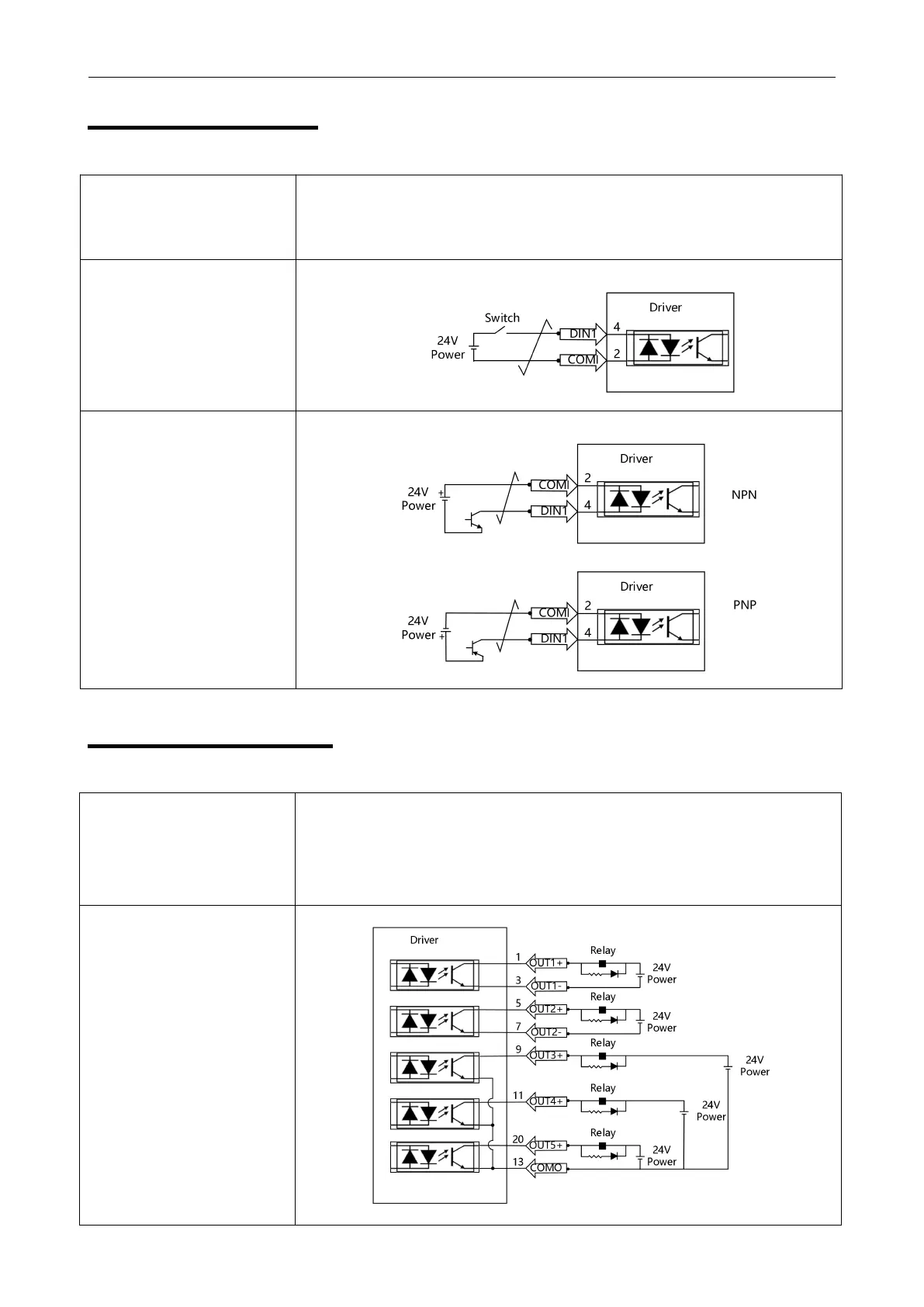

3.4.1 Digital signal input
Table 3-9 Digital input wiring example
Instruction
Max input frequency：1KHz
High level input voltage range: 12.5-30V
，
Low level input voltage range: 0-5V
The drive’s internal 24Voutput can be used as a pull-up power supply
Digital input wiring example①
When the host computer is relay
output
Digital input wiring example②
When the host computer is open
collector output
3.4.2 Digital signal output
Table 3-10 Digital output wiring example
Instruction
OUT1/OUT2 is open collector output，MAX voltage DC30V，MAX current 100mA
OUT3-OUT5 is single-ended output，MAX voltage DC30V，MAX current 30mA
The drive’s internal 24V output can be used as a pull-up power supply
When OUT3-OUT5 use PNP wiring, only one of them can be used
Digital input wiring example①
When the host computer is relay input
