Kinco FD5P Series User Manual

Chapter 2 Servo system installation
requirements and notes
Kinco FD5P AC series servo driver
manual
13

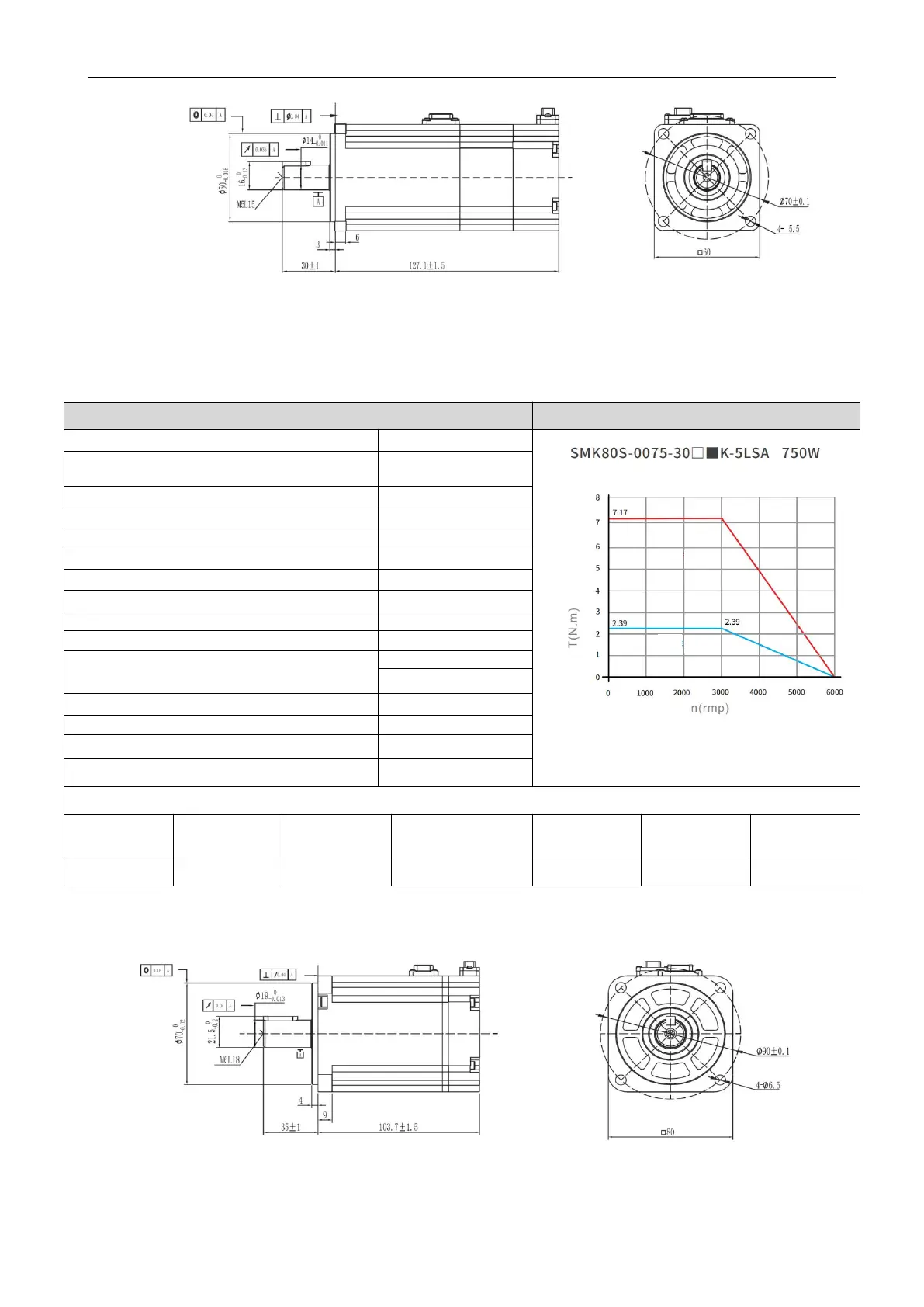

Figure 2-6 SMK series 60 flange 400W lock motor dimensions
2.2.4.2 SMK80S-0075-30▢
█
K-5LSA
Motor size
Figure 2-7 SMK series 80 flange 750W motor dimensions
Motor specification
Torque-speed characteristic curve
Motor stand (mm)
80
Rated power Pn(W)
750
Rated torque Tn(Nm)
2.39
Rated speed nN(rpm)
3000
Rated current In(A)
3.9
Instantaneous maximum torque Tm(Nm)
7.17
Instantaneous maximum current Im(A)
12.4
Continuous static torque Ts(Nm)
2.63
Continuous static current Is(A)
4.3
Torque constant Kt(Nm/A)
0.7
Rotational inertia Jm(Kg*cm²)
0.9
0.95(With brake)
Number of poles
5
Insulation grade
F
Bearing radial force F(N)
335
Bearing axial force F(N)
167.5
Electrical specifications of the lock
Static torque
(Nm)
Supply voltage
(vdc)
Rated power
(W)
Coil resistance
(Ω)
Suction time
(ms)
Release time
(ms)
Rotating
clearance
(°)
3.2
24
11.5
50
≤80
≤40
＜1
Instantaneous
working area
Continuous working area
