Note
The use of lock gate can ensure that the motor shaft can remain stationary in the
state of de-enable or power failure. Please ensure that the lock gate has been
opened before the motor operation. Do not use lock brake when the drive control
motor shaft is running at high speed in non-emergency cases, otherwise it will
cause the lock performance degradation or damage.
Table 3-13 Motor holding brake power
Motor model
Motor power(W)
Brake power(W)
SMK60S-0040-30□BK-5LSA
400
7.6
SMK80S-0075-30□BK-5LSA
750
11.5
*
Note：The brake parameters of different encoder motors are the same

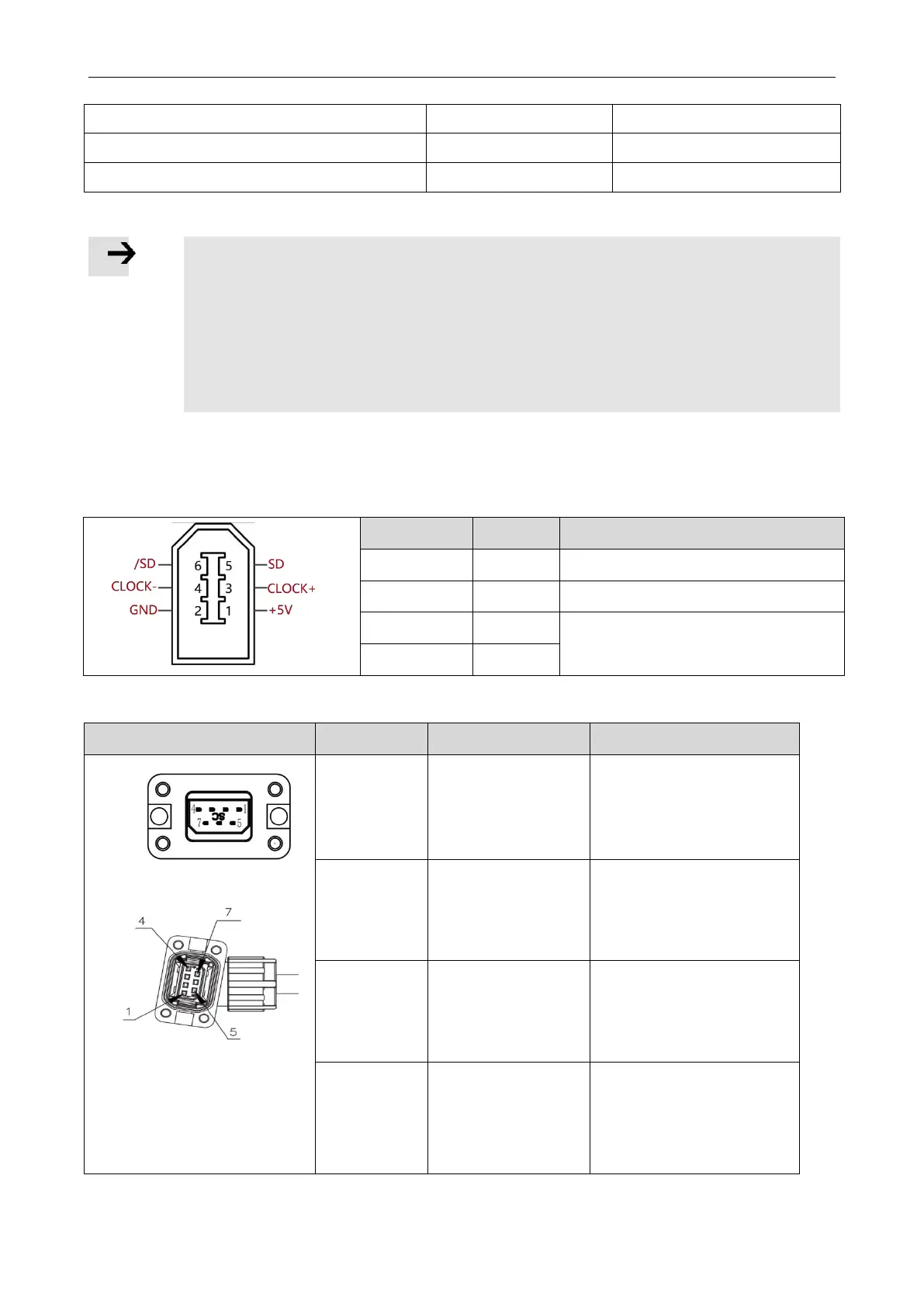

3.5 Encoder input（X2）
Table 3-14 Driver end encoder pin definition
Pin number
Pin name
Pin function
1
+5V
5V power output positive terminal
2
GND
5V power output negative terminal
5
SD
Serial data signal
6
/SD
Table
3-15
Encoder cable connector pin definition
Connector shape
Serial number
Signal name
color
Motor encoder connector
Encoder cable connector
1
+5V
Red
2
GND
Orange
5
SD
Blue
6
/SD
Purple
