Chapter5 KincoServo +, user guide
The length of data to store before triggering the
event. If you set data to -1, the oscilloscope will
continuously acquire data until it is manually
stopped. Used for some special occasions. At this
point, the oscilloscope continuously monitors the
trigger conditions, saves the data after the trigger is
satisfied, and continues to monitor the trigger
conditions after the acquisition ends.
Oscilloscope trigger edge control consisting of BCD
codes
B i t 0
：
0—Falling edge trigger
；
1—Rising edge
trigger
Bit 1
：
0-- Signed Comparison
；
1-- Absolute Value
Comparison
bit 2
：
1—use mask
（
23000E20
），
AND gate
Note: You can no longer use the up and down arrows
on the oscilloscope page to set the trigger edge to
prevent conflicts.
Oscilloscope Trigger Object
Oscilloscope Trigger level
5.7 Error display and error history
Error：Click“Controller”
->
“Error display”，or click button（which turns red if an
error occurs
），The Error Display window appears. It shows the last errors.

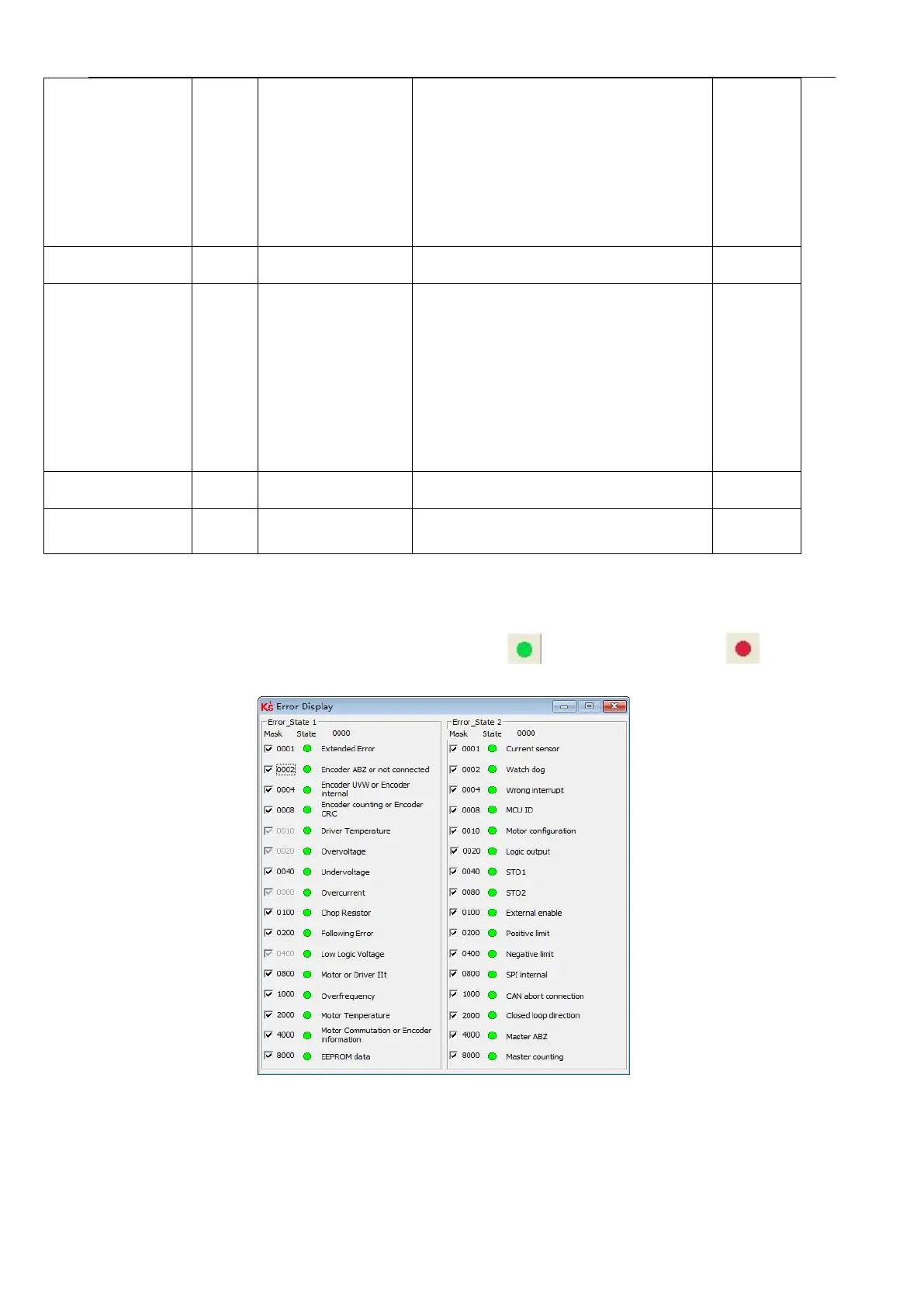

Figure 5-12 Error display window
Error history：Click“Controller”
->
“Error history”， The error history window will pop up and
display the last 8 error messages, including error word, bus voltage, speed, current, temperature,
working mode, and power tube status. The most recent historical failure is displayed on the first
line.
