1. GENERAL INFORMATION
1-22
MXU 500

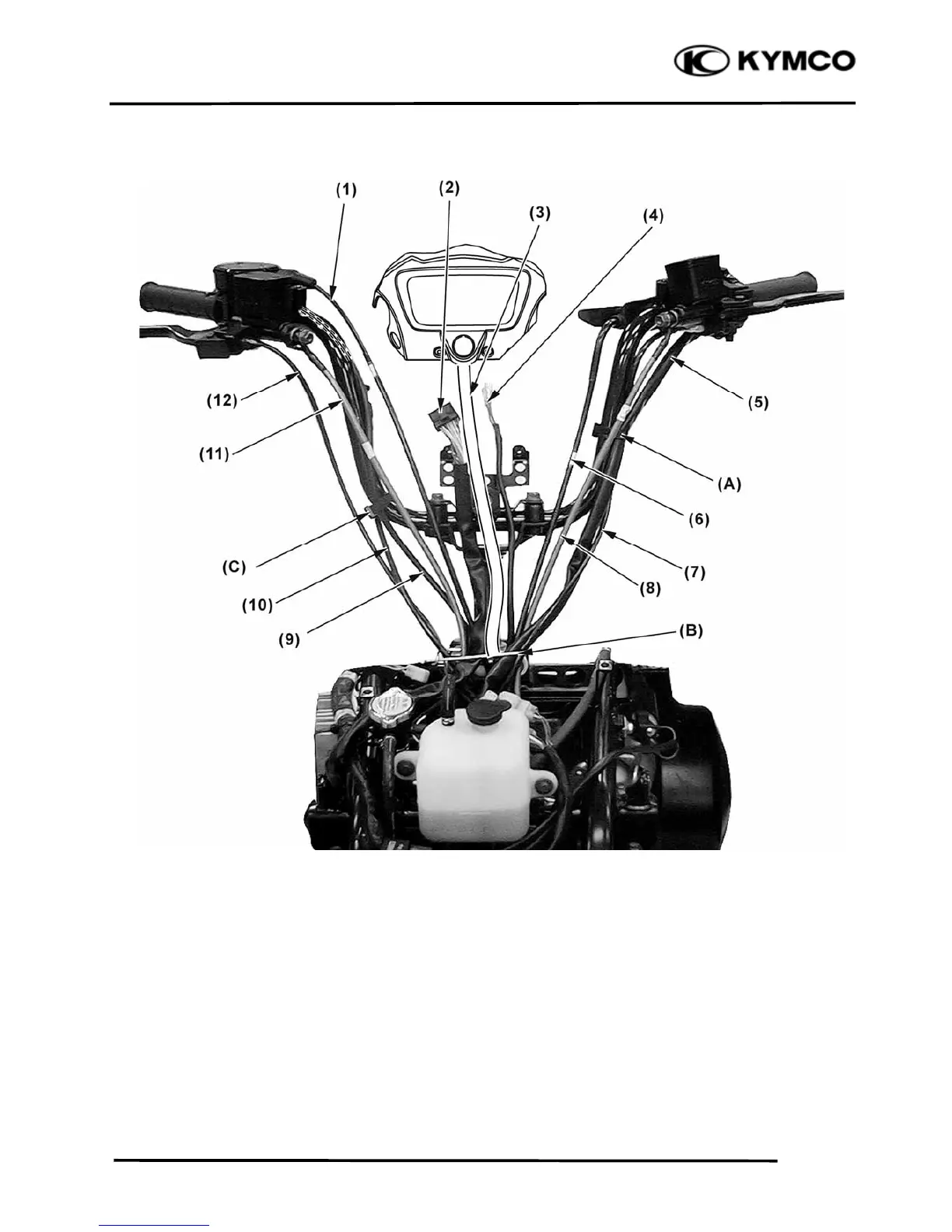

(1) Throttle cable (7) Brake light switch wire
(2) Instrument connector (8) Rear brake hose (Brake lever)
(3) Ignition switch wire (9) 2WD/4WD switch wire
(4) Accessory socket connectors (10) Choke cable
(5) Left handlebar switch (11) Front brake hose
(6) Rear parking brake cable (ON ROAD) (12) Brake light switch wire
(A) Pass the brake light switch wire and left handlebar switch wire through the band.
(B) Passe the throttle cable, chock cable, brake light switch wires, 2WD/4WD switch wire, front brake
hose, rear brake hose, instrument connector wire, accessory socket connector wire, rear parking
brake cable (ON ROAD), left handlebar switch wire and ignition switch wire through the guide.
(C) Pass the 2WD/4WD switch wire through the band.
