1. GENERAL INFORMATION
1-23
MXU 500

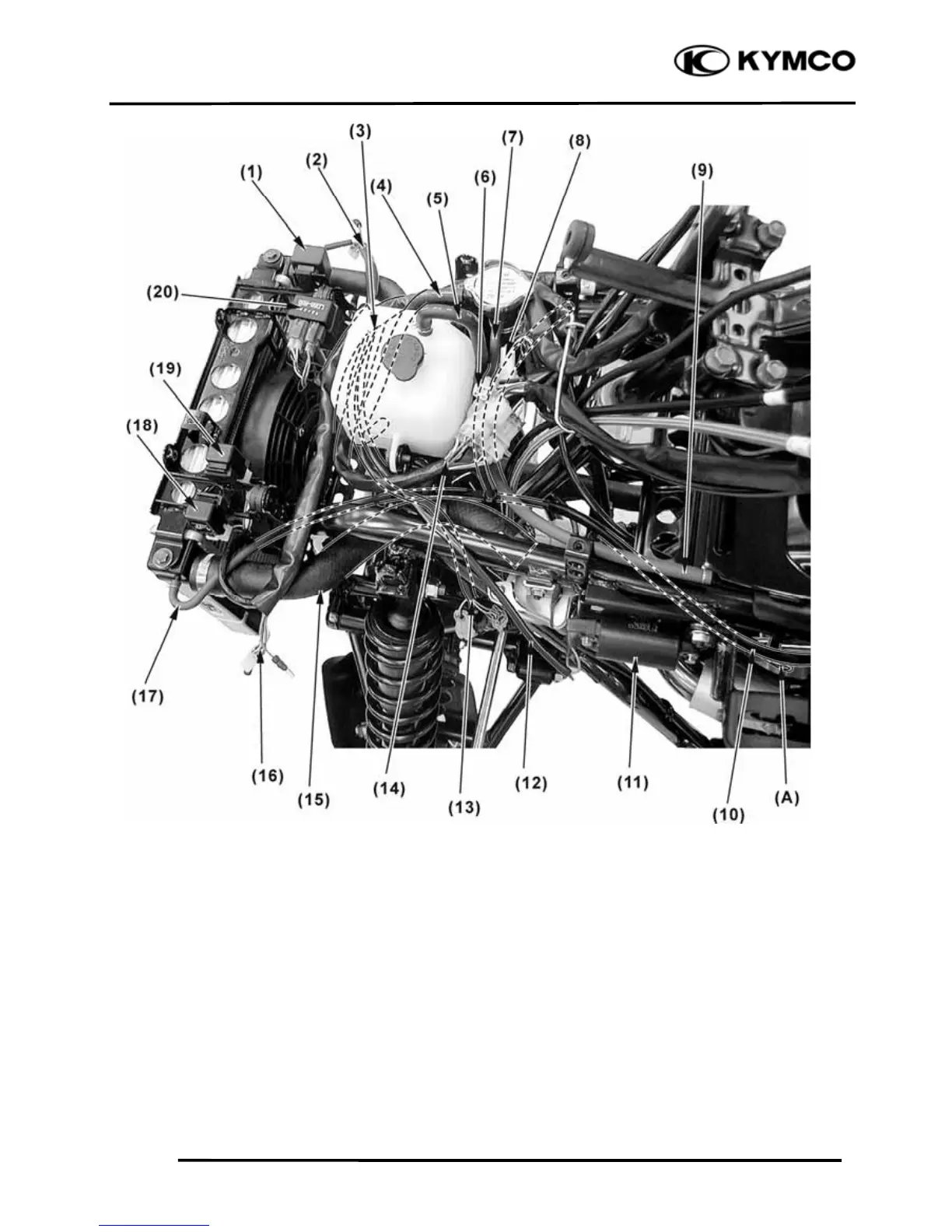

(1) Fan EMI filter (12) Ignition coil wire
(2) Headlight connector (13) 2WD /4WD start switch
Right front signal light connectors (ON ROAD) /2WD/4WD motor connectors
(3) Harness wire (14) Left handlebar switch connectors
(4) Siphon hose (15) Upper radiator hose
(5) Over flow hose (Reserve tank) (16) Headlight connector
(6) Ignition switch connector Left front signal light
(7) Air bleed hose connectors (ON ROAD)
(8) 2WD/4WD switch connector (17) Air bleed hose
(9) Fuel tank flow hose (connect the fuel tank cover, Note) (18) LO beam relay
(10) Air bleed hose (19) HI beam relay
(11) Ignition coil (20) 2WD/4WD change ECU
(A) Pass the air bleed hose through the guide.
Note: The fuel tank flow hose may locate the frame right side for some model.
To Next Page
