1. GENERAL INFORMATION
1-24
MXU 500

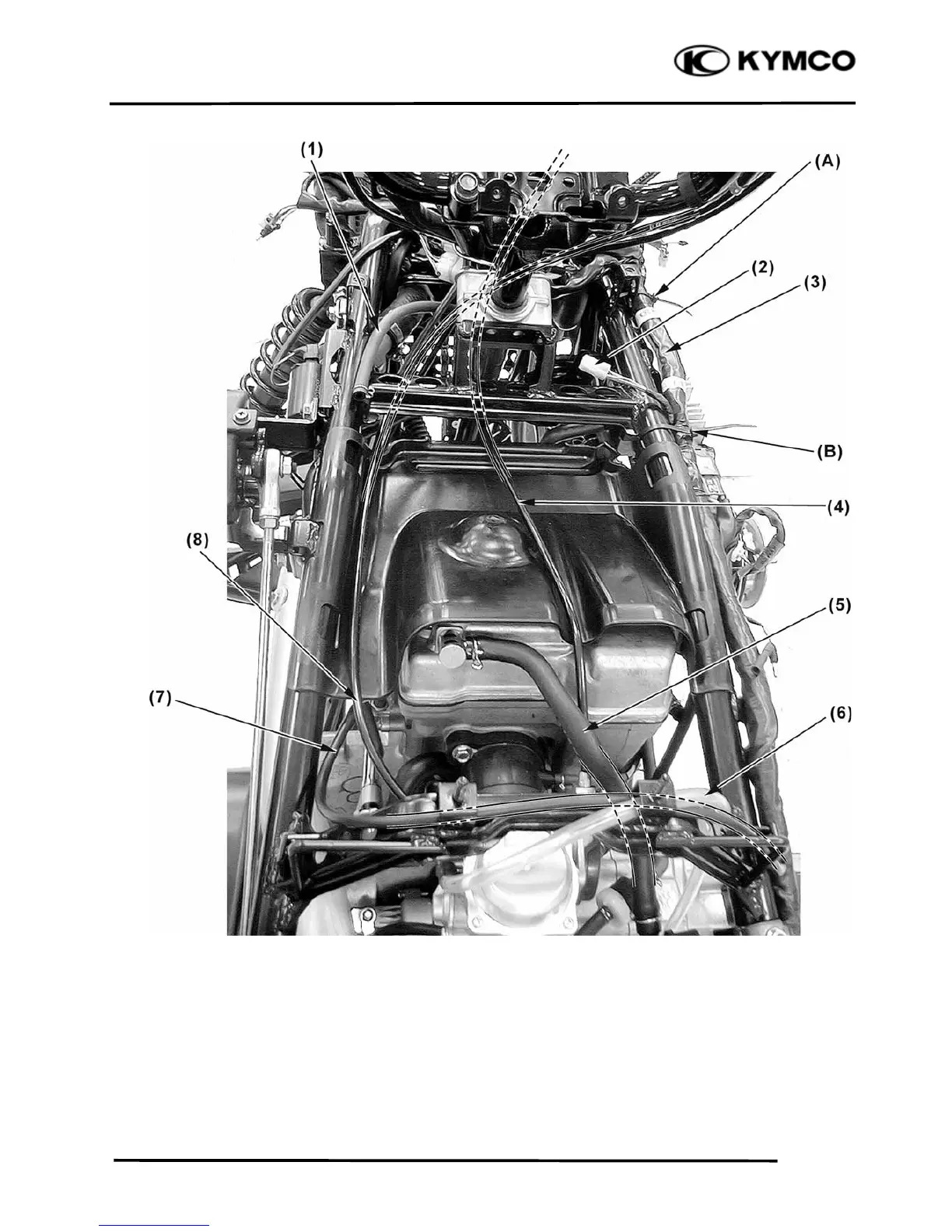

(1) Fuel tank flow hose (connect the fuel tank cover, Note) (5) Crankcase breather hose
(2) Hazard connector (ON ROAD) (6) Over flow (carburetor)
(3) Harness wire (7) Water temperature sensor wire
(4) Throttle cable (8) Choke cable
(A) Pass the harness wire through the band.
(B) Pass the harness wire through the band.
Note: The fuel tank flow hose may locate the frame right side for some model.
To Next Page
