1. GENERAL INFORMATION
1-25
MXU 500

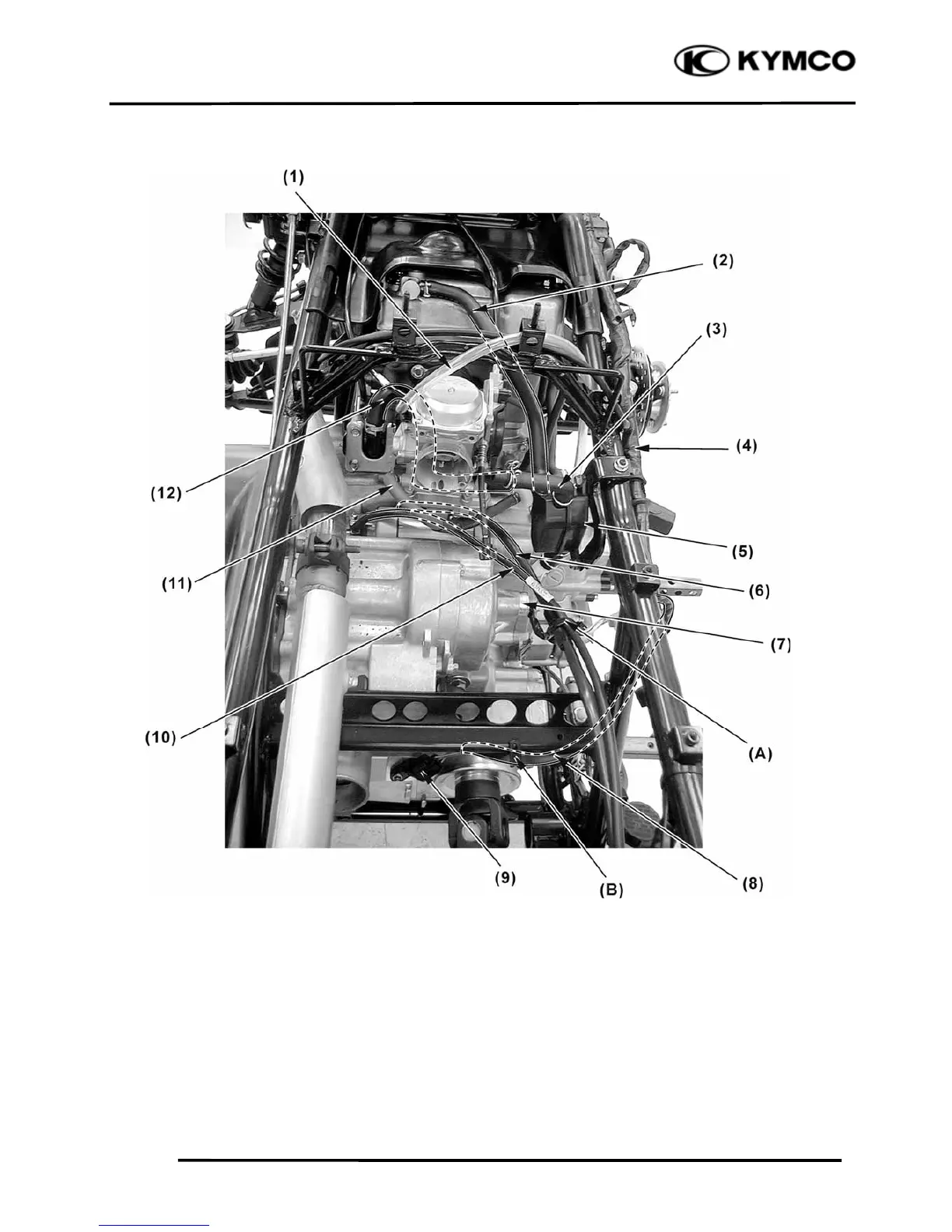

(1) Over flow (carburetor) (7) Gear position light switch
(2) Crankcase breather hose (8) Speed sensor wire
(3) Crankcase breather hose (9) Speed sensor
(4) Harness wire (10) Engine ground cable
(5) Crankcase breather hose joint (11) Fuel hose
(6) Starter motor cable (12) AICV air supply hose
(A) Pass the starter motor cable, engine ground cable and gear position light wire through the band.
(B) Pass the speed sensor wire through the band.
To Next Page
