1. GENERAL INFORMATION
1-26
MXU 500

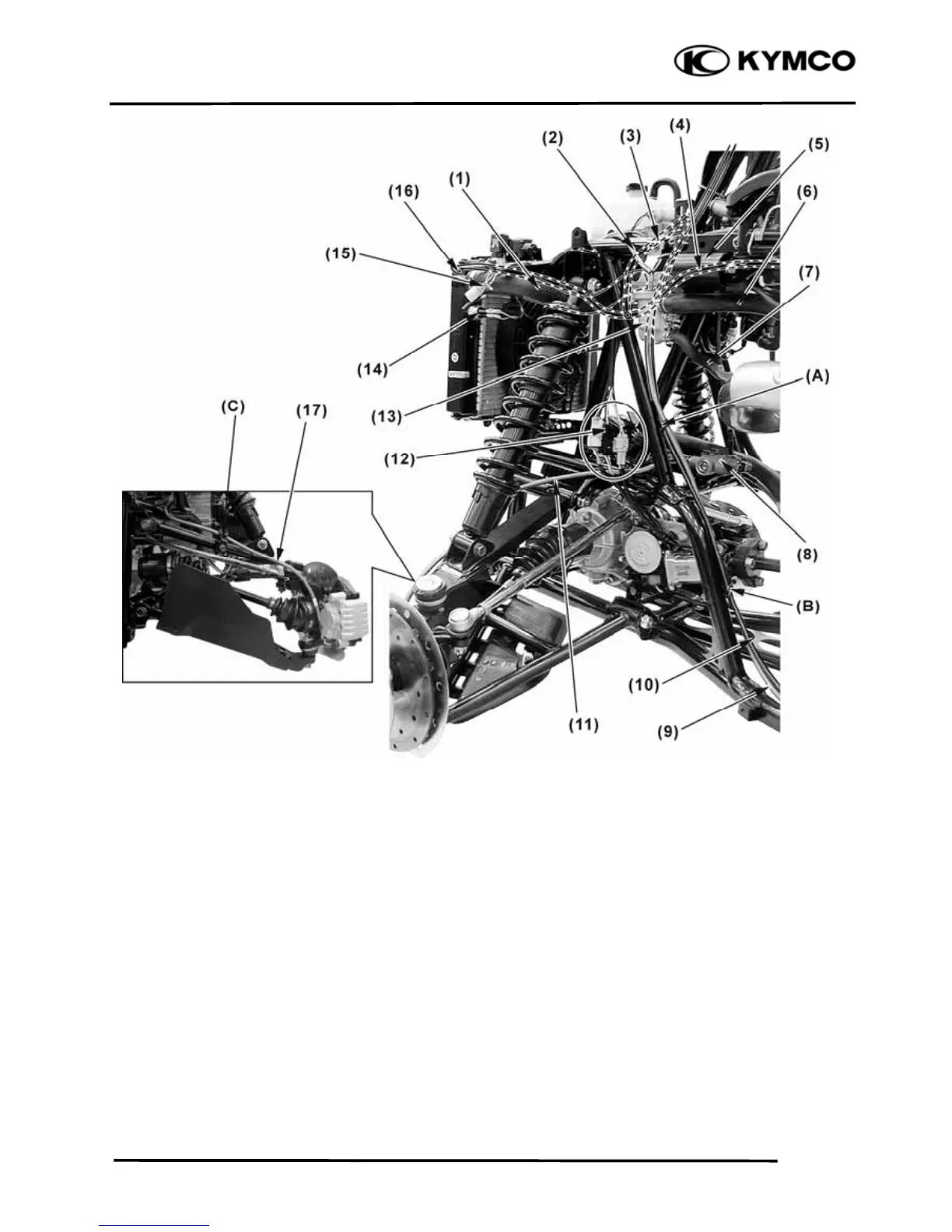

(1) Upper radiator hose (10) Rear parking brake cable (ON ROAD)
(2) Ignition coil wire (11) Front brake hose
(3) Air bleed hose (12) 2WD /4WD start switch//2WD/4WD motor connectors
(4) Air bleed hose (13) Thermostat
(5) Ignition coil (14) Fan motor switch
(6) Water hose (15) Headlight connector
(7) Water bypass hose Left front turn signal light connectors (ON ROAD)
(8) Delay valve (ON ROAD) (16) Air bleed hose
(8) Brake fluid joint (OFF ROAD) (17) Front brake hose
(9) Rear brake hose (Brake lever)
(A) Pass the rear parking cable (ON ROAD) and rear brake hose through the guide.
(B) Pass the rear parking cable (ON ROAD) and rear brake hose through the guide.
(C) Pass the front brake hose through the guide.
To Next Page
