1. GENERAL INFORMATION
1-27
MXU 500

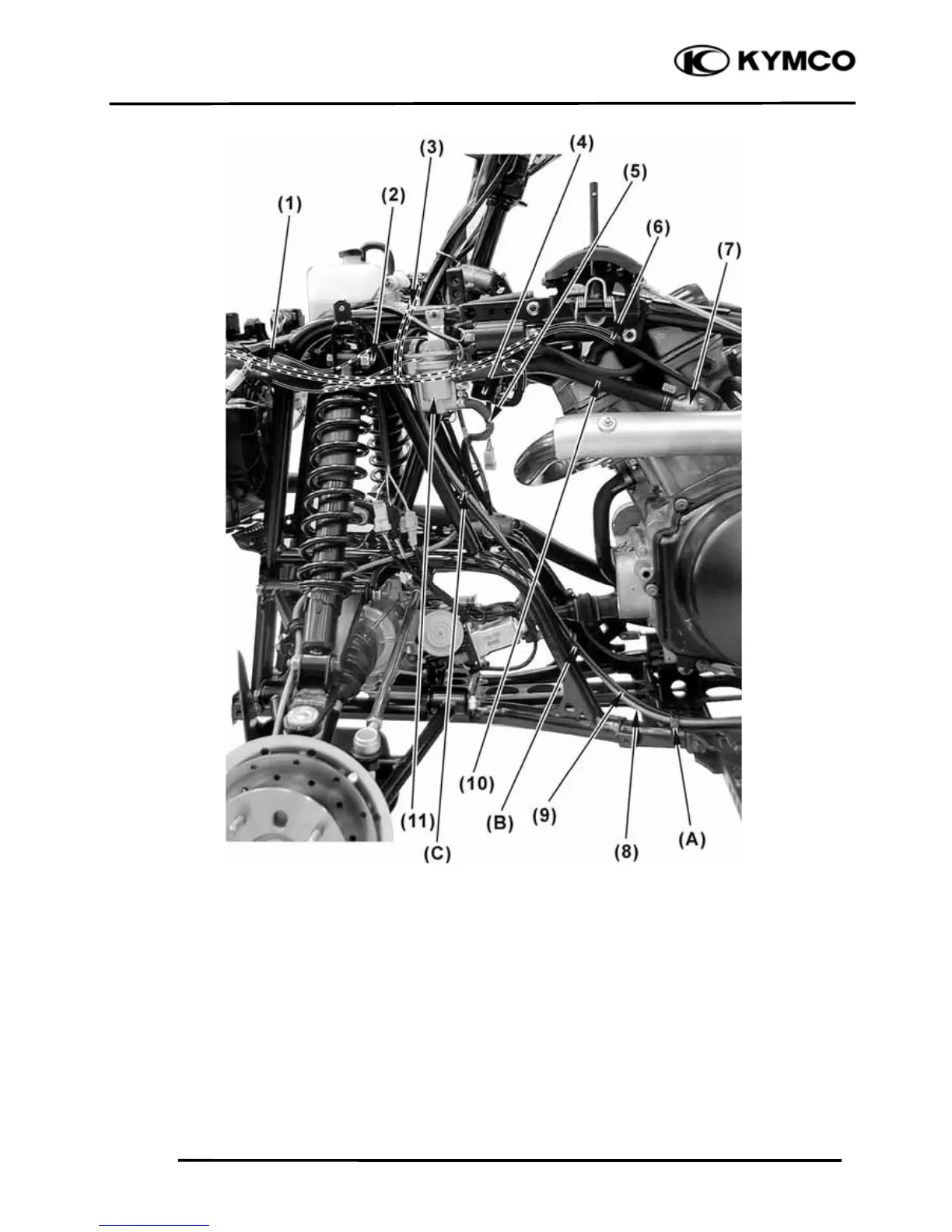

(1) Air bleed hose (7) Water joint
(2) Upper radiator hose (8) Rear brake hose (Brake lever)
(3) Air bleed hose (9) Rear parking brake cable (ON ROAD)
(4) AICV control solenoid valve (10) Water hose
(5) Water bypass hose (11) Thermostat
(6) Air bleed hose
Pass the rear parking brake and rear brake hose through the guide (A), (B) and (C).
