1. GENERAL INFORMATION
1-28
MXU 500

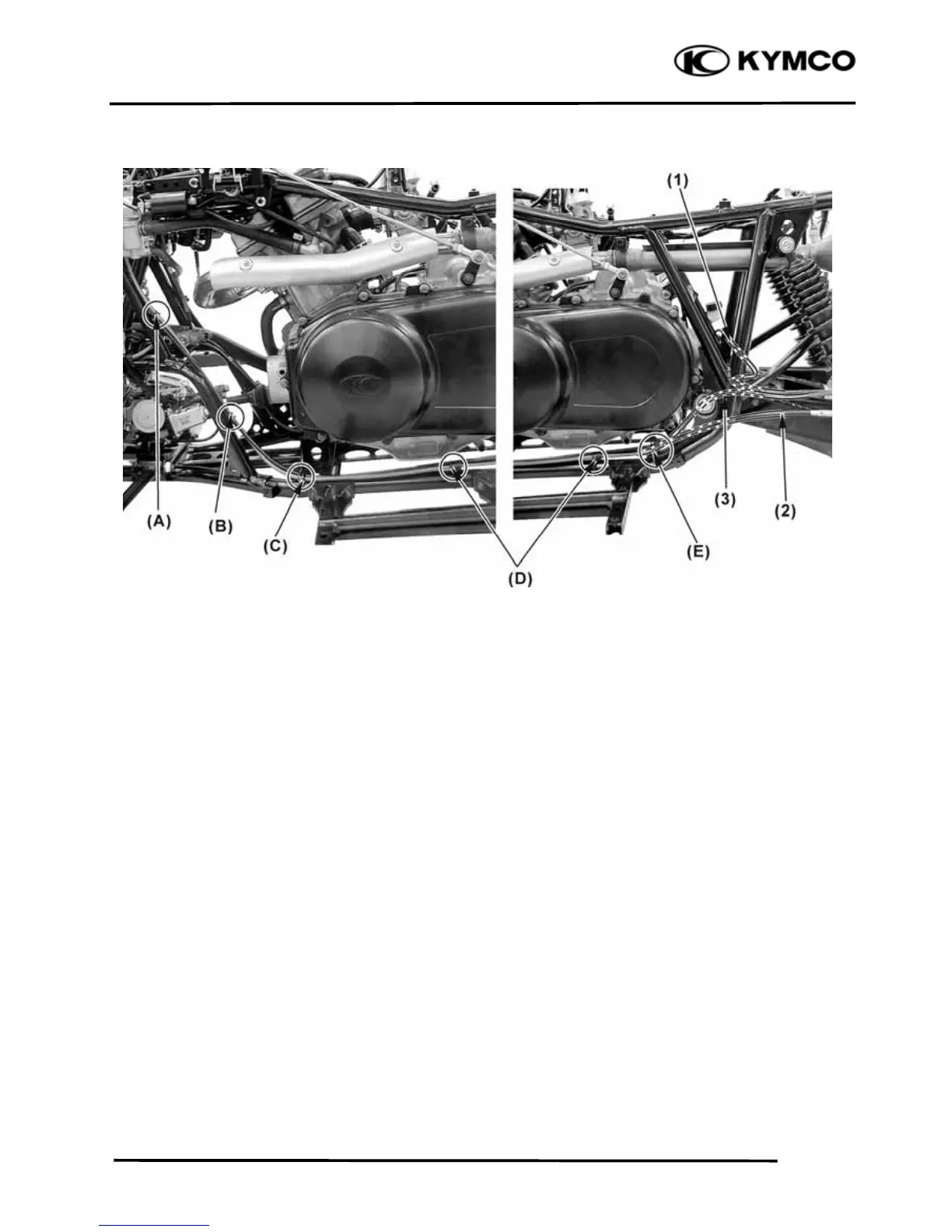

(1) Rear brake hose (Brake pedal) (3) Rear brake hose (Brake lever)
(2) Rear parking brake cable (ON ROAD)
Ɣ Pass the rear parking brake cable (ON ROAD) and rear brake hose (Brake lever) through the guide
(A), (B), (C), band (D) and guide (E).
