1. GENERAL INFORMATION
1-29
MXU 500

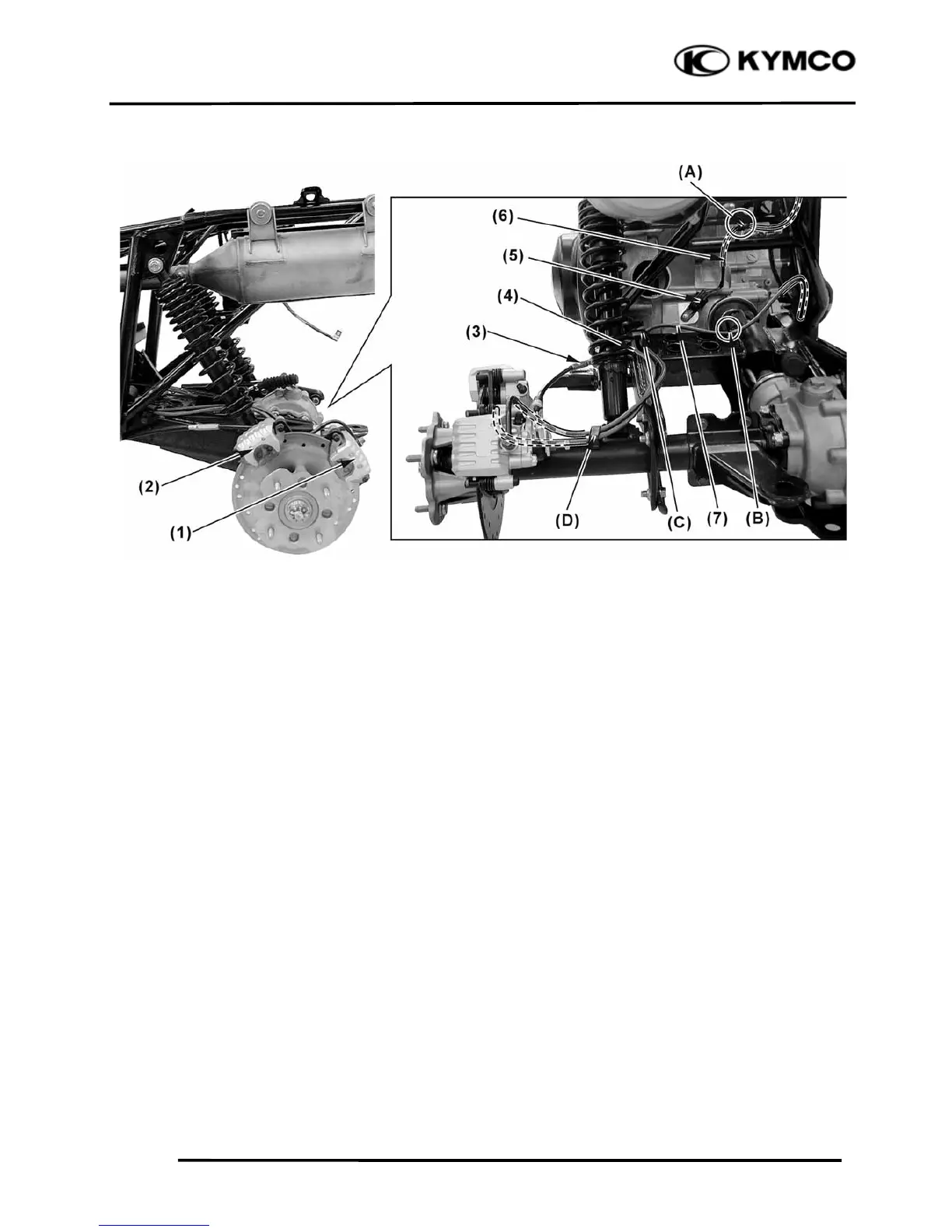

(1) Rear caliper (Brake pedal) (5) Speed sensor
(2) Rear caliper (Brake lever) (6) Speed sensor wire
(3) Rear parking brake cable (ON ROAD) (7) Rear brake hose (Brake pedal)
(4) Rear brake hose (Brake lever)
(A) Pass the speed sensor wire through the guide.
(B) Pass the rear brake hose (Brake pedal) through the guide.
(C) Pass the rear brake hose (Brake pedal) and rear brake hose (Brake lever) through the guide.
(D) Pass the rear brake hose (Brake pedal) and rear brake hose (Brake lever) through the guide.
