1. GENERAL INFORMATION
1-30
MXU 500

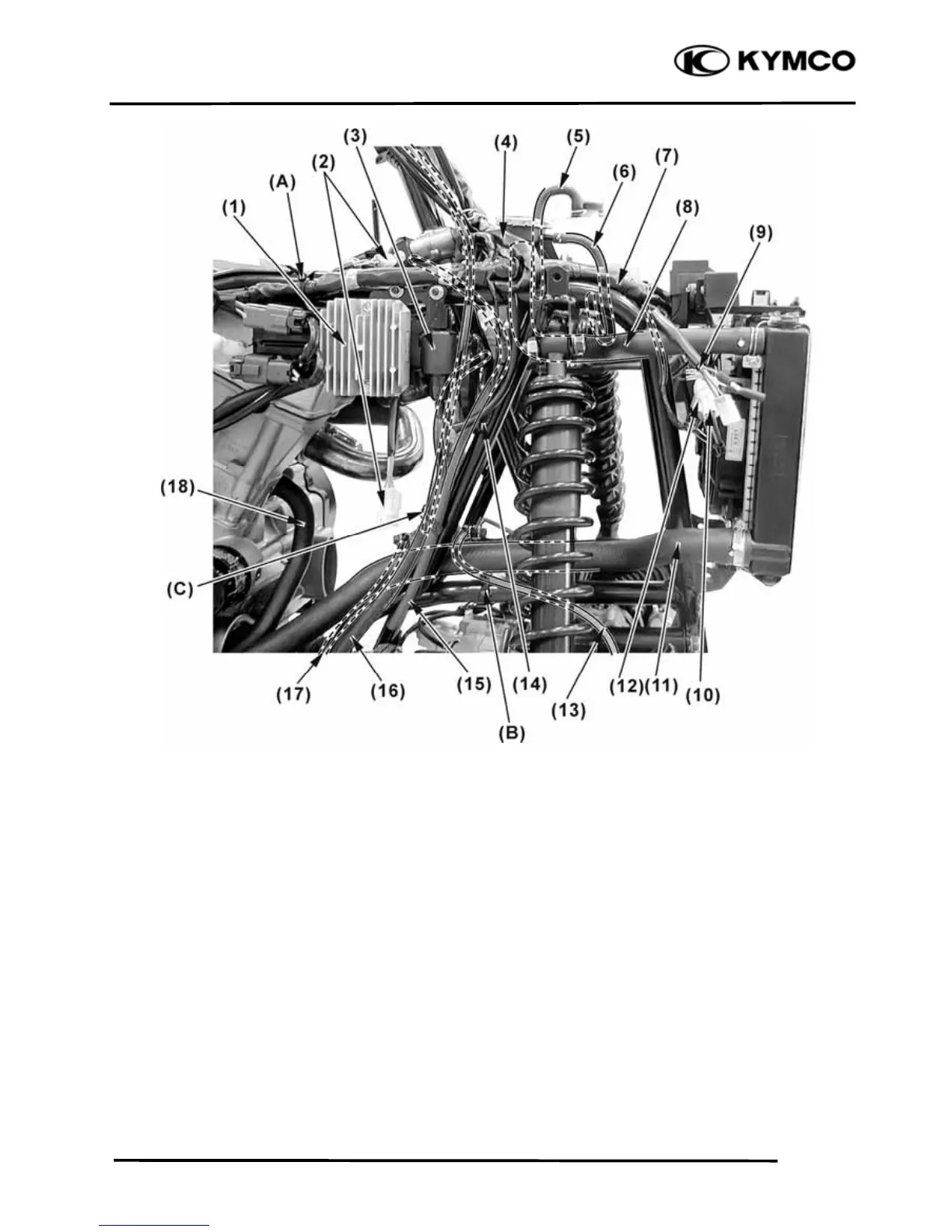

(1) Regulator/Rectifier (10) Fan motor connector
(2) Hazard connector (ON ROAD) (11) Low radiator hose
(3) Flasher relay (ON ROAD) (12) EMI filter
(4) Instrument wire (13) Front brake hose
(5) Over flow hose (reserve tank) (14) Horn (ON ROAD)
(6) Siphon hose (15) Fuel flow hose
(7) Harness wire (16) Water bypass hose
(8) Coolant filler hose (17) Combined brake hose ( ON ROAD)
(9) Headlight connector (18) water hose
Right front turn signal light connectors (ON ROAD)
(A) Pass the harness wire through the band.
(B) Pass the front brake hose through the guide.
(C) Pass the fuel flow hose and water bypass hose through the guide.
To Next Page
