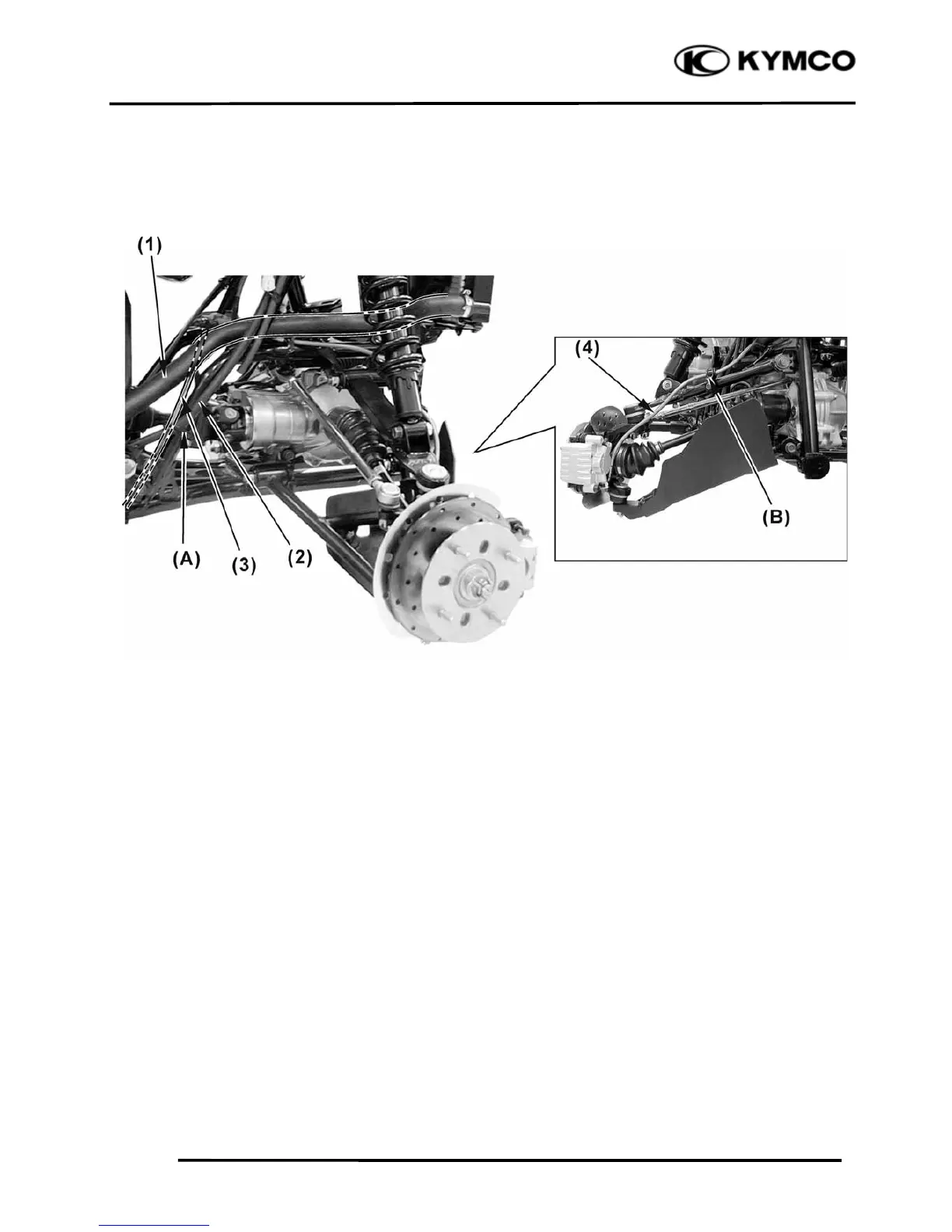

(1) Low radiator hose (3) Combined brake hose (ON ROAD)
(2) Water bypass hose (4) Front brake hose
(A) Pass the front brake hose (combined) and water bypass hose through the guide.
(B) Pass the front brake hose through the guide.
