1. GENERAL INFORMATION
1-32
MXU 500

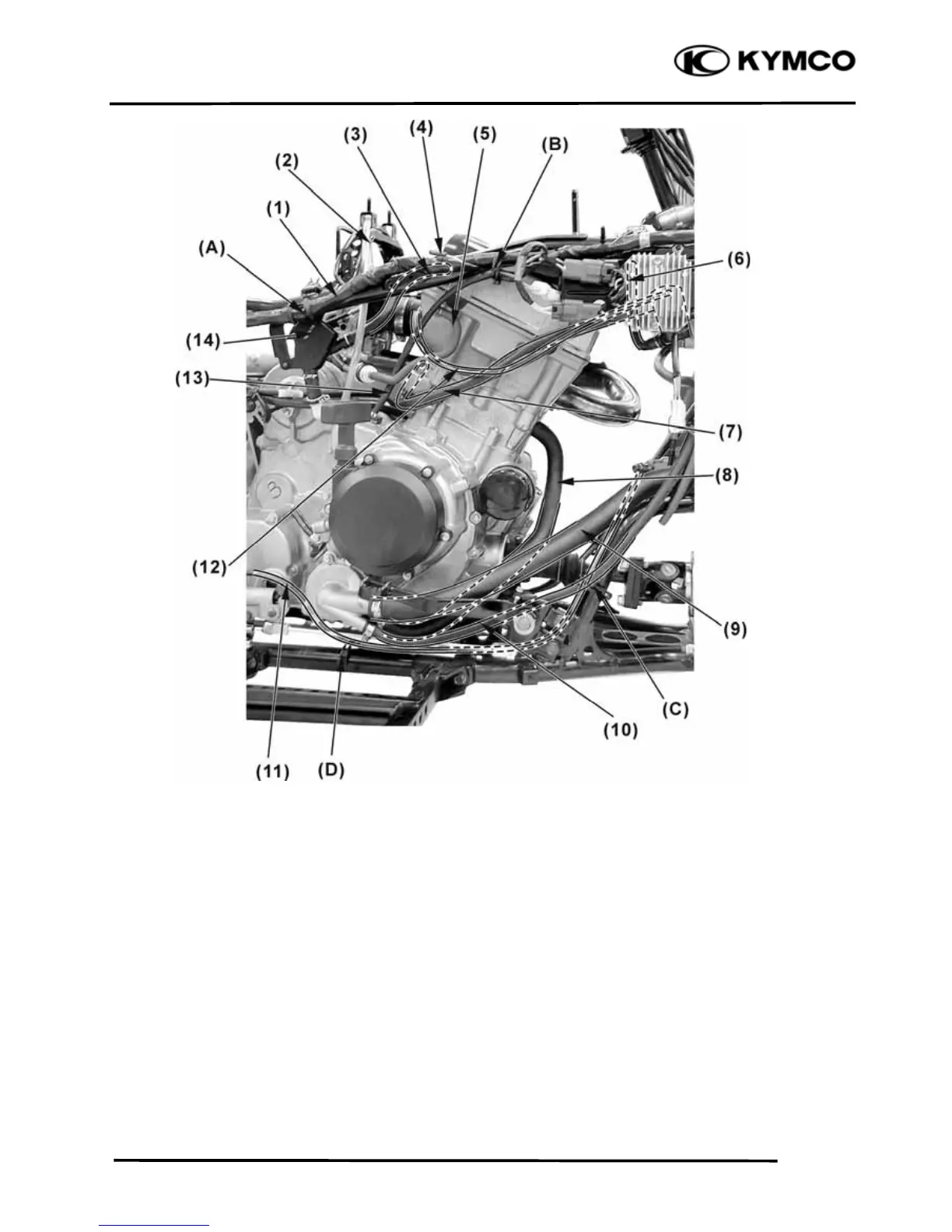

(1) Harness wire (8) Water hose
(2) Over flow (carburetor) (9) Low radiator hose
(3) Crankcase breather hose (10) Water bypass hose
(4) Fuel unit connectors (11) Combined brake hose (ON ROAD)
(5) Fuel hose (12) AICV vacuum hose (Note)
(6) AICV air supply hose (13) A.C.G. wire
(7) AICV air supply hose (Note) (14) Crankcase breather housing
(A) Pass the harness wire through the guide.
(B) Pass the A.C.G. wire through the guide.
(C) Pass the combined brake hose (ON ROAD) and water bypass hose through the guide.
(D) Pass the combined brake hose (ON ROAD) through the guide.
Note: Pass the AICV air supply hose and AICV vacuum hose through the guide (B).
