1. GENERAL INFORMATION
1-33
MXU 500

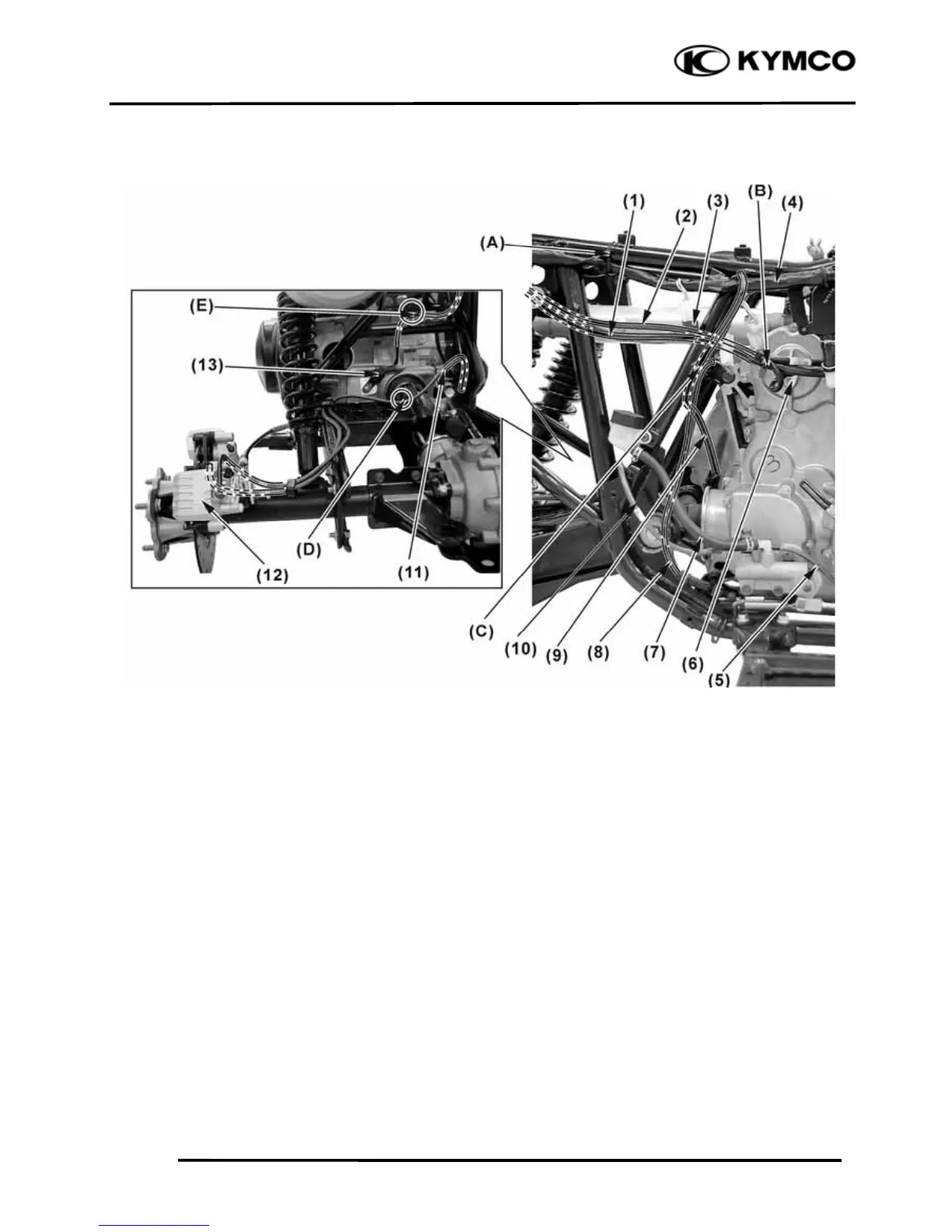

(1) Starter motor cable (8) Brake light switch
(2) Engine ground cable (9) Speed sensor wire
(3) Clutch diode (10) Rear brake hose (Brake pedal)
(4) Harness wire (11) Rear brake hose (Brake pedal)
(5) Combined brake hose (ON ROAD) (12) Rear caliper (Brake pedal)
(6) Gear position light switch (13) Speed sensor
(7) Brake fluid filler hose
(A) Pass the harness wire through the band.
(B) Pass the gear position light switch wire, starter motor cable and engine ground cable through the
band.
(C) Pass the speed sensor wire and brake light switch wire through the guide.
(D) Pass the rear brake hose (Brake pedal) through the guide.
(E) Pass the speed sensor wire through the guide.
