1. GENERAL INFORMATION
1-34
MXU 500

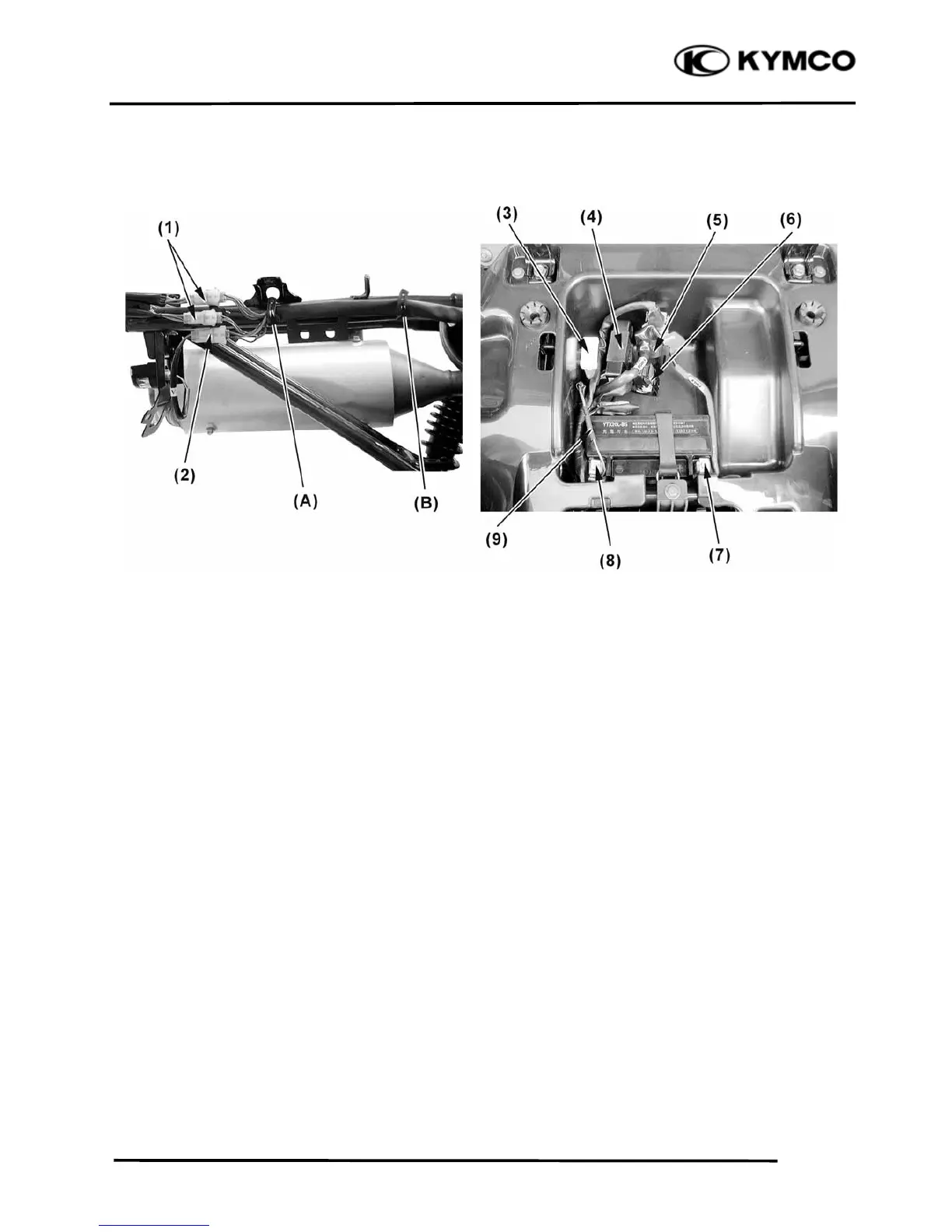

(1) Taillight/Brake light/Rear turn signal light connectors (OFF ROAD)
(1) Taillight/Brake light/Rear turn signal light connectors (ON ROAD)
(2) License light connector (ON ROAD)
(3) Fuse box
(4) Ignition unit
(5) Starter MAG
(6) Starter relay
(7) Positive terminal lead
(8) Negative terminal lead
(9) Frame ground wire
Ɣ Pass the harness wire through the guide (A) and (B).
