2. FRAME COVERS/EXHAUST MUFFLER
2-9
MXU 500

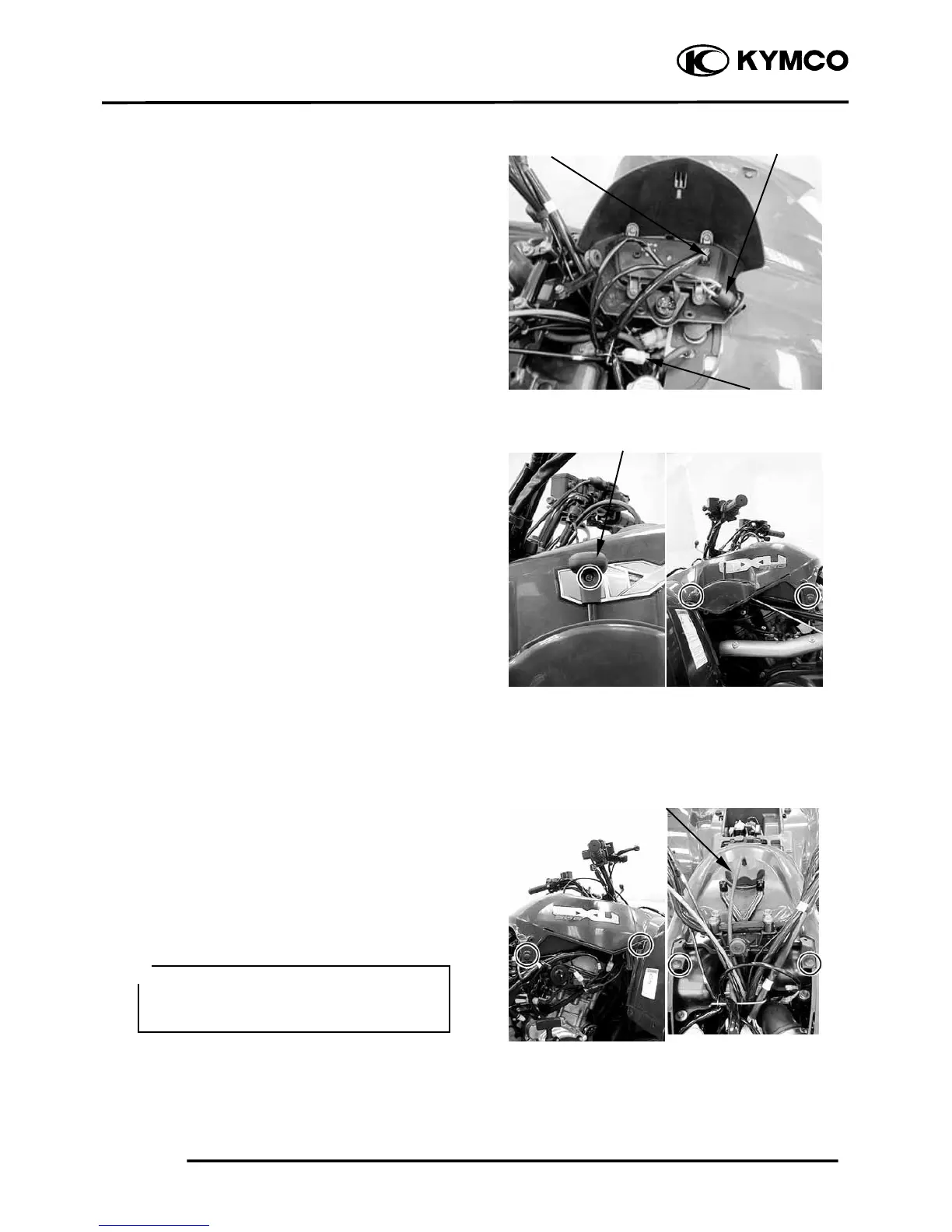

Disconnect the ignition switch, instrument
and accessory socket connectors, then
remove the meter cover.
Installation is in the reverse order of
removal.
FUEL TANK COVER
REMOVAL/INSTALLATION
Remove the seat (page 2-4), front center
cover (page 2-8), right/left footboards (page
2-7) and right/left side covers (page 2-8).
Remove a bolt and then remove drive select
grip.
Remove the two fasteners from fuel tank
cover left side.
Remove the two fasteners from fuel tank
cover right side.
Remove the two fasteners from fuel tank
cover front side.
Remove the fuel tank cap by turning it
counterclockwise and fuel tank seal, then
remove the fuel tank cover.
Installation is in the reverse order of
removal.
Ignition Switch Connecto
r
Instrument Connector Accessory Socke
t
Ct
Drive Select Grip
Fuel Tank Cap/Seal
Put on the fuel tank cap after removing
the cover to prevent duct, mud, etc. from
entering the fuel tank
＊
