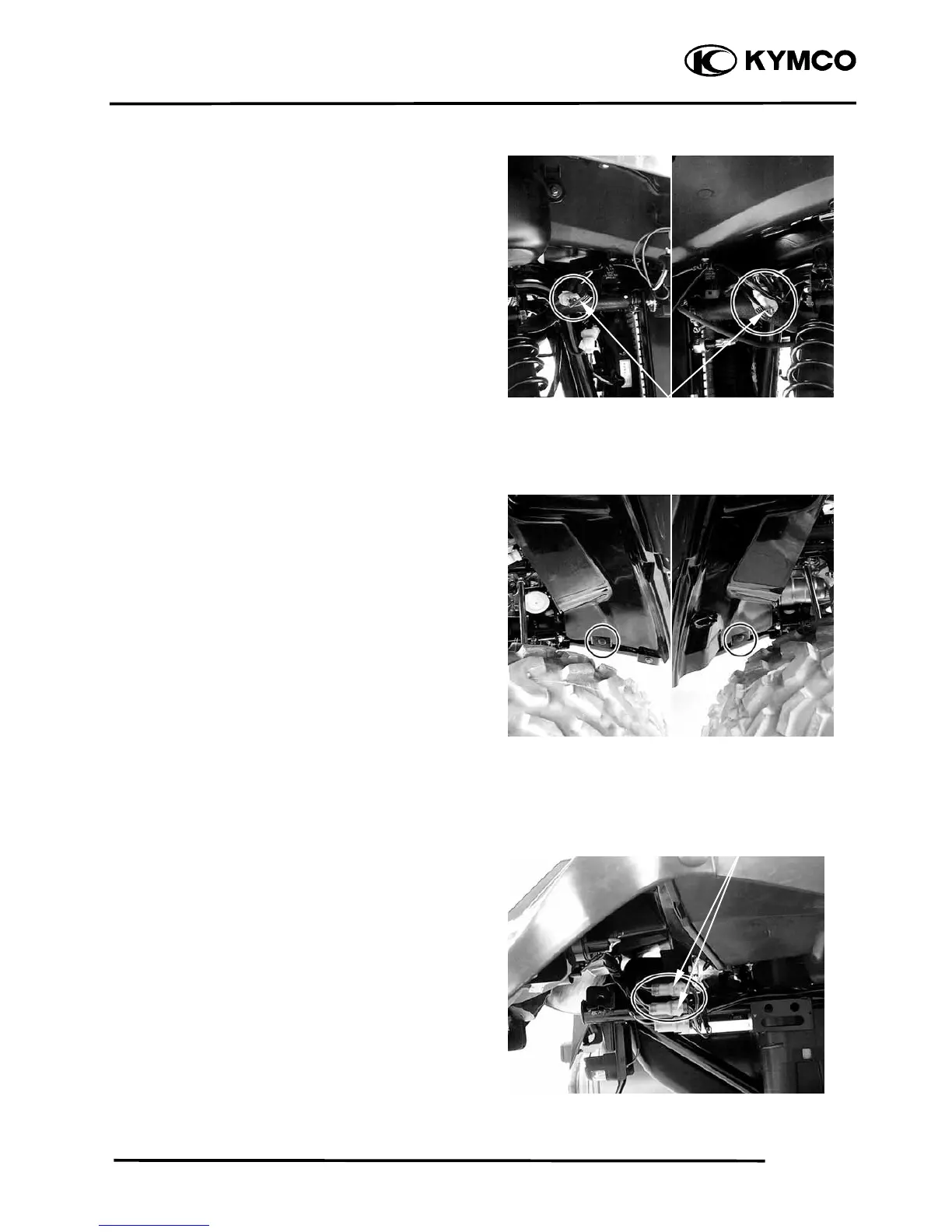

FRONT FENDER
REMOVAL/INSTALLATION
Remove the seat (page 2-4), front cargo
rack (page 2-5), front carrier (page 2-6),
front center cover (page 2-8), right/left
footboards (page 2-7), right/left side covers
(page 2-8) and fuel tank cover (page 2-9).
Disconnect the right/left turn signal light
connectors (ON ROAD) and headlight
connectors.
Remove the two fasteners from front fender
right and left side front fender, then remove
the front fender.
Installation is in the reverse order of
removal.
REAR FENDER
REMOVAL/INSTALLATION
Remove the seat (page 2-4), rear cargo rack
(page 2-6), right/left footboards (page 2-7)
and right/left side covers (page 2-8).
Disconnect the right and left taillight/turn
signal light connectors (ON ROAD).
Disconnect the right and left taillight/brake
light connectors (OFF ROAD).
Turn Signal Lights/Taillights Connectors
Turn Signal Lights/Headlights Connectors.
