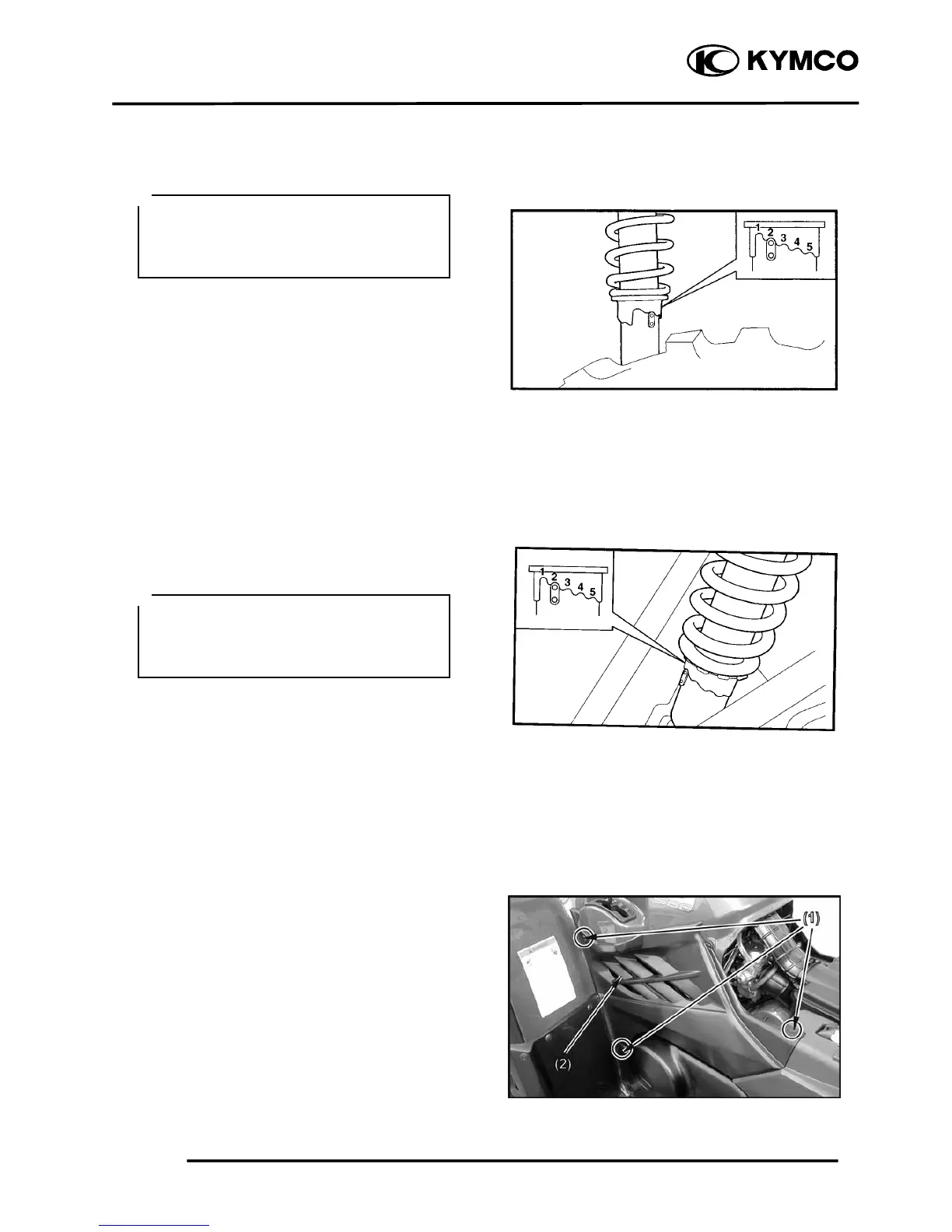

3. INSPECTION/ADJUSTMENT
3-27
MXU 500
FRONT SHOCK ABSORBER
Adjustment
Turn the adjuster to increase or decrease the
spring preload.
Standard position: 2
Minimum (Soft) position: 1
Maximum (Hard) position: 5
REAR SHOCK ABSORBER
Adjustment
Turn the adjuster to increase or decrease the
spring preload.
Standard position: 2
Minimum (Soft) position: 1
Maximum (Hard) position: 5
DRIVE SELECT LEVER
ADJUSTMENT
1. Turn the ignition switch is ON and make
sure the engine stop.
2. Remove 3 fasteners (1), then remove the
left side cover (2).
Always adjust both front shock absorbe
spring preload to the same setting.
Uneven adjustment can cause poor
handling and loss of stability.
＊
Always adjust both rear shock absorbe
spring preload to the same setting.
Uneven adjustment can cause poor
handling and loss of stability.
＊
