4. LUBRICATION SYSTEM
4-6
MXU 500

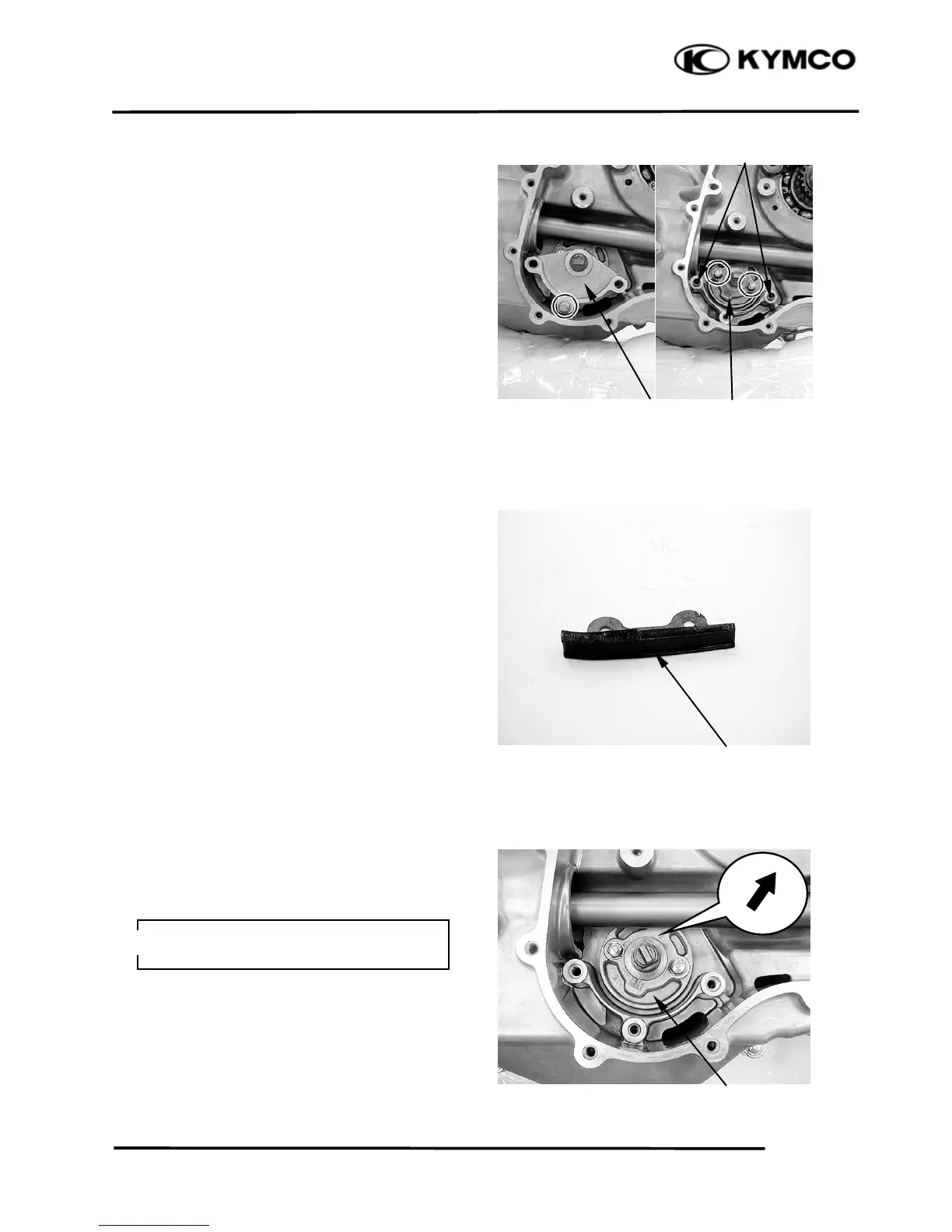

Remove a bolt and then remove the oil pump
holder.
Remove the two dowel pins.
Remove the two bolts and then remove the oil
pump.
INSPECTION
Oil pump drive chain guide
Inspect the drive chain slipper surface of the
drive chain guide for wear or damage.
INSTALLATION
Install the oil pump.
Holder Oil Pump
Dowel Pins
Slipper Surface
Oil Pump
Make sure the pump shaft rotates freely
and arrow on the oil pump is upside.
＊
To Next Page
