4. LUBRICATION SYSTEM
4-7
MXU 500

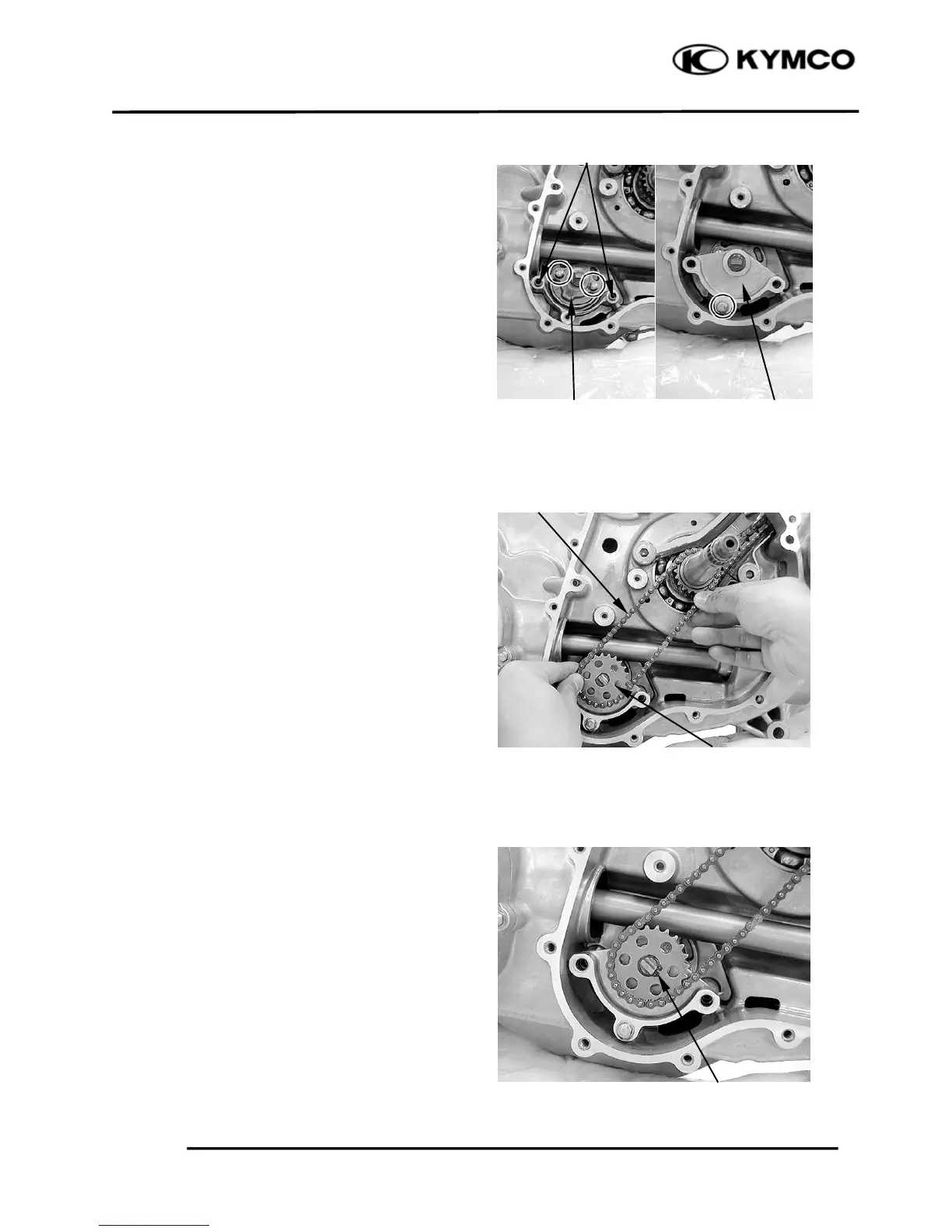

Install and tighten the two bolts securely.
Install two dowel pins
Install the holder, then install a bolt but do
not tighten.
Install the driven gear and drive chain.
Install the snap ring.
Driven Gear
Drive Chain
Snap Ring
Oil Pump Holder
Dowel Pins
