7. ENGINE REMOVAL/INSTALLATION
7-3
MXU 500

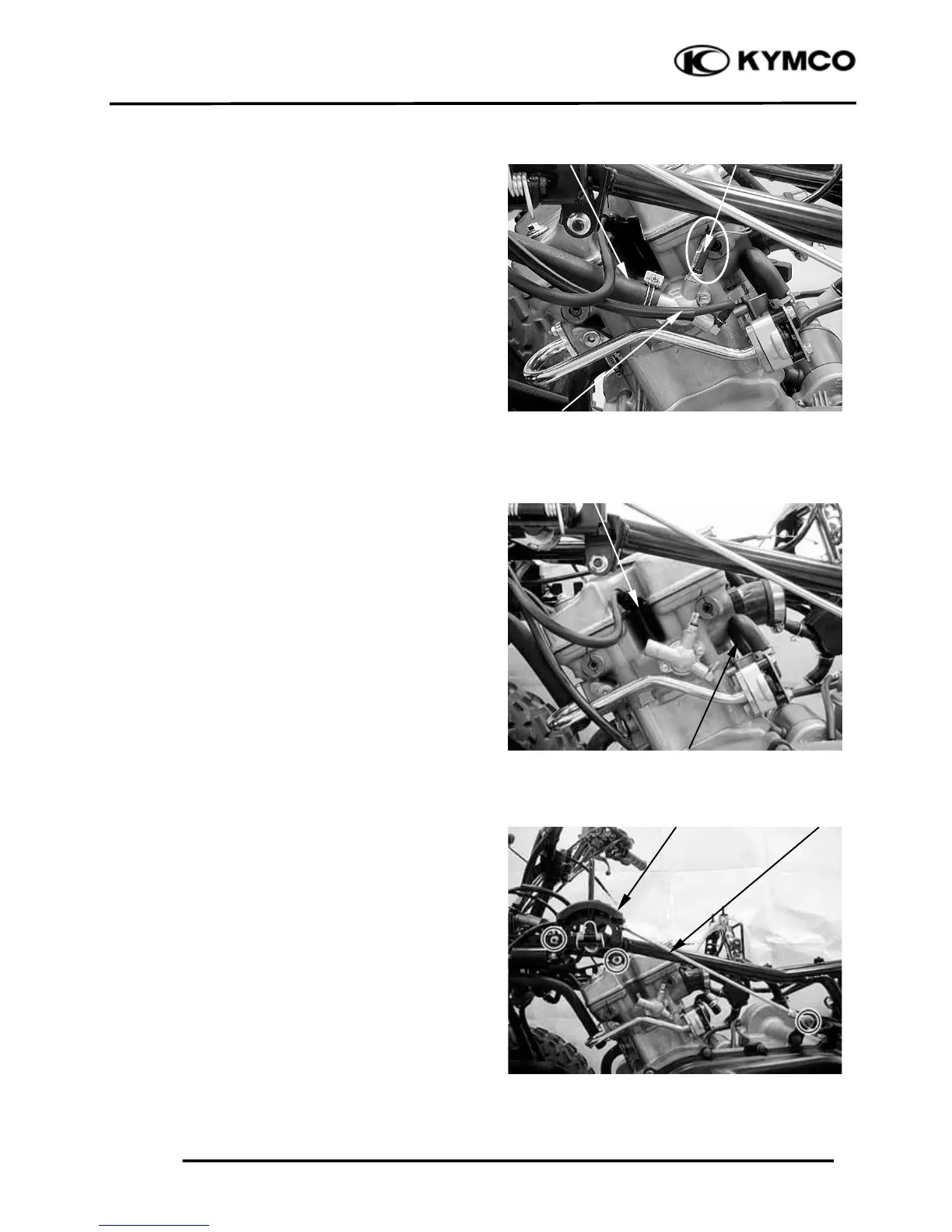

Disconnect the water hose, bleed hose and
water temperature sensor connectors from
water joint.
Remove the spark plug cap and disconnect
the AICV air supply hose from cylinder
head.
Remove the bolt/nut from drive select rod.
Remove the mounting nuts from the drive
select lever guide, then remove the guide
and rod.
Bleed Hose
Water Hose Temperature Sensor Connecto
To Next Page
