7. ENGINE REMOVAL/INSTALLATION
7-6
MXU 500

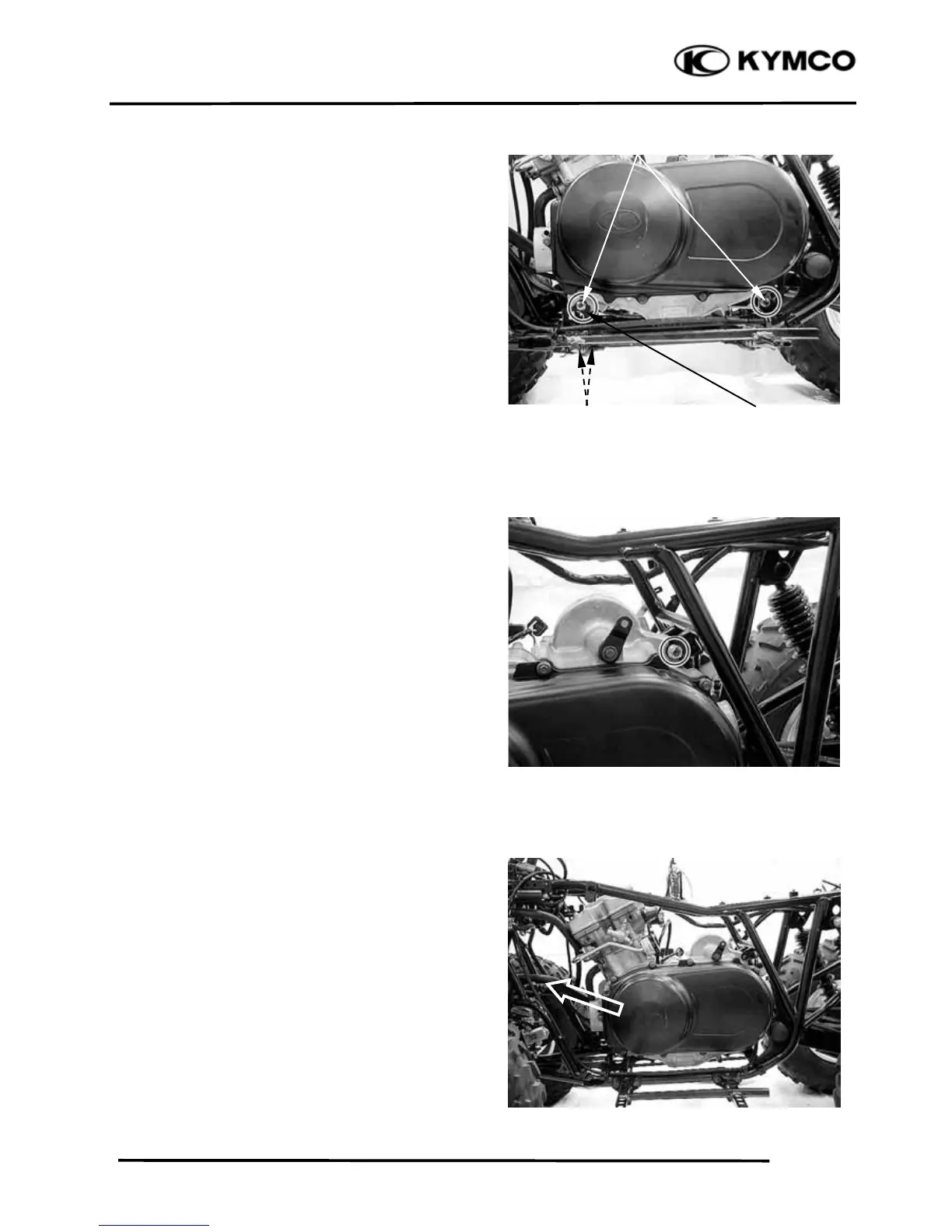

Remove the front lower engine mounting
bolt/nut.
Remove the four nuts under right and left
engine hangers, then remove the engine
hangers.
Remove the rear lower engine mounting
bolt/nut.
Remove the upper engine mounting
bolt/nut.
Rise the engine front side and move the
engine forward, then remove the engine
from the frame by disengaging the rear
drive gear case.
Lower Engine Mounting Bolt/Nu
t
Engine Hanger Nuts Engine Hange
r
