7. ENGINE REMOVAL/INSTALLATION
7-9
MXU 500

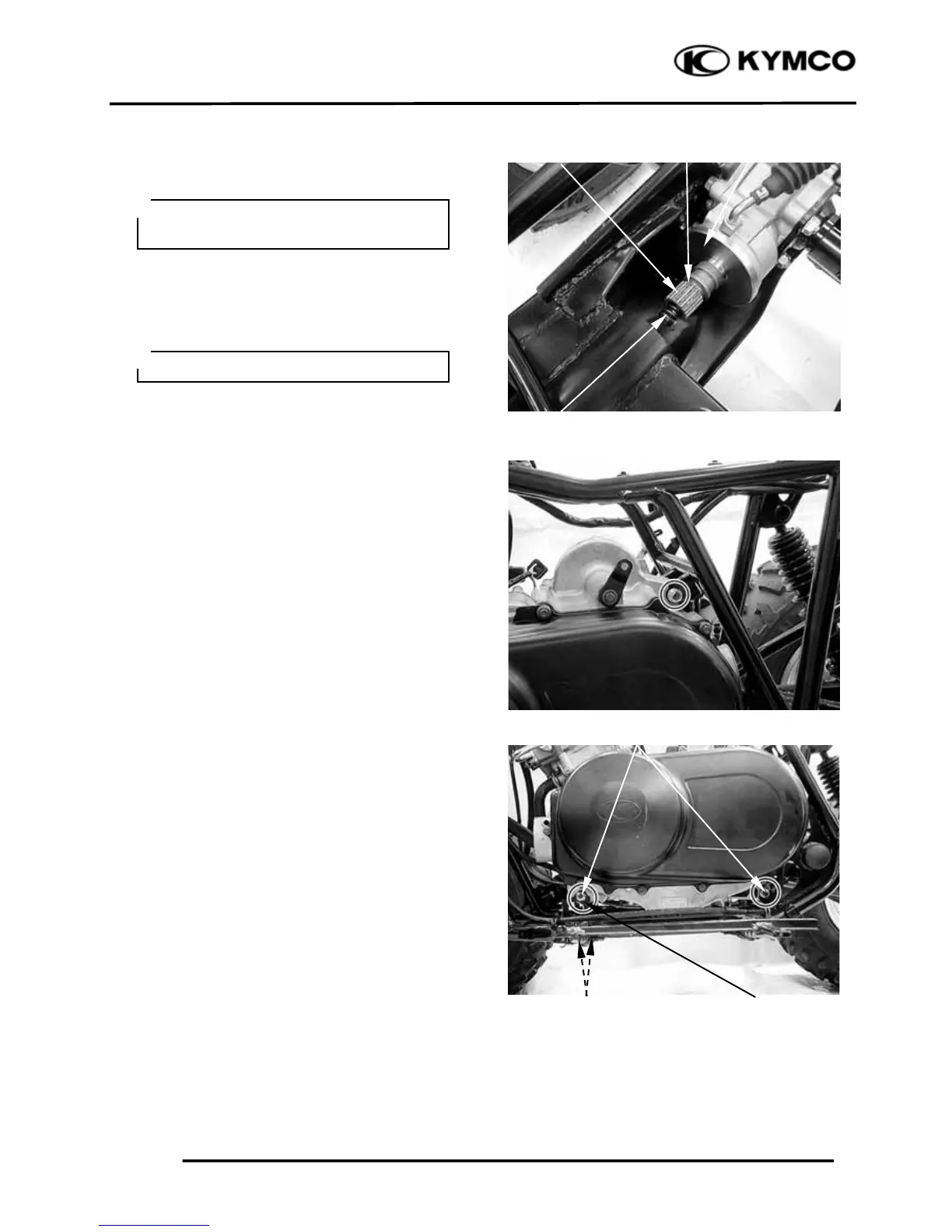

Install the compression spring into the
pinion gear.
Move the engine rearward and engage the
rear propeller shaft into the pinion gear.
Install the upper engine mounting bolt and
nut loosely.
Install the rear lower engine mounting bolt
and nut loosely.
Install the engine hangers and four engine
hanger nuts loosely.
Install the front lower engine mounting bolt
and nut loosely.
Tighten the four engine hanger nuts to the
specified torque.
Torque: 3.5 kgf-m (35 N-m, 25 lbf-ft)
Tighten the all engine mounting bolts and
nuts to the specified torque.
Torque: 6 kgf-m (60 N-m, 43.5 lbf-ft)
Apply grease Pinion Gea
r
Compression Spring
Apply lightweight lithium-soap base
grease to the pinion gear splines.
＊
Install the joint boot securely.
＊
Lower Engine Mounting Bolt/Nu
t
Engine Hanger Nuts Engine Hange
r
