8. CYLINDER HEAD/VALVES
8-21
MXU 500
Apply engine oil to cylinder head bolt (No.
10 – 13) threads.

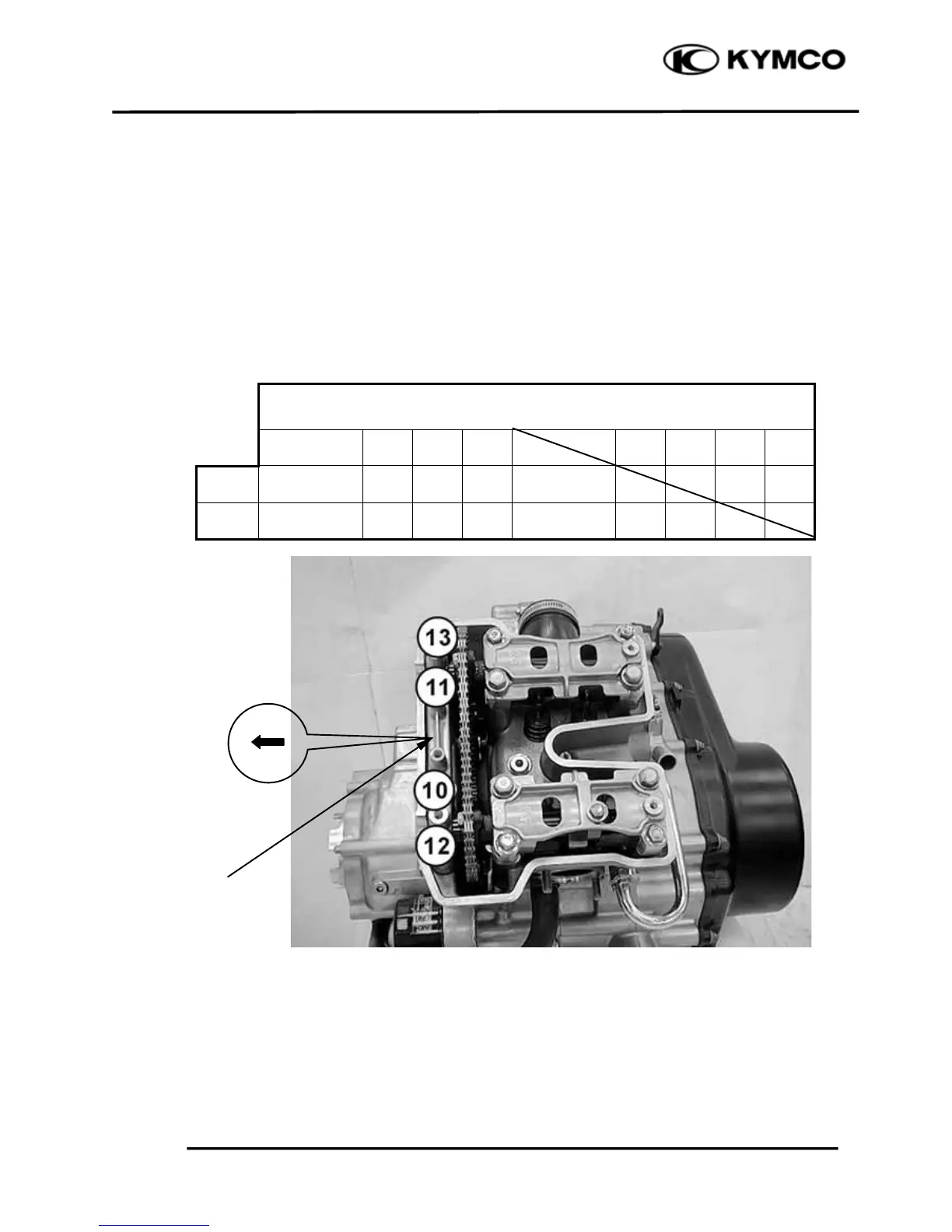

Install the common camshaft holder by arrow
mark facing outside.
Install and tighten the holder bolts (No. 10 –
13) in a crisscross pattern in five steps to the
specified torque as follow diagram.
“Arrow” Mark
Tighten the bolts to the specified torque in sequence
kgf-m (N-m, lbf-ft)
(10) (11) (12) (13)
Step 4 1.2 (12, 9) ←←←
Step 5 2.3 (23, 17) ←←←
To Next Page
