8. CYLINDER HEAD/VALVES
8-22
MXU 500

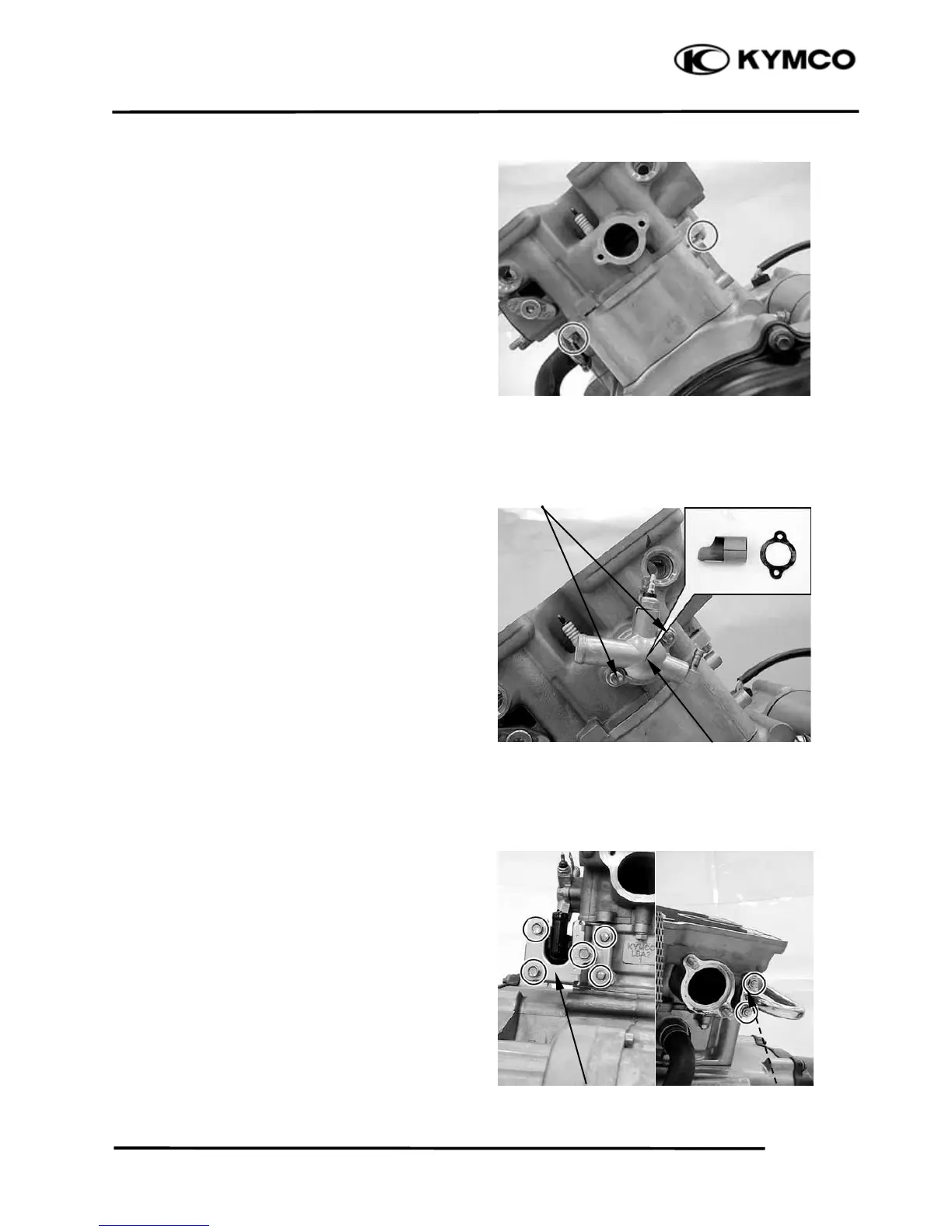

Install and tighten the two nuts under the
cylinder head to the specified torque.
Torque: 1 kgf-m (10 N-m, 7 lbf-ft)
Install the water stop collar, gasket and water
joint.
Install and tighten the two bolts to the
specified torque.
Torque: 1.2 kgf-m (12 N-m, 8.6 lbf-ft)
Install gasket and pair reed valve.
Install and tighten the five bolts and two nut
securely.
Pair Reed Valve Cover/Holder Gasket
Water Joint/Gasket/Water Stop Collar
Bolts
To Next Page
