10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
10-15
MXU 500

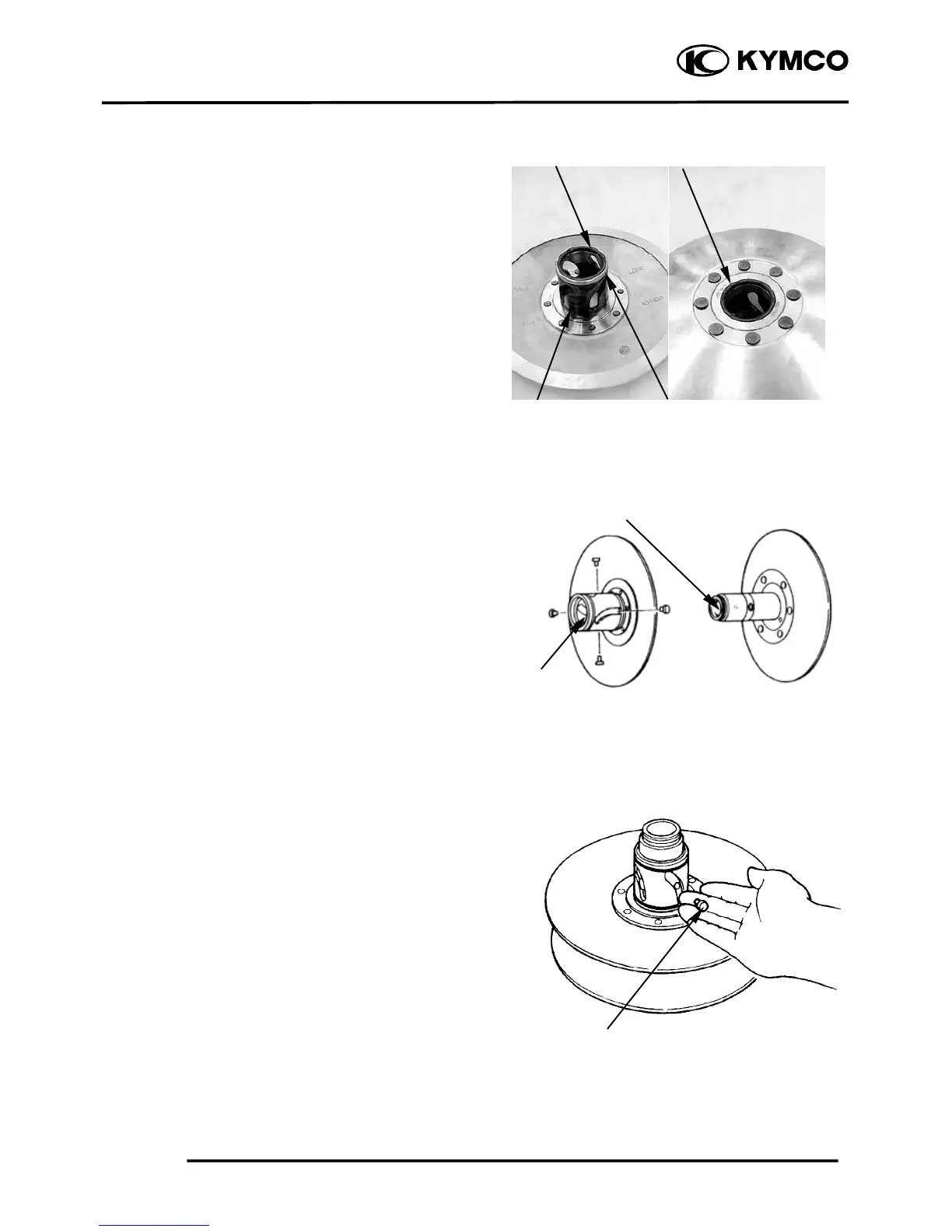

ASSEMBLY
Clean any oil from the drive belt sliding
surfaces on the driven face.
Apply grease to lips of the new dust seals
and install into the movable driven face.
Coat new O-rings with grease and install
them into the movable driven face grooves.
Install the movable driven face onto the
driven face.
Install the guide rollers and guide roller
pins.
Filling 8 g of grease to each guide groove.
Install the guide pins/rollers.
Grease
Grease
Guide Pins/Rollers
O-ring O-ring
Dust Seal Dust Seal
To Next Page
